| Place of Origin: | China |
|---|---|
| Brand Name: | Star merter |
| Model Number: | CWDZ902Y |
| Minimum Order Quantity: | 1PC |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 30000 Piece/Month |
| Measuring Element:: | Platinum Resistance Pt100 (1/3B Class) | Measurement Accuracy: | 1/3B Level |
|---|---|---|---|
| Measurement Range: | -50~180°C, -50~260°C | Output: | Pt100 |
| Highlight: | CWDZ902 Platinum Resistance Temperature Sensor,Platinum Resistance Temperature Sensor IP68 |
||

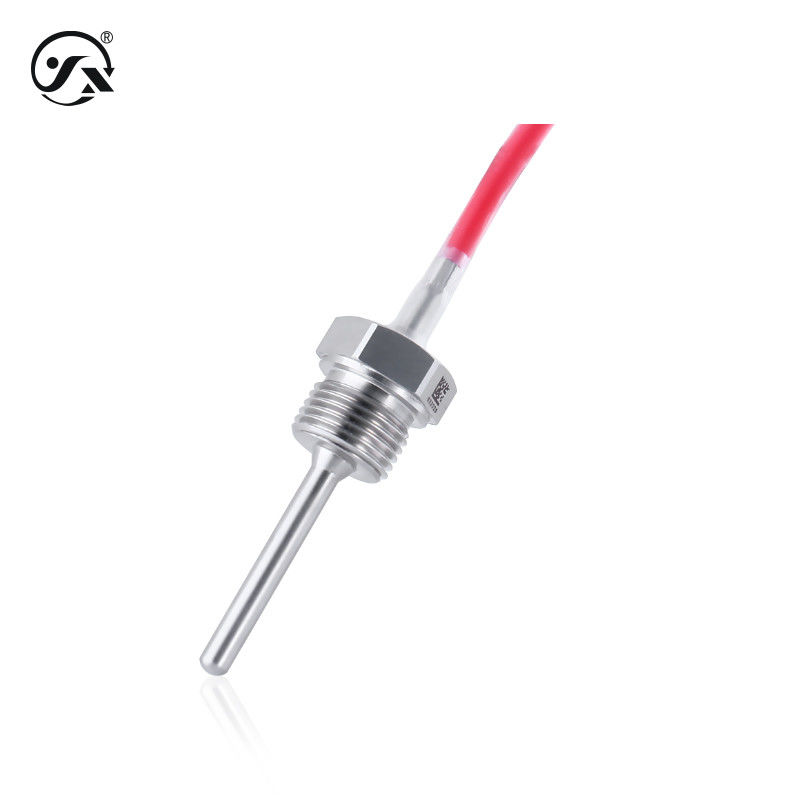

CWDZ902Y Platinum Resistance Temperature Sensor Refrigeration Units Heating Units Ovens Furnaces And Factories Etc
CWDZ902Y platinum resistance temperature sensor is suitable for measuring the temperature of gases, liquids and solids.
| Base parameters | |
| Measuring medium | Solid, liquid or gas (compatible with contact material) |
| Measuring range | -50～180℃,-50～260℃ |
| Measuring cell | 1*Pt100, 2*Pt100 (1/3B grade) |
| Response time | 18s (according to IEC60751, 0.4m/s wind speed, 10°C step) |
| Stable performance | ± 0.1% FS/year |
| Degree of protection | IP68 |
| Insulation resistance | ≥100MΩ,500VDC |
| Dielectric strength | 500VAC |

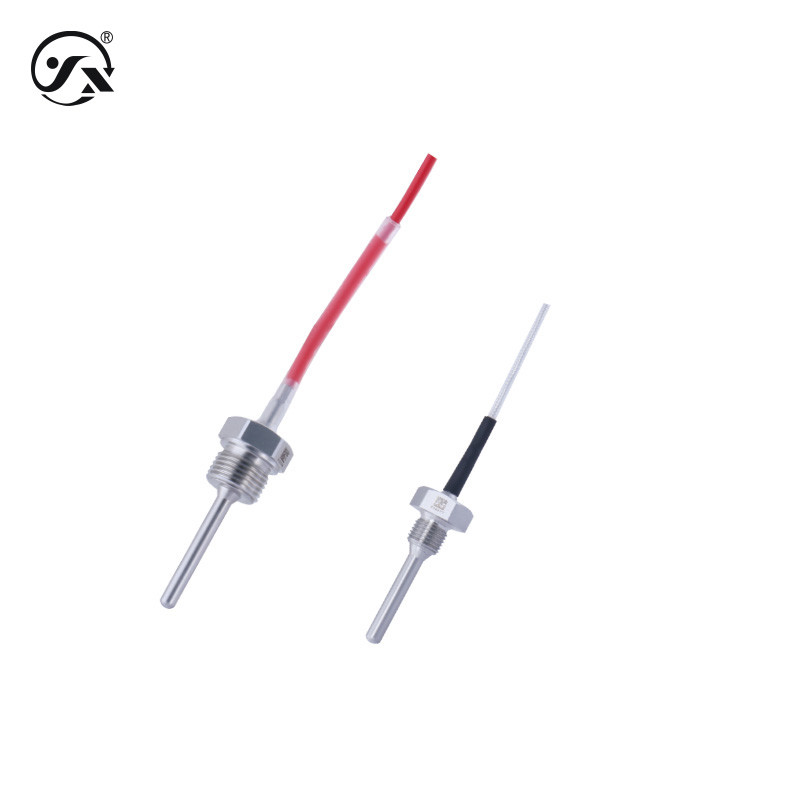

| Overall weight | G1/4 male thread≈ 36g (insertion depth is 17mm) G1/2 male thread≈ 71g (insertion depth is 17mm) Note: For every 10mm increase in insertion depth, the weight increases by 1g Silica gel silver-plated flexible wire (φ4mm) ≈2.6g/10mm PTFE shielded compensation cable (φ3.5mm) ≈2.55g /10mm |
| Overall material | |
| enclosure | 304 stainless steel |
| Cable | Silica gel silver-plated flexible wire (φ4mm) temperature resistance -50~180 °C PTFE shielded compensation cable (φ3.5mm) temperature resistance -50~260 °C |
| Mechanical stability | |
| Seismic performance | 10g(20… 2000Hz) conforms to IEC60068-2-6 standard |
| Impact resistance | 500g/ms conforms to IEC60068-2-27 standard |
