| Place of Origin: | China |
|---|---|
| Brand Name: | Star merter |
| Model Number: | C1Y |
| Minimum Order Quantity: | 1PC |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 30000 Piece/Month |
| Name: | C1 Armored Temperature Sensor | Measuring Element: | Platinum Resistance PT100 (1/3B Class) |
|---|---|---|---|
| Measuring Range: | 50~300°C, -200~300°C, -50~500°C | Output: | PT100 |
| Highlight: | C1 Armored Temperature Sensor,PT100 Armored Temperature Sensor |
||

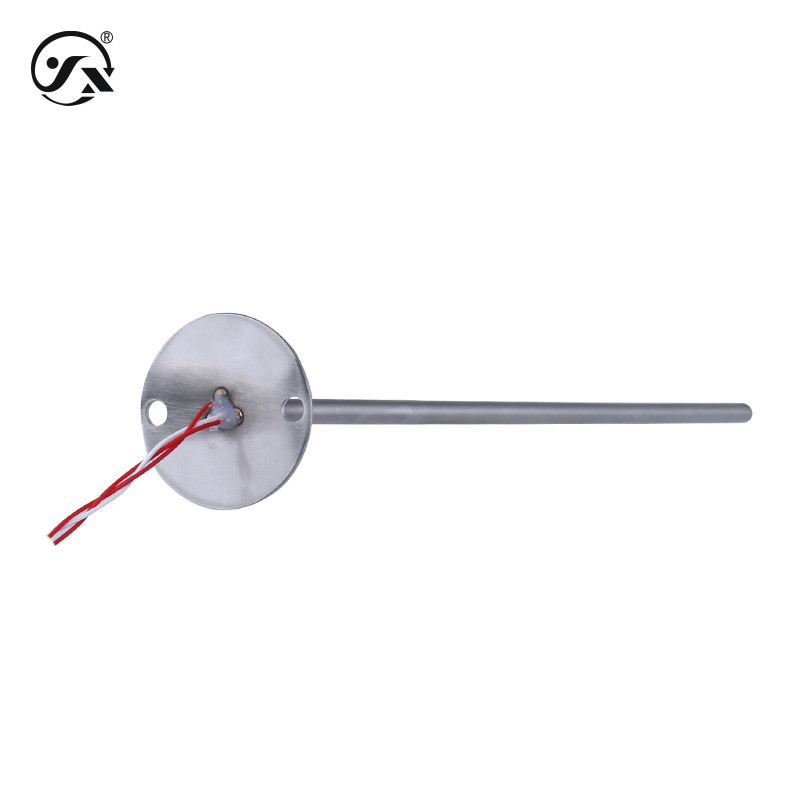

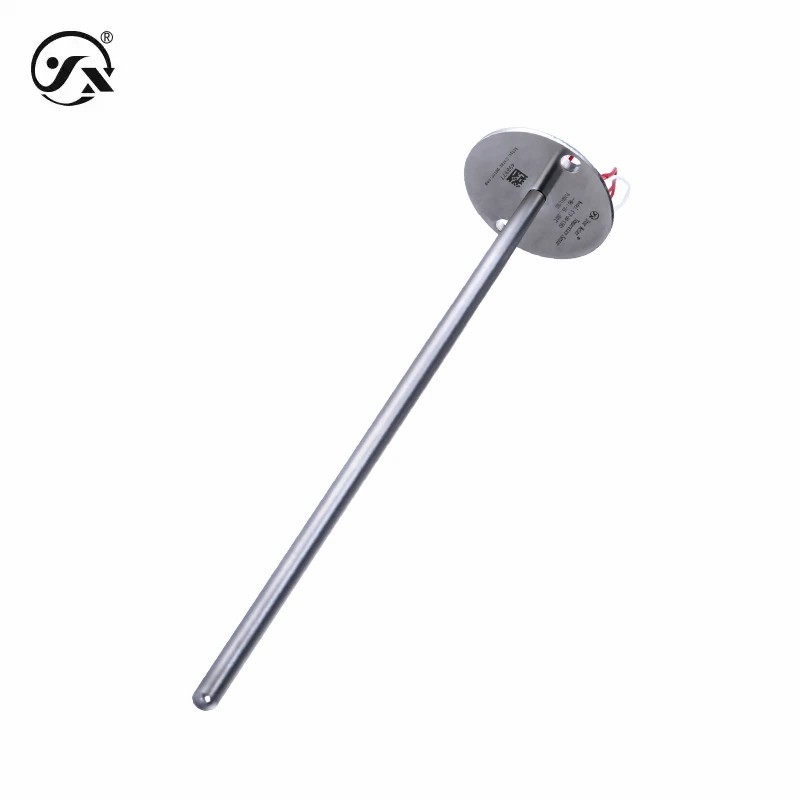

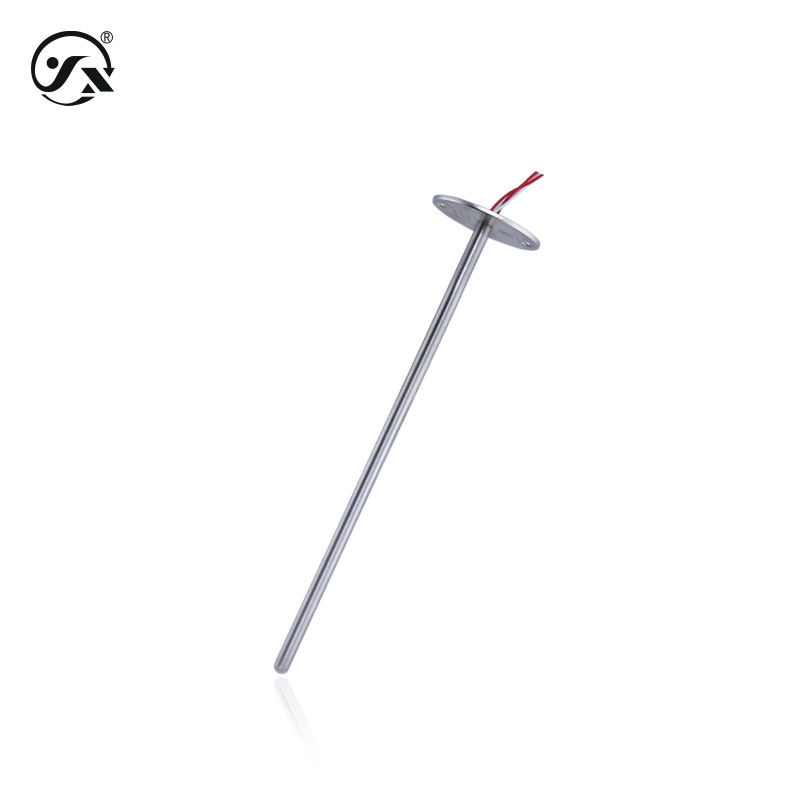

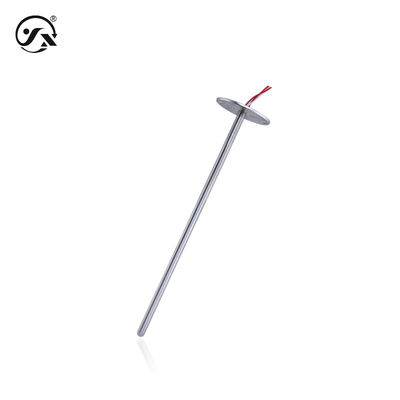

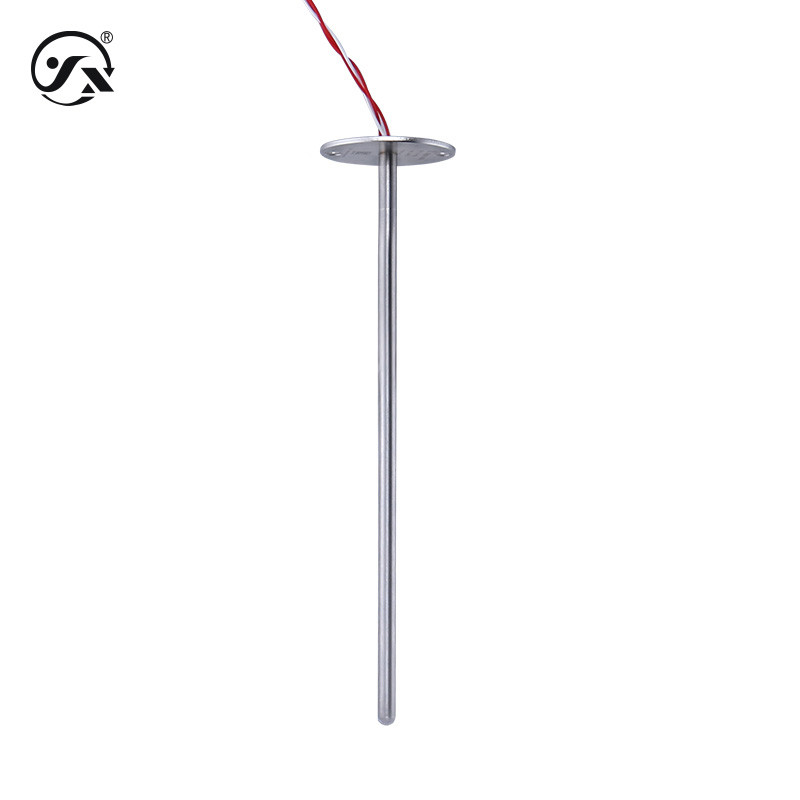

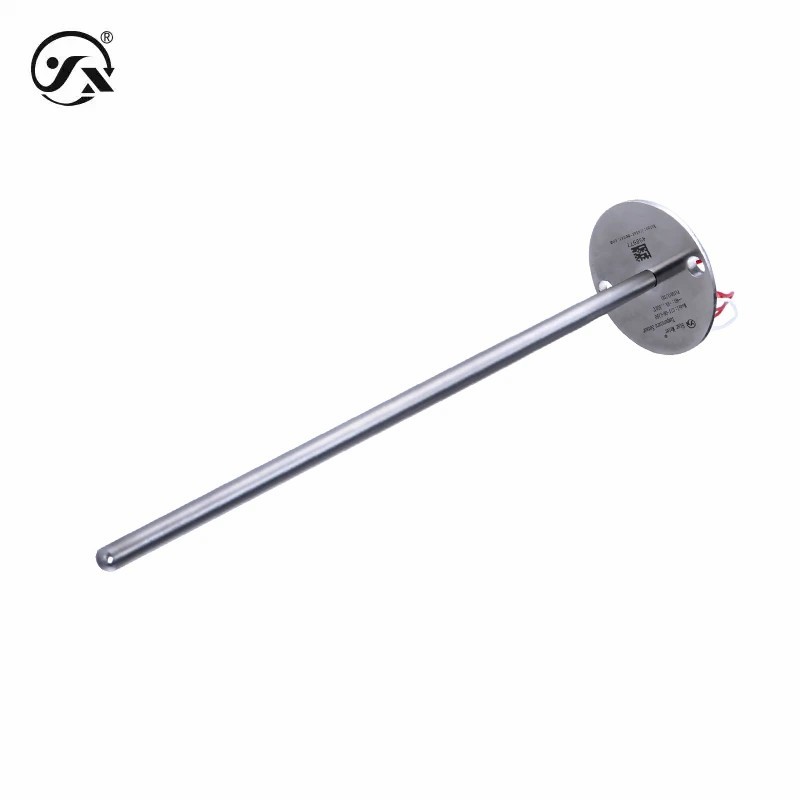

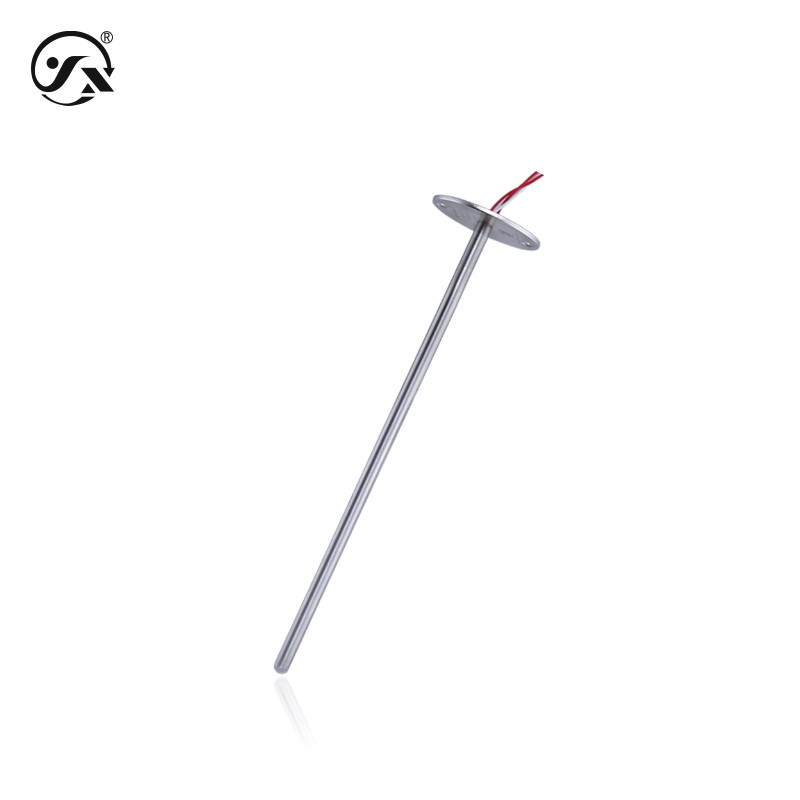

C1Y Armored Temperature Sensor General Industry Measuring Medium Solid, Liquid Or Gas (Compatible With Contact Material)
The C1Y armored temperature sensor core is suitable for armored temperature transmitters that meet this size.
| Base parameters | |
| Measuring medium | Solid, liquid or gas (compatible with contact material) |
| Measuring range | -50～300℃,-200～300℃, -50～500℃ |
| Measuring cell | 1*Pt100 (Class 1/3B) |
| Response time | ≤18s (conforms to IEC60751, 0.4m/s water flow, 10°C step) |
| Stable performance | ± 0.1% FS/year |
| Degree of protection | IP68 |
| Electrical protection | |
| Insulation resistance | ≥100MΩ,500VDC |
| Dielectric strength | 500VAC |
| Overall material | |
| enclosure | 304 stainless steel |
| Cable | 0.2 compensation cable |
| Mechanical stability | |
| Seismic performance | 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard |
| Impact resistance | 500g/ms complies with IEC60068-2-27 standard |
| Manual | |
| Product Information -Chinese (CN) | |
| Product Information -English (EN) | |
| Product selection -Chinese (CN) | |
| Product selection -English (EN) |
