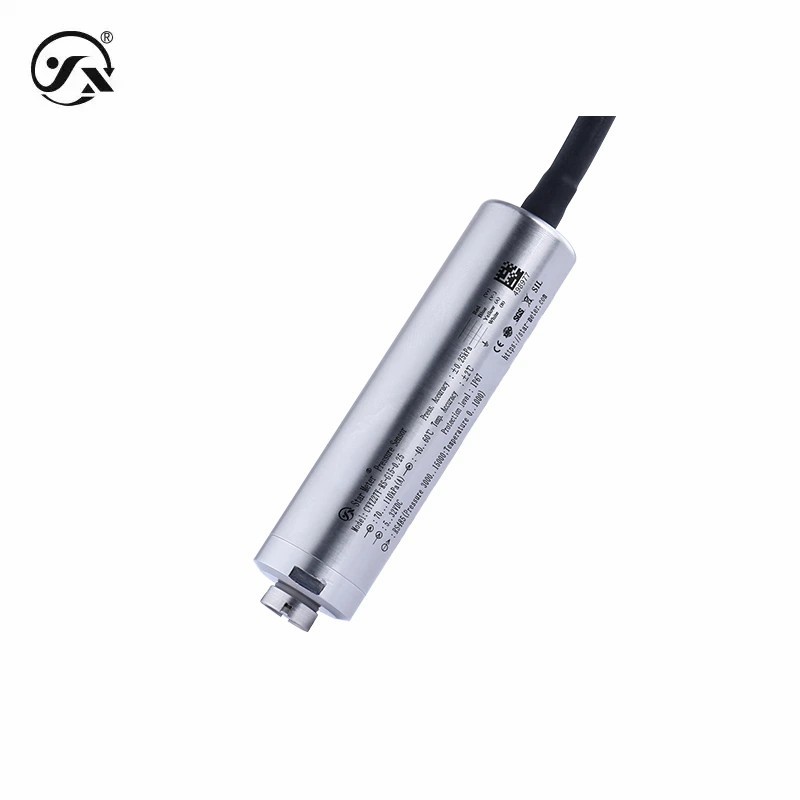

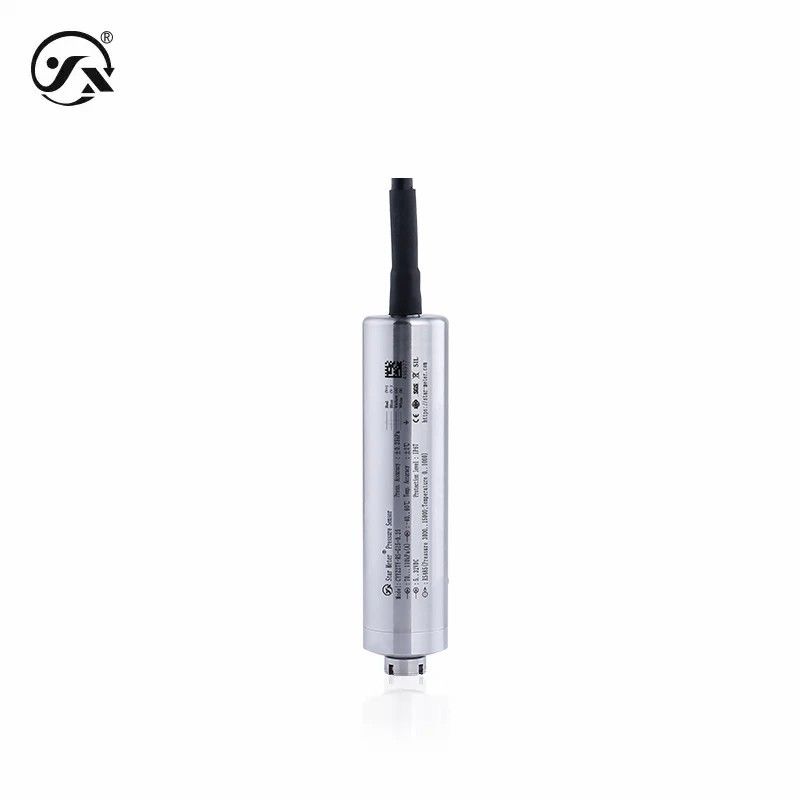

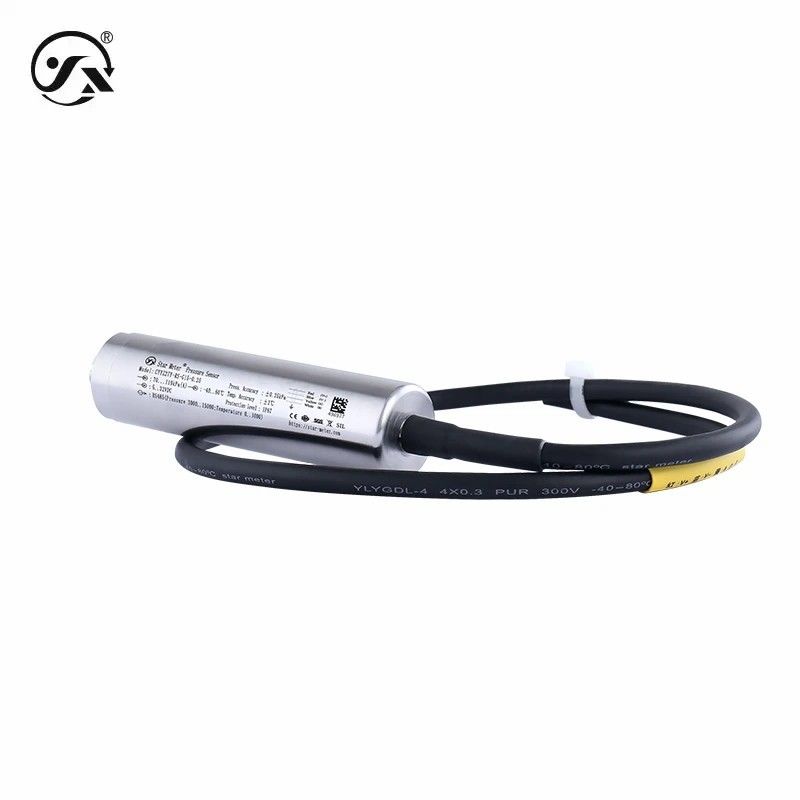

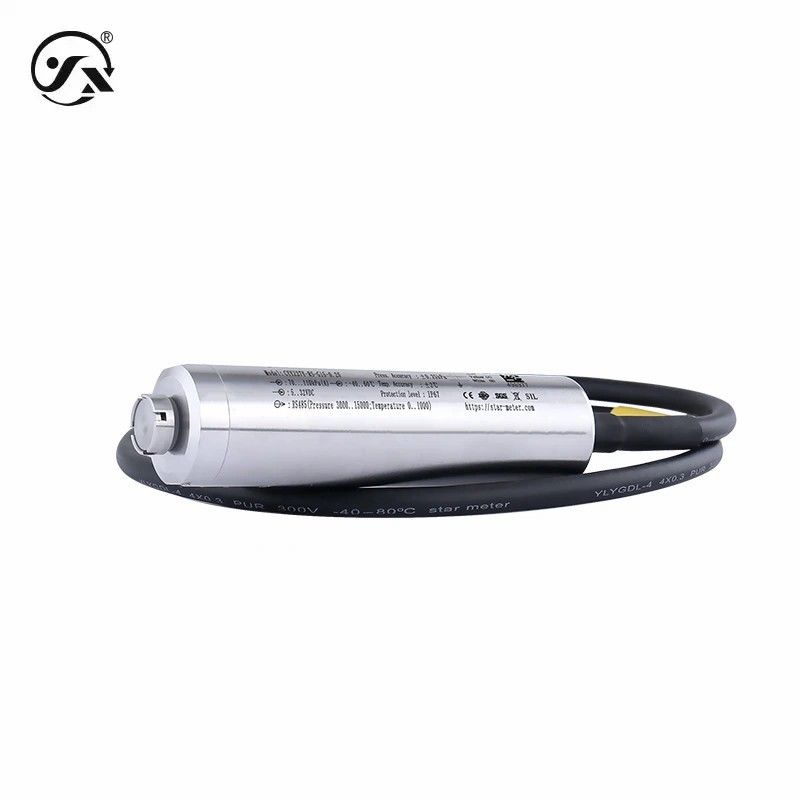

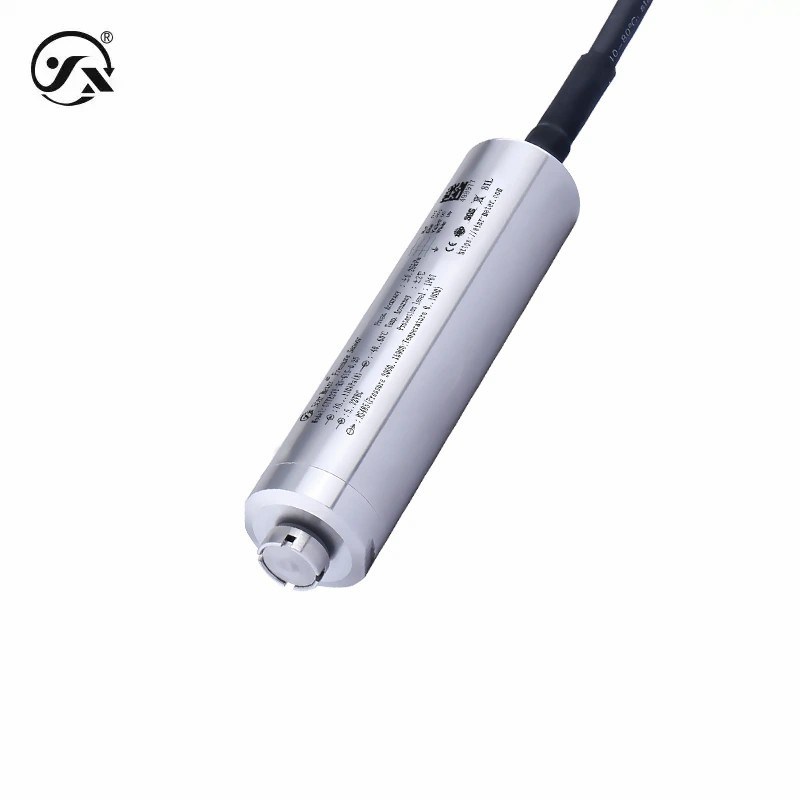

CYYZ27Y Barometric Pressure Transmitter Sensor range 70kPa-110kPa

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ27Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Pressure Range: 70~110kPa(A) Temperature Range: -40~60°C
Pressure Accuracy: ±0.05kPa, ±0.25kPa Temperature Accuracy: ±2°C
Output: RS485 Power Supply: 5~32VDC
Name: Pressure Transmitter Sensor
Highlight:

Barometric Pressure Transmitter Sensor

,

CYYZ27 Barometric Pressure Transmitter

,

CYYZ27 Barometric Pressure Sensor

CYYZ27Y Barometric Pressure Transmitter Pressure Range 70~110kPa(A) Temperature Range Water Level Measurement -40~60°C



CYYZ27Y barometric pressure transmitter, the overall stainless steel housing design is durable, mainly for atmospheric pressure compensation, and with temperature output. Pressure is available in two precisions, high precision and conventional.



Base parameters
Measuring medium gas
Range range 70~110kPa(A)
Temperature range -40~60℃
Type of pressure Absolute pressure
On-time 400ms
Pressure accuracy ±0.05kPa, ±0.25kPa (reference temperature 25°C)
Temperature accuracy ±2℃
Response frequency 5Hz
Stable performance ± 0.1% FS/year
Temperature compensation -10~70℃
Temperature drift ±0.01%FS/°C (temperature compensation range); ±0.05%FS/°C (outside temperature compensation range)
Degree of protection IP67
Overall weight ≈110g
Output power
Output signal RS485
Supply voltage 5~32VDC
Environmental conditions
Ambient temperature -40~85℃
Overall material
enclosure 304 stainless steel (contact with the medium to be measured)
Seals Nitrile rubber (contact with the medium to be measured)
Cable φ5 polyurethane shielded cable (contact with the measured medium)
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
RS485 Minimum output: pressure 3000/temperature 0, maximum output: pressure 15000/temperature 1000
