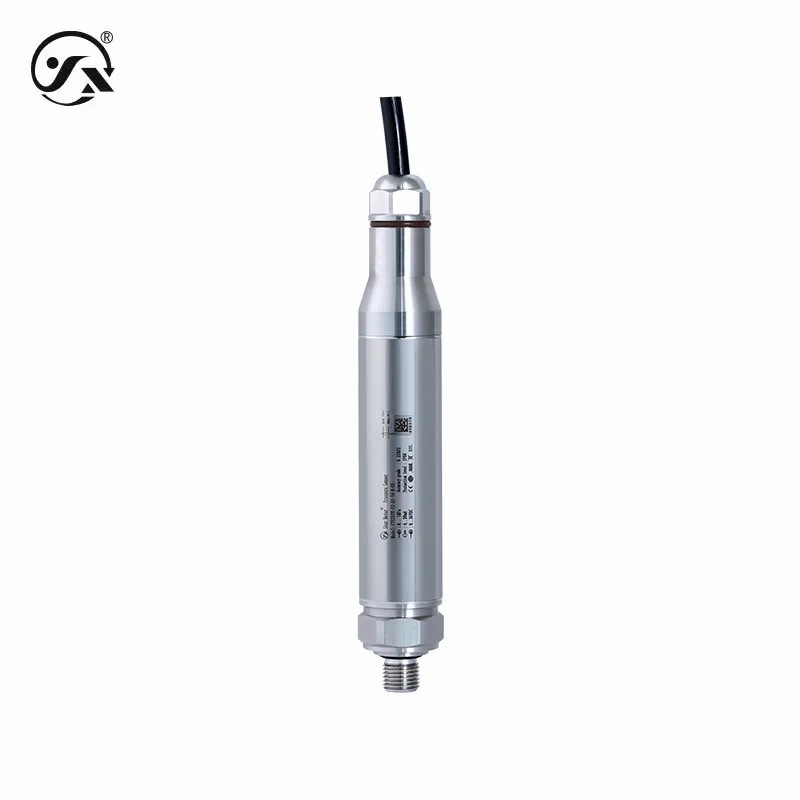

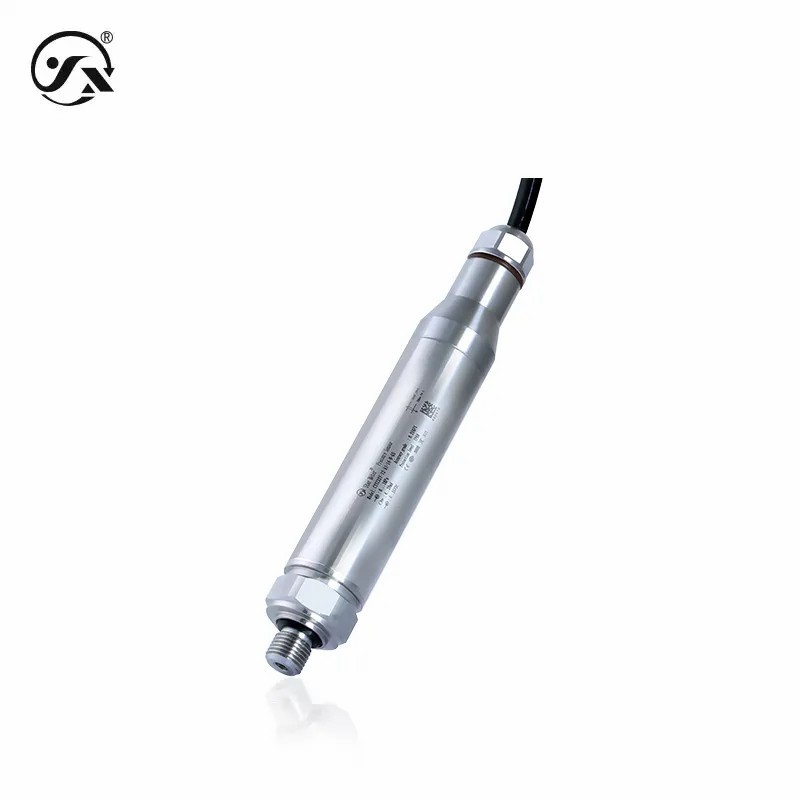

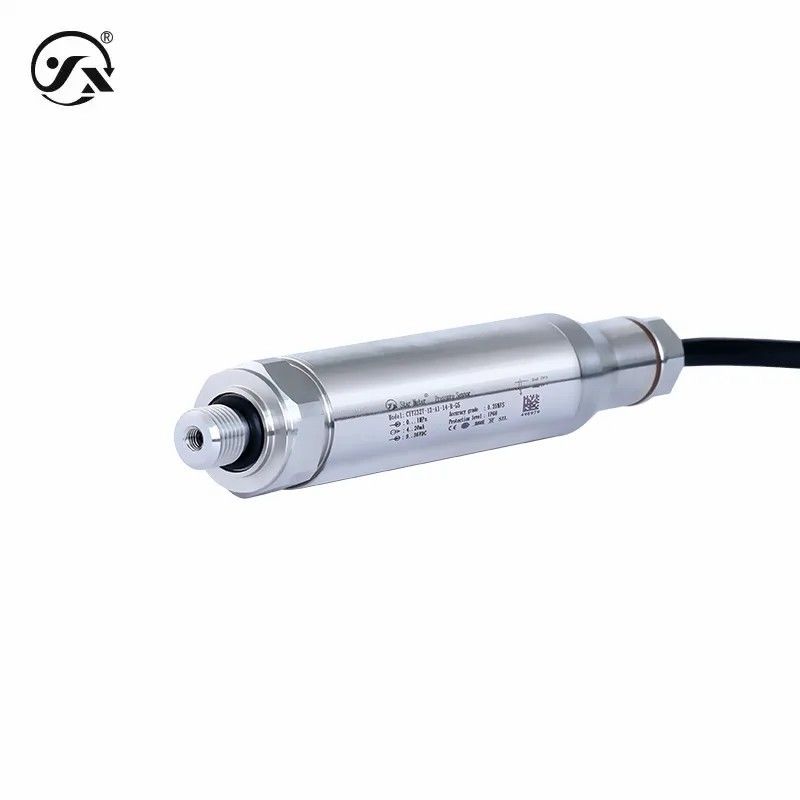

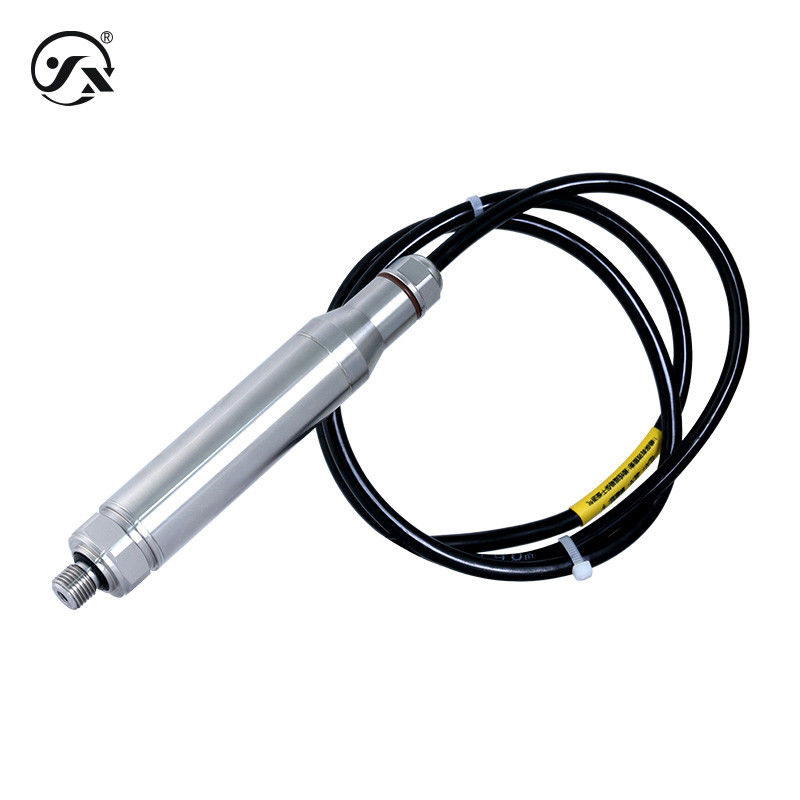

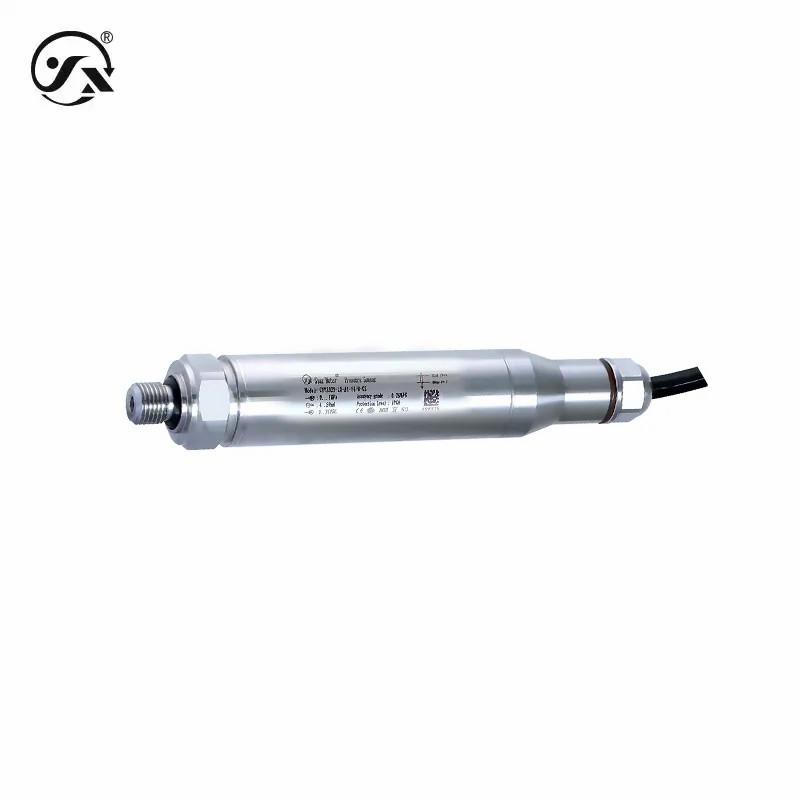

CYYZ32Y Protective High Accuracy Pressure Transmitter 0.25%FS 0.5%FS

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ32Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -100kPa~0~2.5MPa Output: 4~20mA, RS485
Power Supply: 9~36VDC Accuracy: 0.25%FS, 0.5%FS
Name: Pressure Transmitter Sensor
Highlight:

CYYZ32 High Accuracy Pressure Transmitter

,

Protective High Accuracy Pressure Transmitter

,

High Accuracy Pressure Transmitter 0.25%FS

CYYZ32Y Protective Pressure Transmitter General Industry Use Range -100kPa~0~2.5MPa Accuracy 0.25%FS 0.5%FS



The CYYZ32Y pressure transmitter adopts a double isolation diaphragm inside and an integral welding process outside, which makes it have superior anti-condensation function. It is mainly used in pressure measurement sites such as large changes in medium temperature and humid environment.



Base parameters
Measuring medium Liquid or gas (compatible with contact material)
Measuring range -100kPa~0~2.5MPa (see range selection table for details)
Type of pressure Gauge pressure, negative pressure
Pressure range -100kPa~0~2.5MPa
Media temperature -40~85℃
Response frequency Analog signal output≤ 50Hz, digital signal output ≤5Hz
On-time 400ms
Accuracy class 0.25%FS Conventional (Range≥100kPa) 0.5%FS Conventional (10kPa≤Range<100kPa)<b15>
Note: Reference conditions: temperature 25~86°C, atmospheric pressure 106~45kPa, humidity 75~<>%RH.
Stable performance ± 0.1% FS/year
Overload capacity 200% full scale
Supply voltage 9~36VDC
Signal output 4~20mA,RS485
Temperature drift ±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)
Degree of protection IP68
Durable performance 10X10⁶ times (lower range to upper range cycles)
Overall weight ≈710g (including 4m cable)
resolution Analog output 0.01%FS, digital output 0.05%FS
Maximum power Current: ≤0.02Us(W) Digital: ≤0.015Us(W)
Load characteristics Current type: Load ≤{(Us-7.5)÷0.02}Ω (US=supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Overall material
Diaphragm 316L stainless steel (contact with the medium to be measured)
The process is connected 304 stainless steel (contact with the medium to be measured)
Outer shell 304 stainless steel
Confidential Documents Nitrile rubber (contact with the medium to be measured)
  φ7.2mm polyurethane air shielding cable (UV protection)
Mechanical stability
  10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
limit
4-20mA 4mA~20mA
RS485 0~2000
