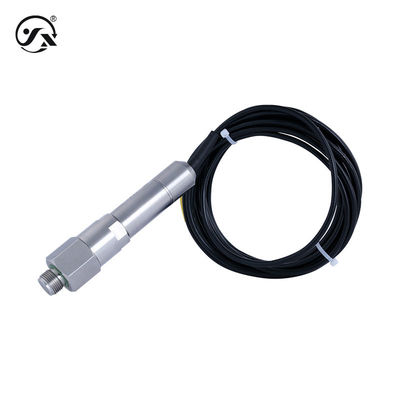

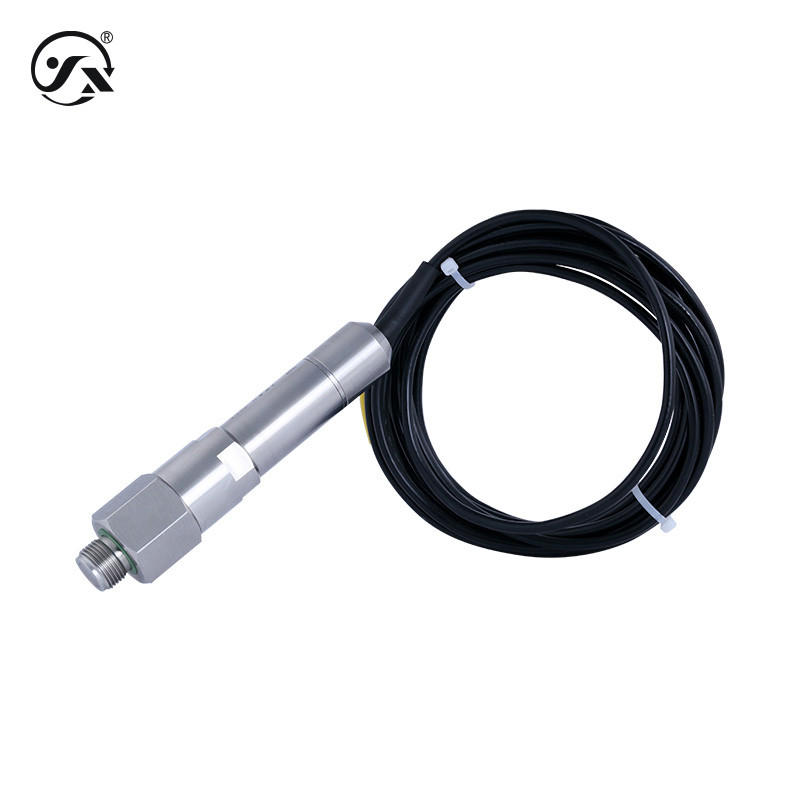

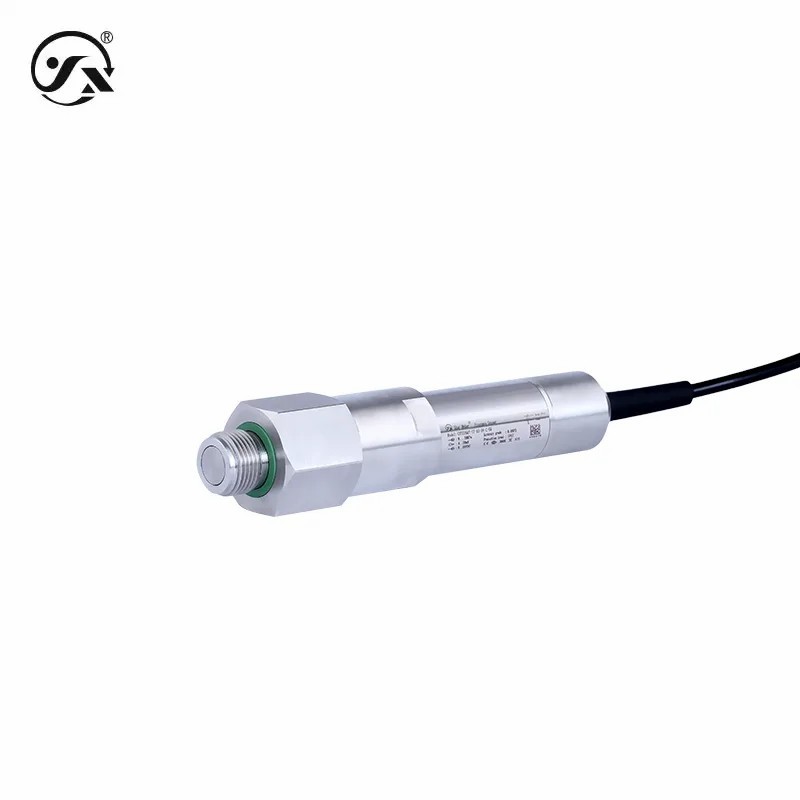

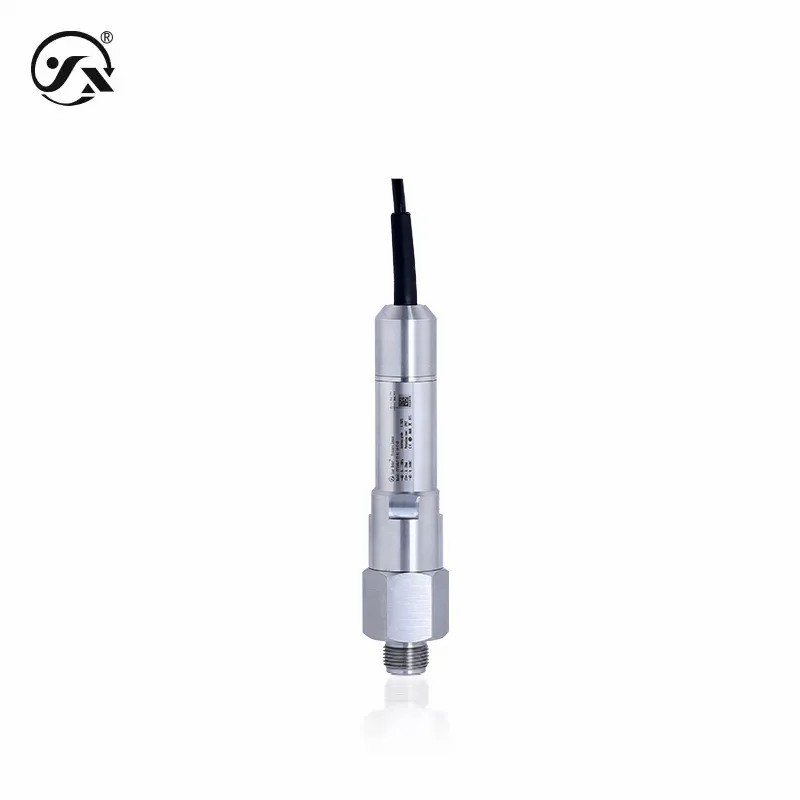

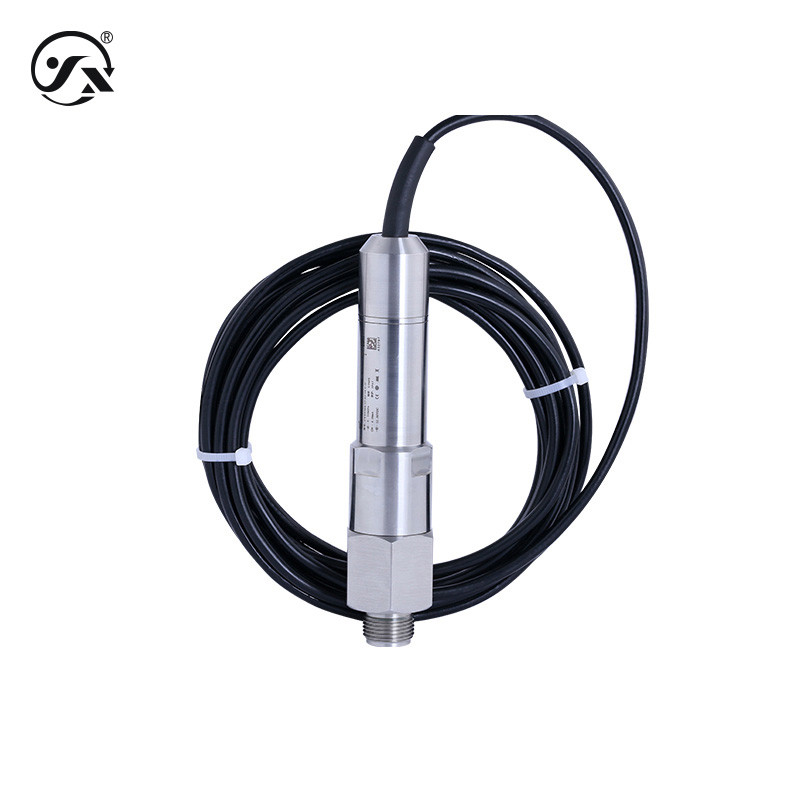

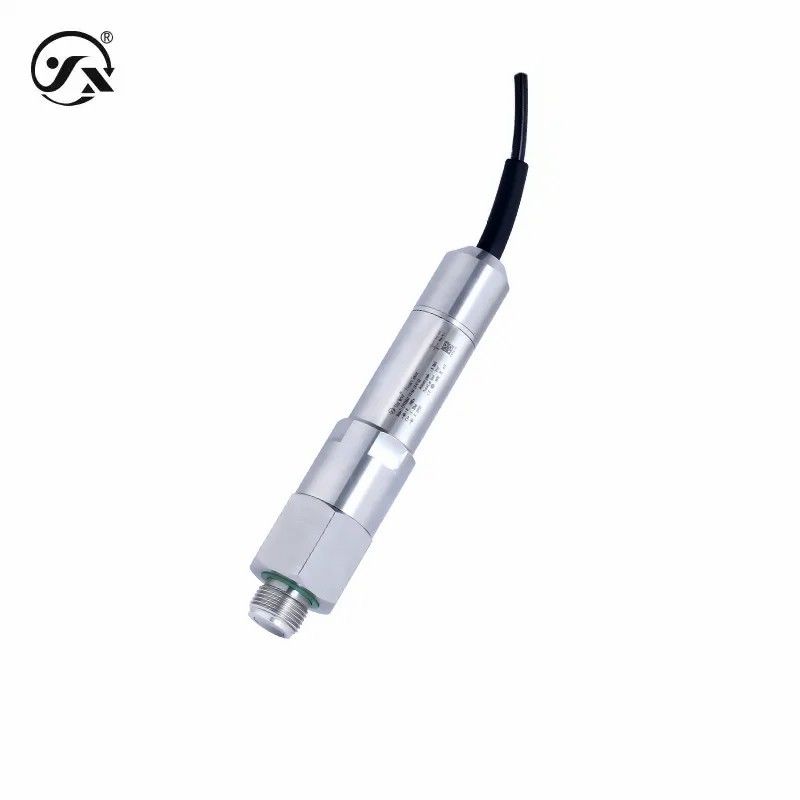

CYYZ36AY Mud Type Compact Pressure Transmitter 0.5%FS Anti Vibration

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ36AY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: 0~1MPa~110MPa Output: 4~20mA、RS485
Power Supply: 9~36VDC Accuracy: 0.5%FS
Name: Pressure Transmitter Sensor
Highlight:

CYYZ36A Compact Pressure Transmitter

,

Mud Type Compact Pressure Transmitter

,

Compact Pressure Transmitter 0.5%FS

CYYZ36AY Mud Type Pressure Transmitter Range 0~1MPa~110MPa Accuracy 0.5%FS Construction Machinery Cement Grout



CYYZ36AY mud type pressure transmitter has careful design, compact structure, anti-vibration, frequent high-pressure impact, solid sand impact, and wear resistance, and is suitable for the measurement of mud, crude oil, wet soil and other media.



Base parameters
Measuring medium Slurry, crude oil, wet soil, etc. (compatible with contact materials)
Measuring range 0~1MPa~110MPa (see range selection table for details)
Type of pressure Gauge pressure
Temperature compensation -10~70℃
Accuracy class 0.5%FS
Response frequency 5Hz,100Hz
Stable performance ± 0.1% FS/year
Temperature drift ±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)
Overall weight ≈650g (including 5m cable)
resolution Analog output 0.01%FS, digital output 0.05%FS
Degree of protection IP67
Output power
Output signal 4~20mA,RS485
Power supply range 9~36VDC
Power range
Current type ≤0.02Us(W)
Digital ≤0.015Us(W)
Load characteristics
Current type ≤{(Us-7.5)÷0.02(Us=Supply voltage)}Ω
Environmental conditions
Media temperature -40~85℃
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overload capacity
Overload pressure 200%,150%FS
Burst pressure 400%,300%FS
Overall material
diaphragm 316L stainless steel (contact with the medium to be measured)
Process connection 316L stainless steel (contact with the medium to be measured)
enclosure 316L stainless steel (contact)
Seals Fluoroelastomer Seen pressure and blasting charts (contact with the medium being measured)
Cable Cable: φ5mm polyurethane shielded cable (UV protection)
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance: 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ500VDC
Dielectric strength: 500VAC
Output limits
The output is minimal 3.8mA,0
Output maximum 26mA,2000
Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Product selection -Chinese (CN) PDF
Product selection -English (EN) PDF
Installation instructions -Chinese (CN) PDF
Installation instructions -English (EN) PDF
Protocol -Chinese (CN) PDF
