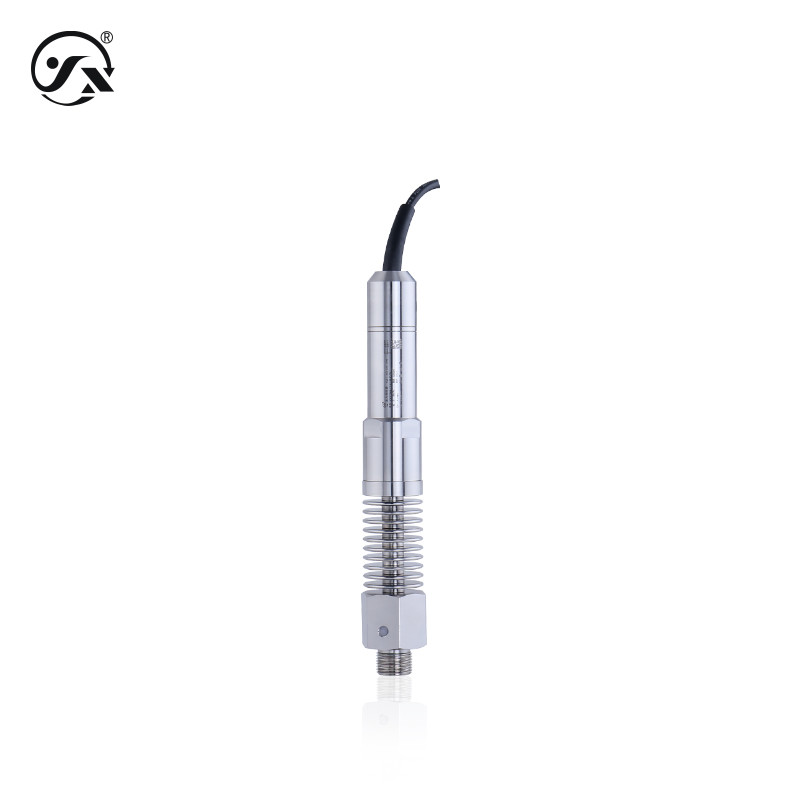

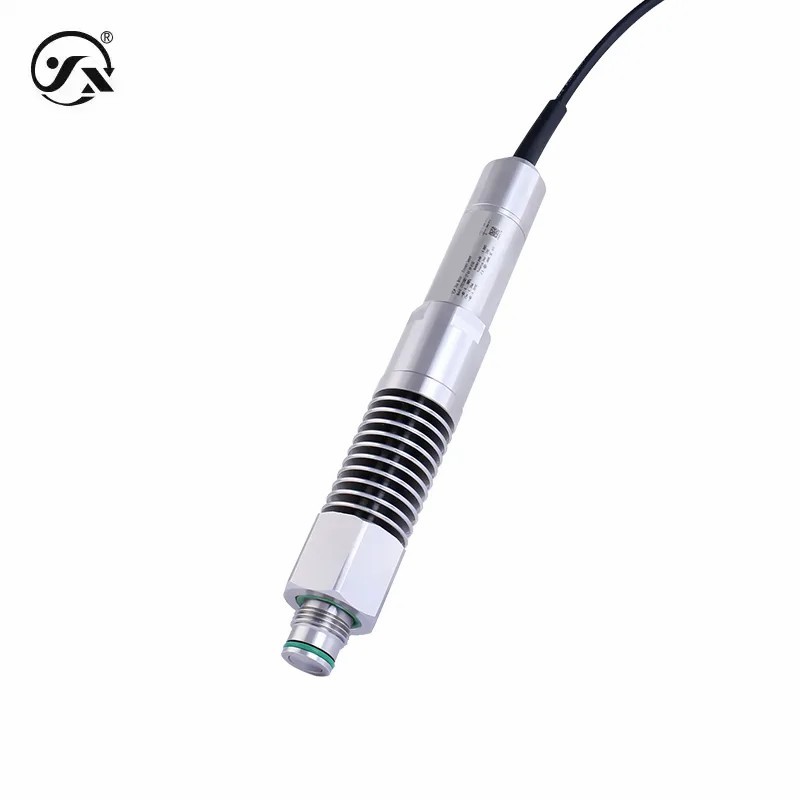

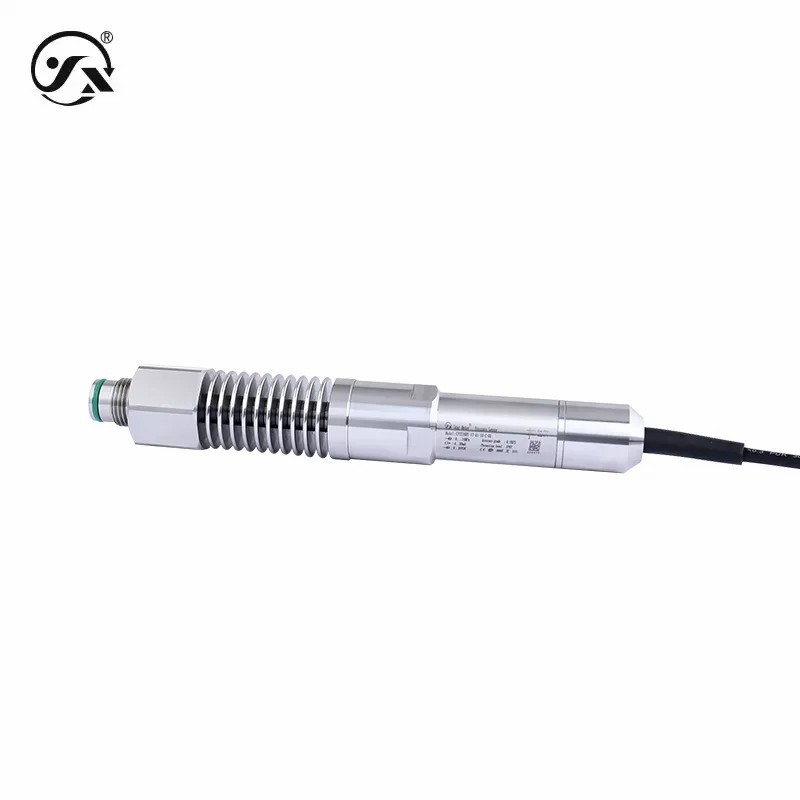

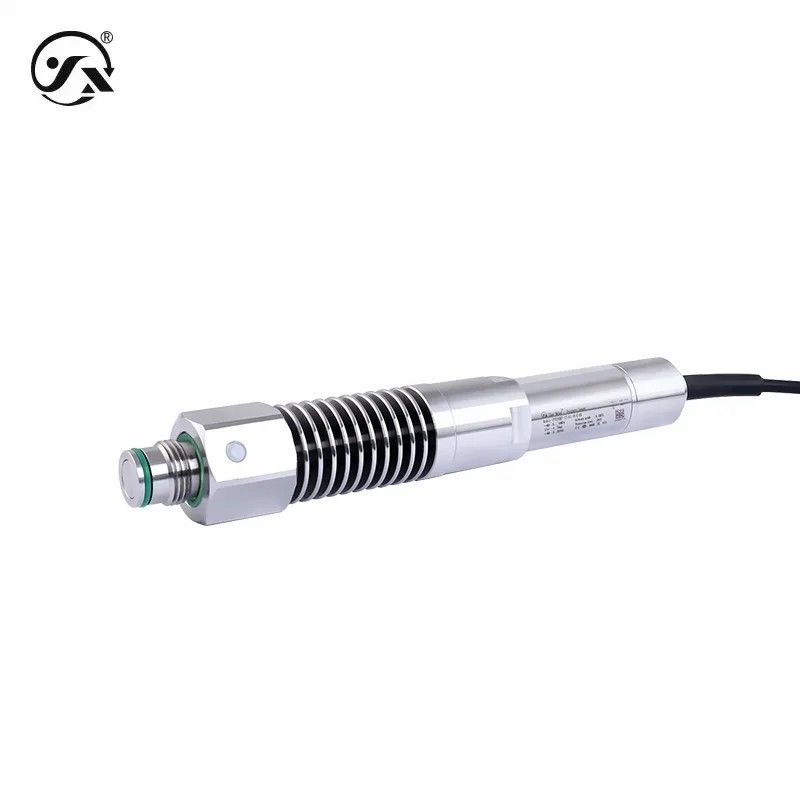

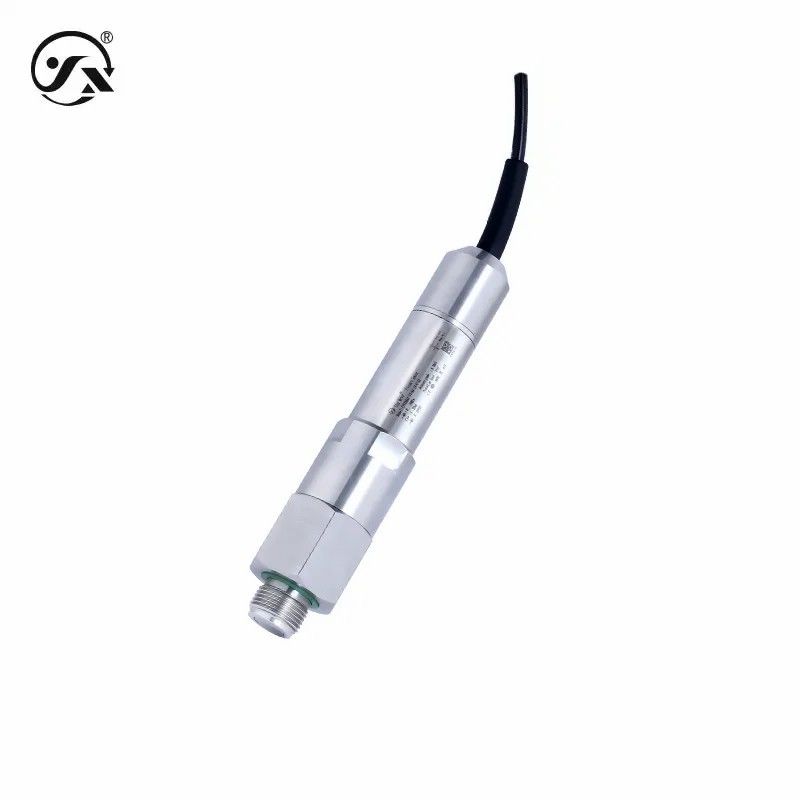

CYYZ36RY Fused Type Pressure Transmitter High Temperature For Adhesive Melting Equipment

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ36RY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: 0-1MPa~60MPa Output: 4-20mA, RS485
Power Supply: 9-36VDC Accuracy: 0.5% FS
Name: Pressure Transmitter Sensor
Highlight:

Fused Type Pressure Transmitter High Temperature

,

CYYZ36R Pressure Transmitter High Temperature

,

CYYZ36R High Temperature Pressure Transmitter

CYYZ36RY Fused Type Pressure Transmitter High temperature adhesive melting equipment Range 0-1MPa~60MPa



The CYYZ36RY melt type pressure transmitter is meticulously designed, compact in structure, resistant to vibration, frequent high pressure impact, and wear-resistant, suitable for medium with easy solidification of melt within 200 ℃.





Basic parameters
Measuring medium Glue, slurry, crude oil, etc. (compatible with contact materials)
Measuring range 0~1MPa~60MPa (see range selection table for details)
Type of pressure Gauge pressure
Output signal 4~20mA,RS485
Supply voltage 9~36VDC
Accuracy class 0.5%FS
Medium temperature -40~200℃
Turn-on time 20ms
Stable performance ±0.1% FS/year
Temperature compensation -10~70℃
Temperature drift ±0.01%FS/°C (within temperature compensation) ±0.05%FS/°C (outside temperature compensation)
Ingress protection IP67
Durable performance 1X10⁶ cycles (number of cycles from lower range to upper range)
Overall weight ≈650g (with 5m cable)
resolution Analog output 0.01%FS, digital output 0.05%FS
Frequency of response
RS485 output 5Hz
4-20mA 100Hz
Maximum power
4-20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
Load characteristics
Current type ≤{(Us-7.5)÷0.02(Us=supply voltage)}Ω
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH (no condensation, no condensation)
Overload capacity
Overload pressure 200%,150%FS
Burst pressure 500%,400%,300%FS
Overall material
diaphragm 316L stainless steel (in contact with the medium to be measured)
Process connections 316L stainless steel (in contact with the medium to be measured)
enclosure 316L stainless steel (contact)
Core seals Seen pressure and burst charts (contact with the medium to be measured)
Threaded seals Fluoroglue (in contact with the medium to be measured)
Cable Cable: φ5mm polyurethane shielded cable (UV protection)
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact Resistance: 500g/ms meets IEC60068-2-27 standard
Electrical protection
Short-circuit protection eternity
Anti-polarity protection No damage, but no work
Insulation resistance ≥100MΩ500VDC
Dielectric Strength: 500VAC
Output limits
4-20mA 3.8mA~26mA
RS485 0~2000
Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Product selection -Chinese (CN) PDF
Product selection -English (EN) PDF
Installation instructions -Chinese (CN) PDF
Installation instructions -English (EN) PDF
Protocol -Chinese (CN) PDF
Protocol -English (EN) PDF
