CYYZ38Y Earth Pressure Transmitter 4mA-20mA RS485 For Soil Slurry Measurement Shield Machine

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ38Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Name: Earth Pressure Transmitter Range: 0~0.6MPa
Output: 4~20mA, RS485 Power Supply: 9~28VDC, 5~28VDC
Accuracy: 0.5%FS
Highlight:

CYYZ38 Earth Pressure Transmitter

,

Earth Pressure Transmitter 4mA

,

Earth Pressure Transmitter 20mA

CYYZ38Y Earth Pressure Transmitter Soil Slurry Measurement Shield Machine Range 0~0.6MPa Output 4~20mA RS485

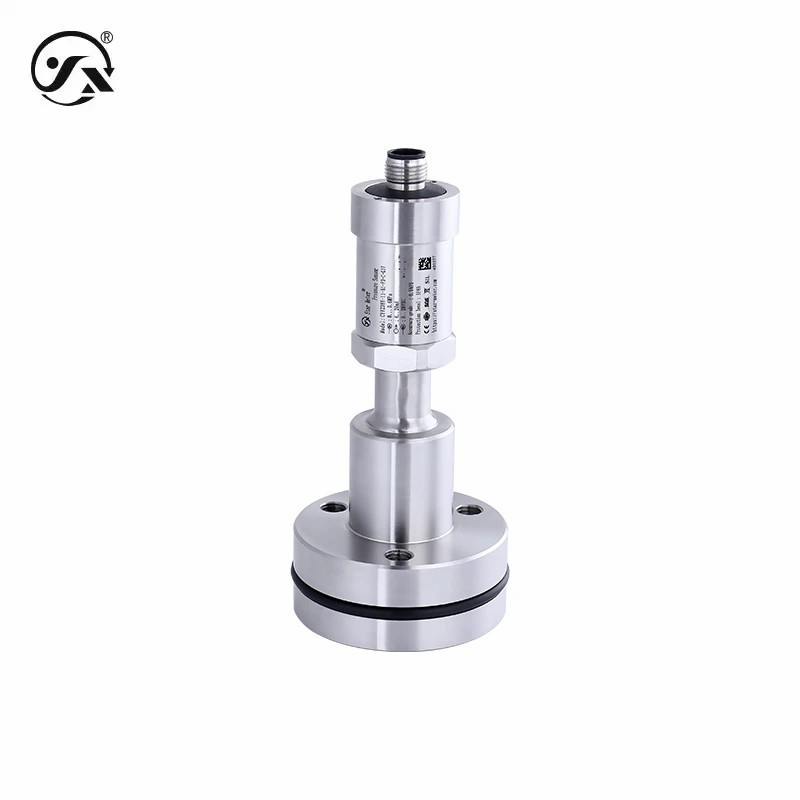

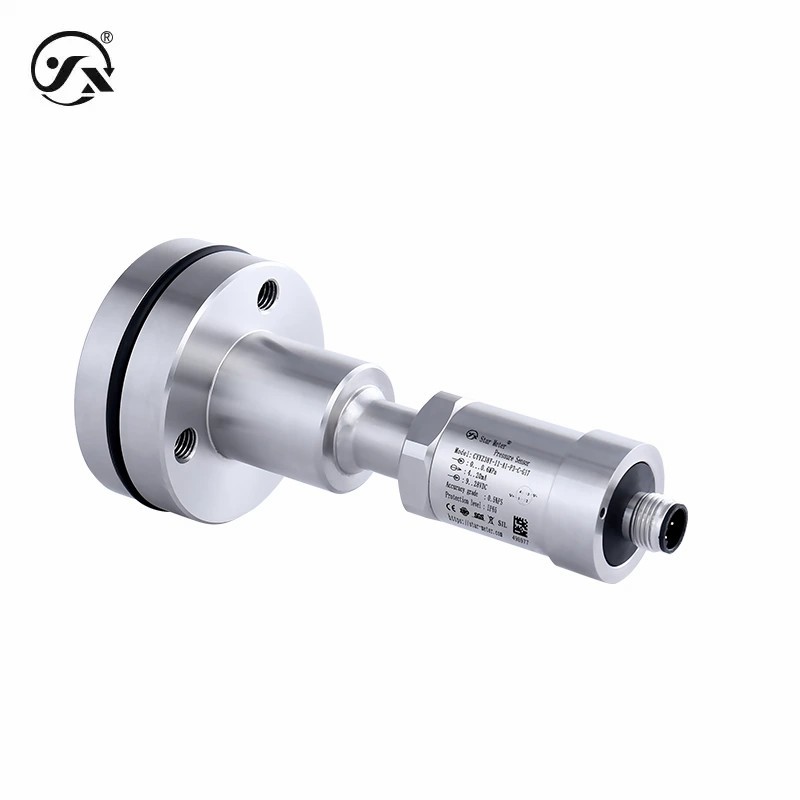

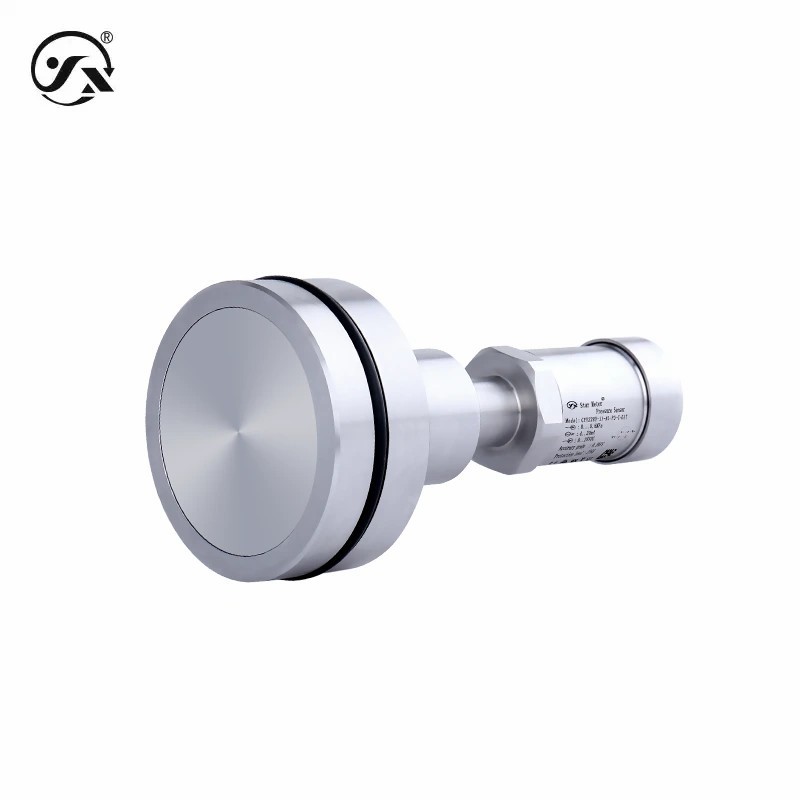

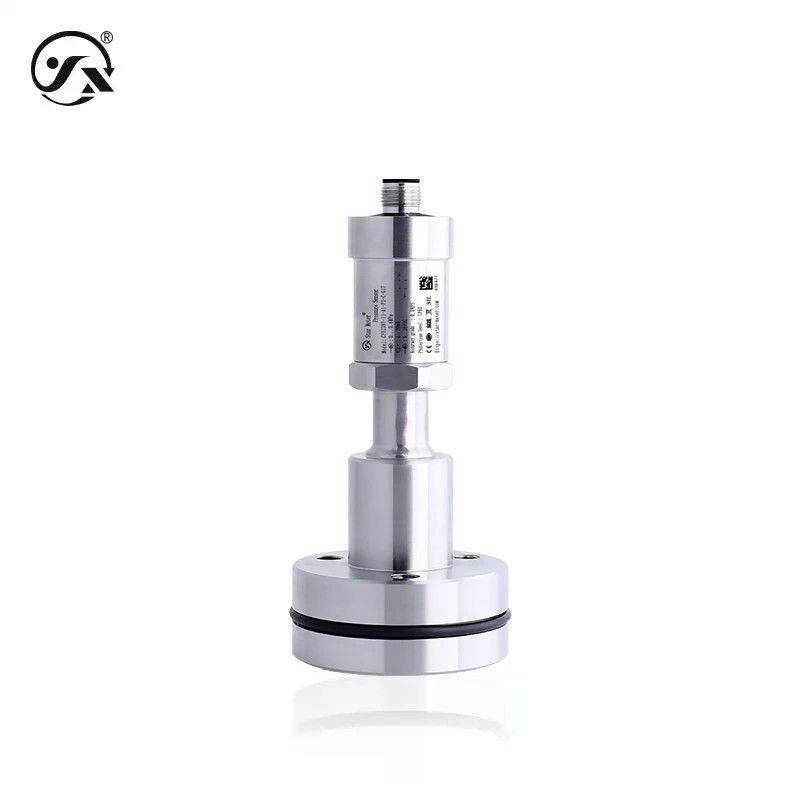

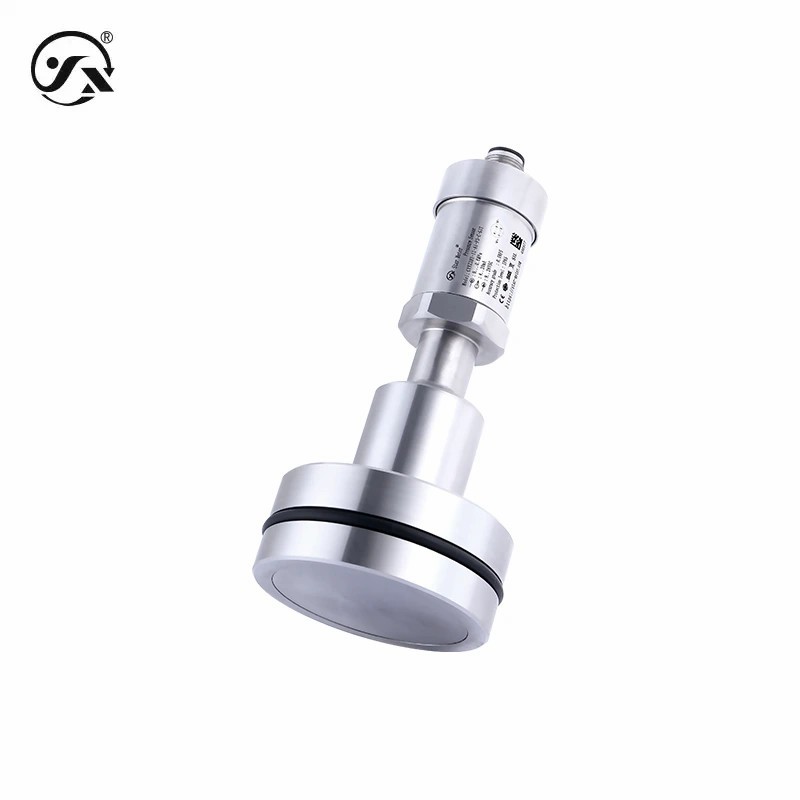

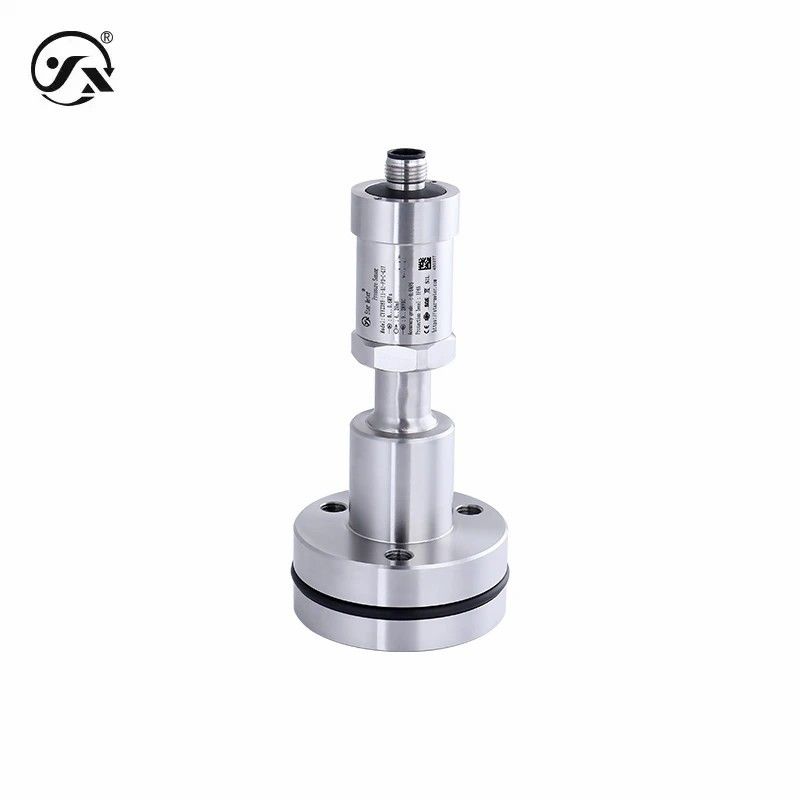

CYYZ38Y earth pressure transmitter is carefully designed, compact structure, anti-vibration, resistant to frequent high-pressure impact, solid sand impact, and wear-resistant, suitable for the measurement of mud, wet soil and other media.



Base parameters
Measuring medium Slurry, wet soil, etc. (compatible with contact materials)
Pressure range 0~0.6MPa
Pressure mode Gauge pressure
Accuracy class 0.5%FS
Media temperature -40~85℃
On-time 20ms
Stable performance ± 0.1% FS/year
Temperature compensation -10~70℃
Temperature drift ±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)
Degree of protection IP65
Durable performance 1X10⁶ times (lower range to upper range number of cycles)
Response frequency Analog signal output≤ 30Hz digital signal output≤ 5Hz HART communication ≤10Hz
Overall weight ≈850g
resolution Analog output 0.01%FS, digital output 0.05%FS
Output power
4~20mA 9~28VDC
RS485 5~28VDC
Response frequency
RS485 output 5Hz
4-20mA 100Hz
Maximum power
4~20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
Load characteristics
Current type Load ≤{(Us-7.5)÷0.02}Ω (US=Supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Overpressure and blasting
Overload pressure 200%FS
Burst pressure 500%FS
Overall material
diaphragm 316L stainless steel (contact with the medium to be measured)
Process connection 316L stainless steel (contact with the medium to be measured)
enclosure 316L stainless steel
Seals Seen pressure and blasting charts (contact with the medium being measured)
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
4-20mA Output min. 3.8mA and output max 26mA
RS485 Output minimum 0, output maximum 2000
