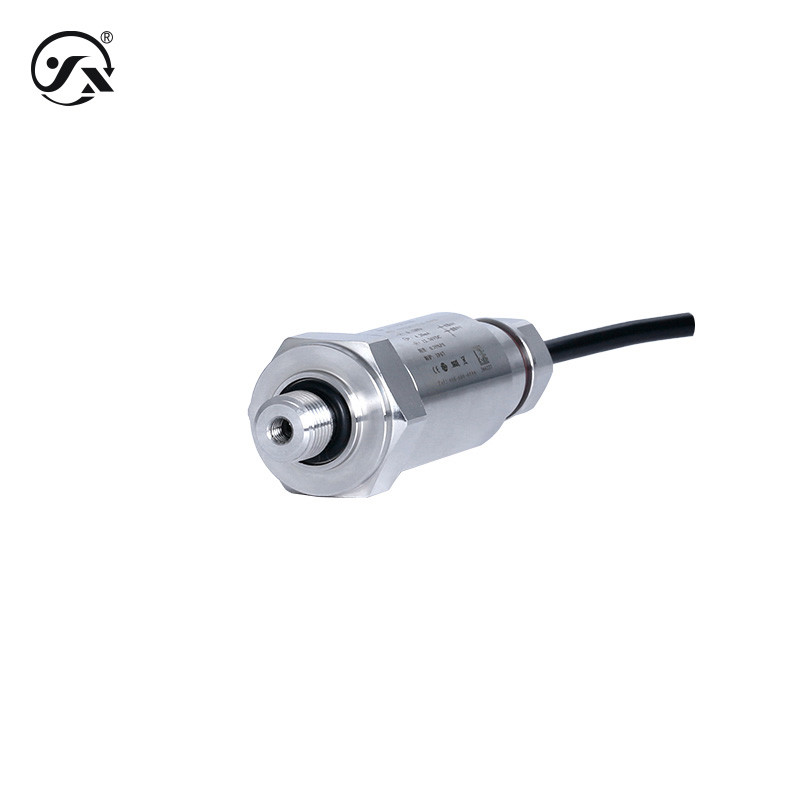

CYYZ39AY High Protection Pressure Transmitter Sensor 0.1%FS 0.25%FS 0.5%FS Accuracy

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ39AY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -100kPa~0~60MPa Output: 4~20mA、RS485、0~10VDC、0~5VDC、1~5VDC、0.5~2.5VDC
Power Supply: 9~36VDC、15~36VDC、3~5VDC Accuracy: 0.1%FS、0.25%FS、0.5%FS
Name: Pressure Transmitter Sensor
Highlight:

High Protection Pressure Transmitter Sensor

,

CYYZ39A Pressure Transmitter Sensor

,

Pressure Transmitter Sensor 0.1%FS

CYYZ39AY High Protection Pressure Transmitter Range -100kPa~0~60MPa Accuracy 0.1%FS 0.25%FS 0.5%FS

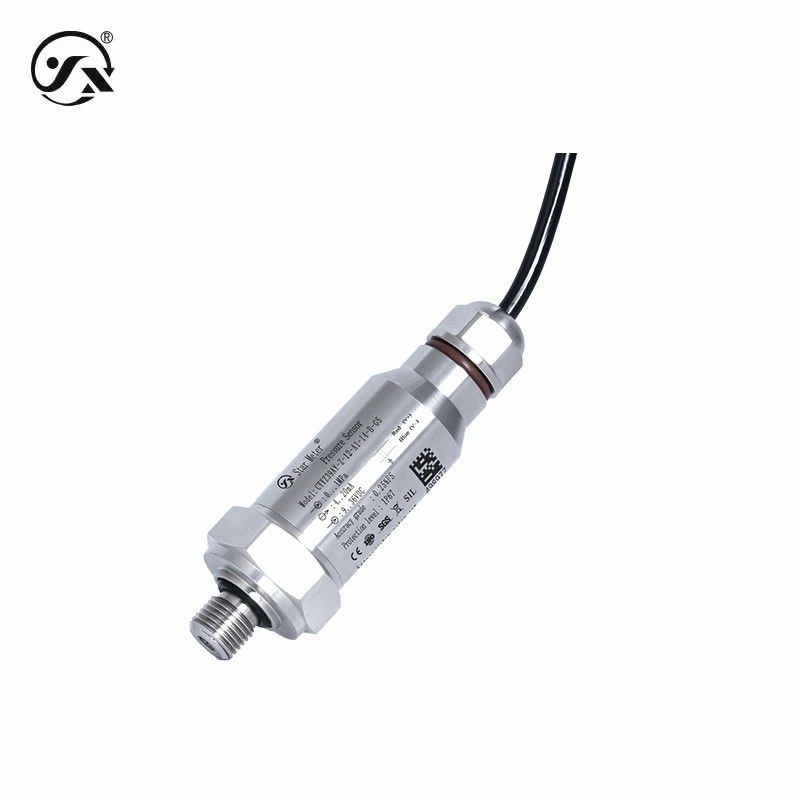

The CYYZ39AY pressure transmitter is not only compact, but also of excellent quality, with a degree of protection up to IP67, suitable for wet or outdoor pressure measurement sites.





Base parameters
Measuring medium Liquid or gas (compatible with contact material)
Measuring range -100kPa~0~60MPa (see range selection table for details) Range range< 10kPa (non-conductor, non-corrosive, non-explosive gas and humidity ≤90%RH, no condensation)
Type of pressure Gauge pressure, absolute pressure, negative pressure
Temperature compensation Standard (temperature compensation -10-70°C) 0.25%FS, 0.5%FS
Optional (temperature compensation -40-80°C) 0.1%FS, 0.25%FS (Note)
Note: The range range is ≤ 10kPa, and the temperature compensation range is -10~70°C
Accuracy class 0.1%FS,0.25%FS,0.5%FS
Response frequency 5Hz,30Hz,100Hz
Stable performance ± 0.1% FS/year
Temperature drift ±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)

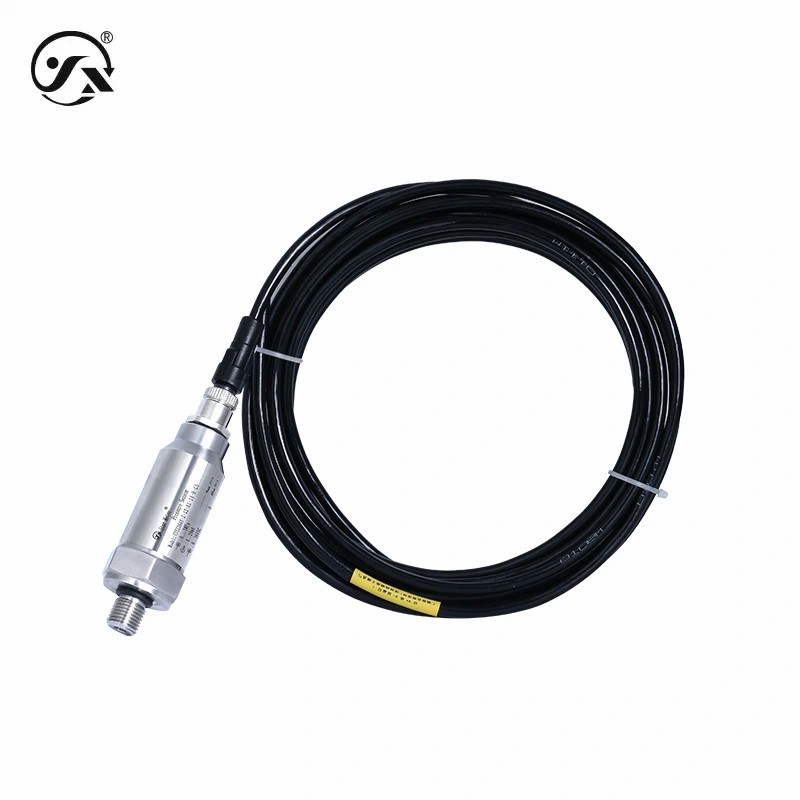

Overall weight ≈ 450g (including 5m cable)
Degree of protection IP67 Note: The above protection level refers to the electrical connection achieved after it is complete, and also depends on the electrical connection plug.
Output power
Output signal 4~20mA,RS485,0~10VDC,0~5VDC,1~5VDC,0.5~2.5VDC
Power supply range 9~36VDC,15~36VDC,3~5VDC
Power range
Current type ≤0.02Us(W)
Voltage type ≤0.008Us(W),≤0.001Us(W)
Digital ≤0.015Us(W)
Load characteristics
Voltage type ≥10kΩ
Current type Current load≤ {(Us-7.5)÷0.02(Us=supply voltage)}Ω
Environmental conditions
Media temperature -40~85℃
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overload capacity
Overload pressure 300%FS,200%FS,150%FS,12kPa,50kPa,300kPa,480kPa,750kPa,800kPa,1.2MPa,2MPa,3MPa,5MPa
Burst pressure 600%FS,500%FS,400%FS,300%FS,20kPa,200kPa,600kPa,900kPa,1.25MPa,2MPa,3MPa,5MPa,9MPa,12.5MPa
Overall material
diaphragm 316L stainless steel (contact with the medium to be measured)
Process connection 304 stainless steel (contact with the medium to be measured)
enclosure 304 stainless steel
Seals Nitrile rubber (contact) fluoroelastomer (seen pressure and blasting chart (contact with the medium to be measured)

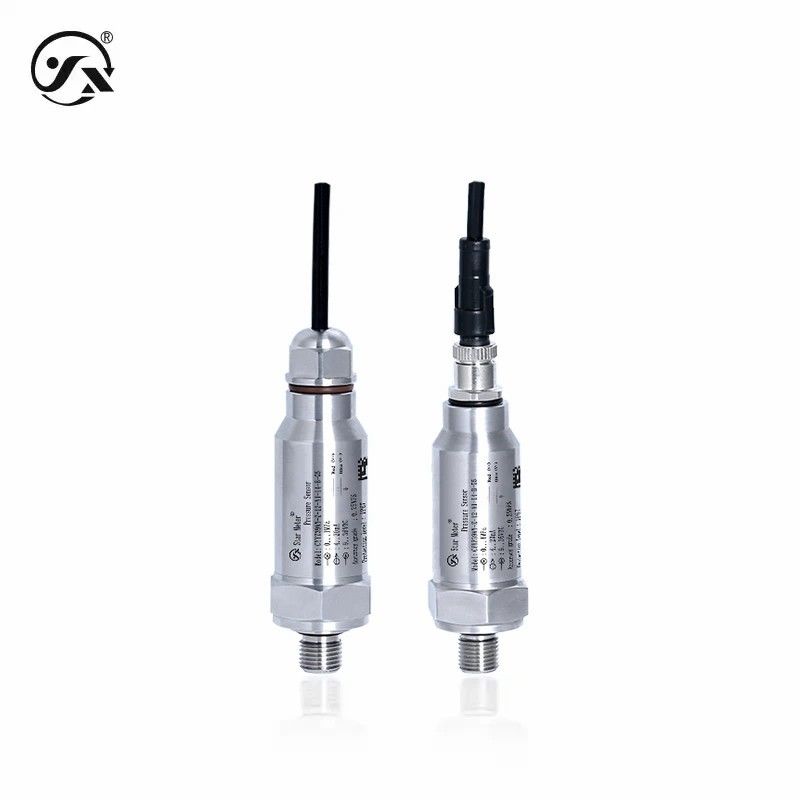

Cable Direct lead Measuring range≤ 1.6MPa φ7.2mm polyurethane air-shielded cable (UV protection) Direct lead, aviation lead Range> 1.6MPa or absolute pressure (A) φ5mm polyurethane shielded cable (UV protection)
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance: 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ500VDC
Dielectric strength: 500VAC
Output limits
The output is minimal 4mA, 0, 0.001VDC, 0.05VDC (Others: 3.8mA)
Output maximum 20mA, 2000, 10VDC, 5VDC (Others: 26mA, 12VDC)
