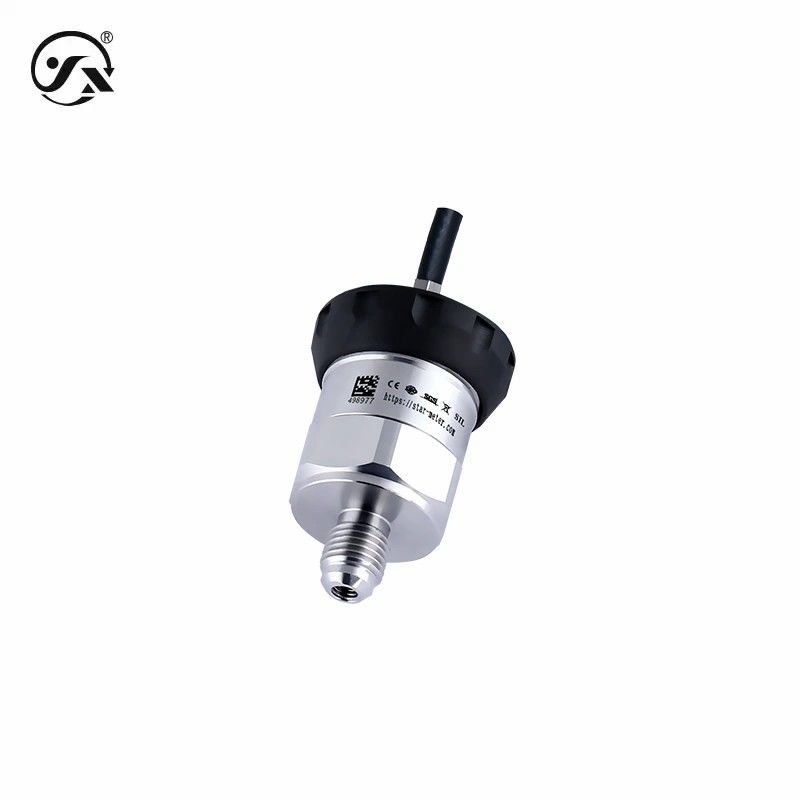

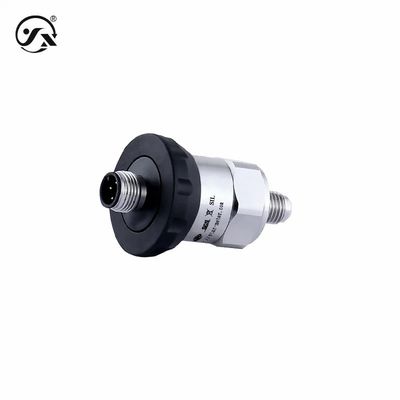

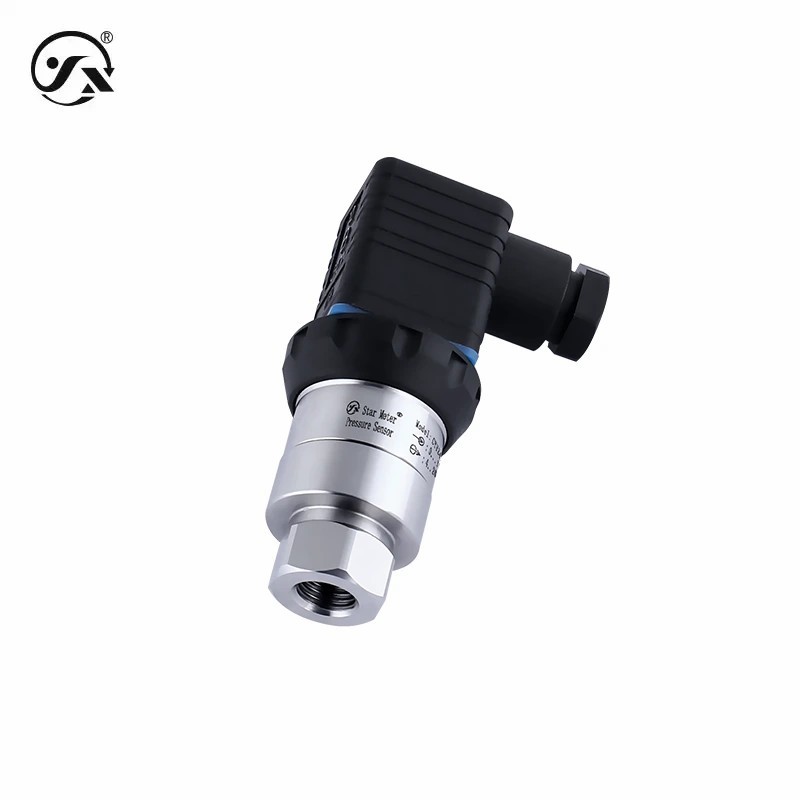

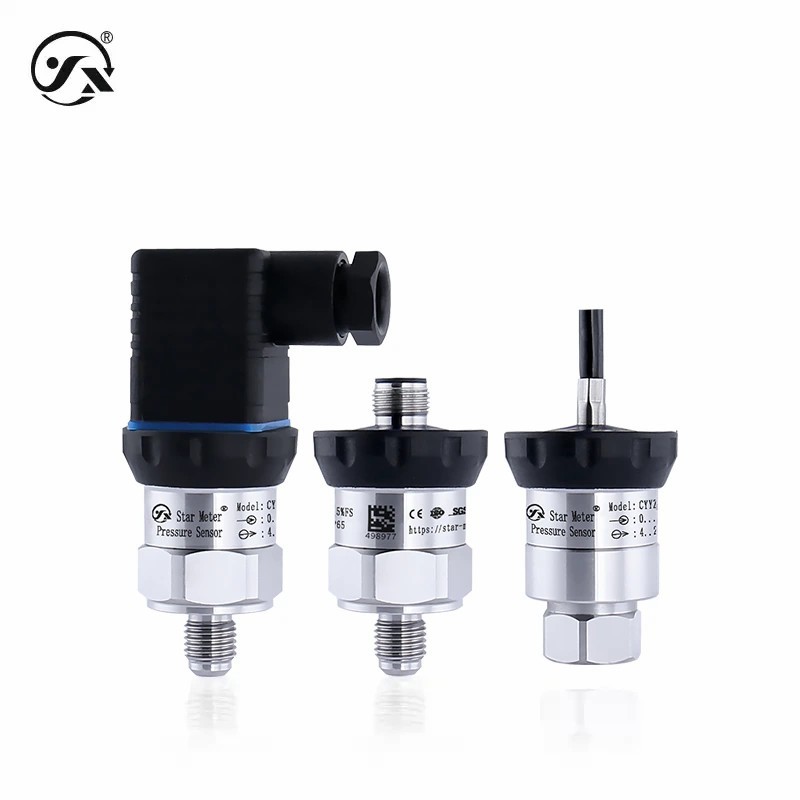

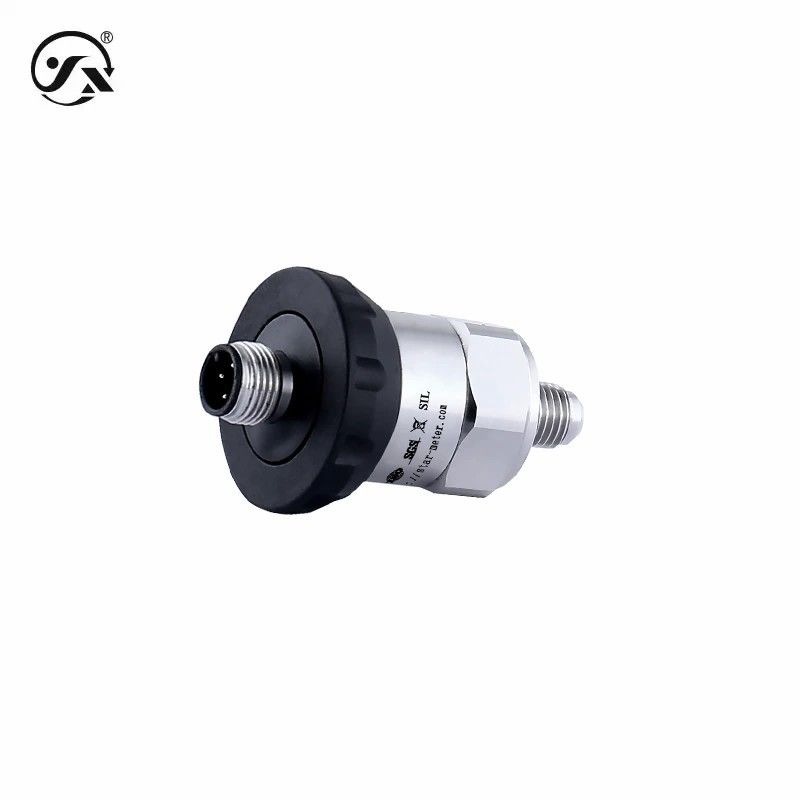

CYYZ41Y Pressure Transmitter Sensor 4mA-20mA 0-5VDC 1-5VDC Power Supply

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ41Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -100kPa~0~4MPa Output: 4~20mA, 0~5VDC, 1~5VDC
Power Supply: 9~32VDC Accuracy: 0.5%FS
Name: Pressure Transmitter Sensor
Highlight:

CYYZ41 Pressure Transmitter Sensor

,

Pressure Transmitter Sensor 4mA

,

Sensor Pressure Transmitter 20mA

CYYZ41Y Pressure Transmitter Range -100kPa~0~4MPa Output 4~20mA,0~5VDC,1~5VDC Power Supply 9~32VDC Accuracy 0.5%FS



Suitable for the refrigeration and air conditioning industry, the pressure transmitter type CYYZ41Y is fully metal-sealed by laser process, compatible with all common refrigerants, and its robust construction protects against mechanical effects such as shock and vibration. It also has diversified advantages such as range and electrical connection, which is convenient to match different working conditions.





Base parameters
Measuring medium Liquid or gas (compatible with contact material)
Pressure range -100kPa~0~4MPa (see range selection table for details)
Pressure mode Positive and negative pressure, sealing pressure (zero absolute pressure 101.3kPa)
Output signal 4~20mA,0~5VDC,1~5VDC
Supply voltage 9~32VDC
Media temperature -40~85℃
On-time 20ms
Accuracy class 0.5%FS(Reference conditions temperature 15~25°C, humidity 45~75%RH)
Stable performance ±0.2% FS/year
Temperature drift ±0.02%FS/℃(≥-10℃) ±0.05%FS/℃(<-10℃)
Degree of protection IP65 Note: The above protection level refers to the electrical connection achieved after it is complete
Durable performance 10X10⁶ times (lower range to upper range cycles)
Response frequency 100Hz
Overall weight ≈113g
Resolution 0.01%FS
Maximum power
Output signal 4~20mA,0~5VDC,1~5VDC,
Power supply range
Load characteristics
Voltage type ≥10kΩ
Current type Current load ≤{(Us-7.5)÷0.02}Ω(Us=Supply voltage2)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overall material
diaphragm 316L stainless steel (contact with the medium to be measured)
Process connection 316L stainless steel (contact with the medium to be measured)
enclosure 316L stainless steel
Press the nut ABS engineering plastics
Hirschmann joints ABS engineering plastics
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance: 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ500VDC
Dielectric strength: 500VAC
Output limits
The output is minimal 3.8mA,0,0.001VDC,0.001VDC
Output maximum 26mA,12VDC,5VDC
Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Product selection -Chinese (CN) PDF
Product selection -English (EN) PDF
Installation instructions -Chinese (CN) PDF
Installation instructions -English (EN) PDF
