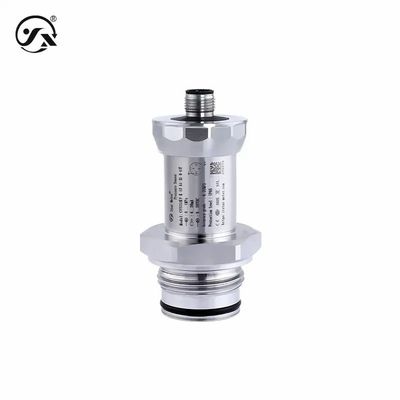

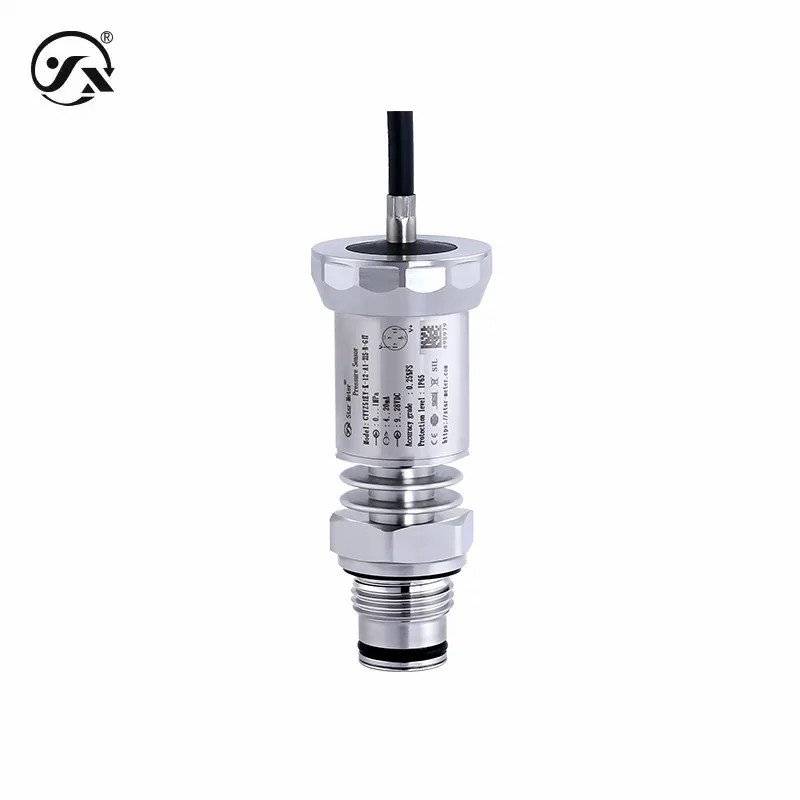

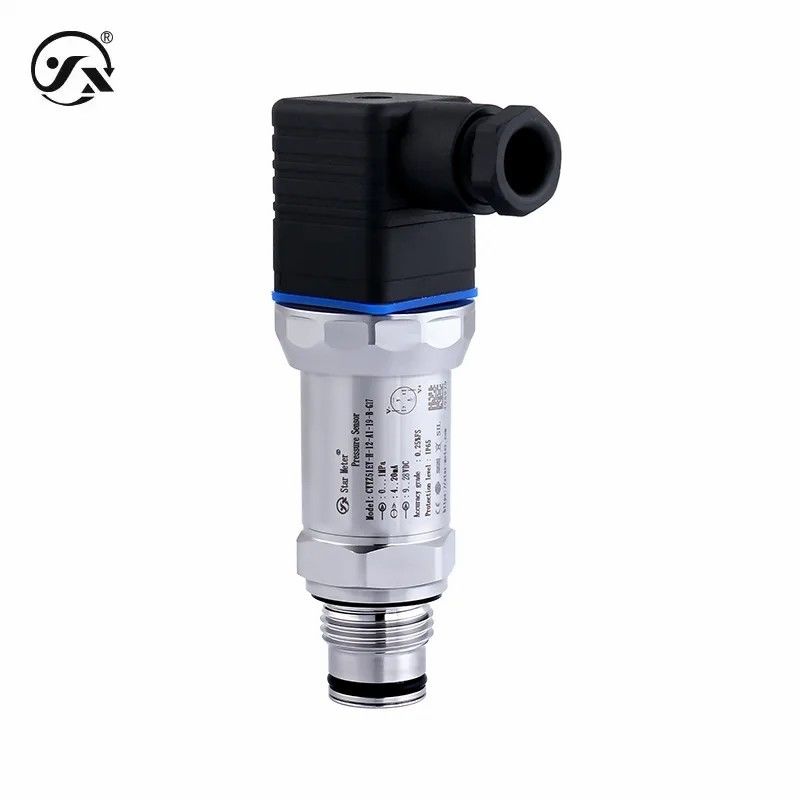

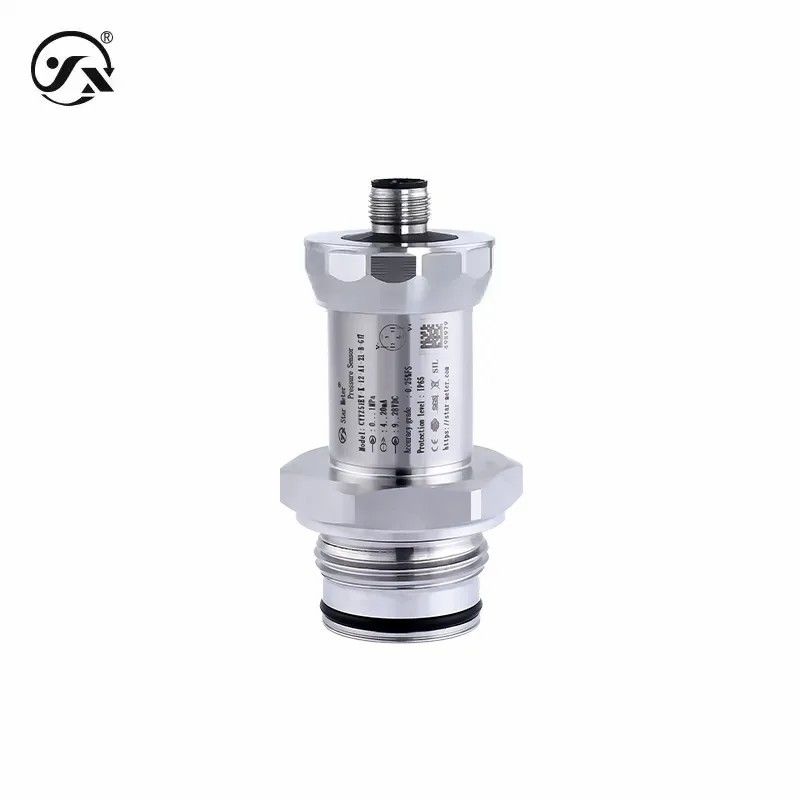

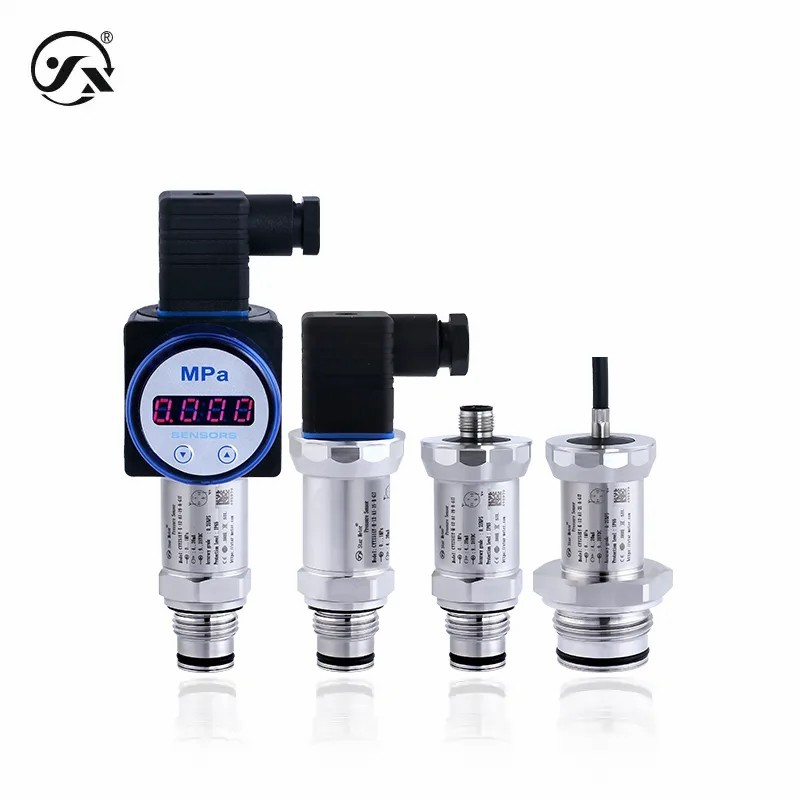

CYYZ51EY Flat Diaphragm Type Pressure Transmitter Range -0.1~0~60MPa Accuracy 0.25%FS 0.5%FS

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ51EY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -0.1~0~60MPa Output: 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC, 0.5~2.5VDC
Power Supply: 9~28VDC, 15~28VDC, 3~5VDC, 15~24VDC Accuracy: 0.25%FS, 0.5%FS
Name: Pressure Transmitter Sensor
Highlight:

Flat Diaphragm Type Pressure Transmitter

,

CYYZ51E Diaphragm Pressure Transmitter

CYYZ51EY Flat Diaphragm Type Pressure Transmitter Range -0.1~0~60MPa Accuracy 0.25%FS 0.5%FS mixed polluting media

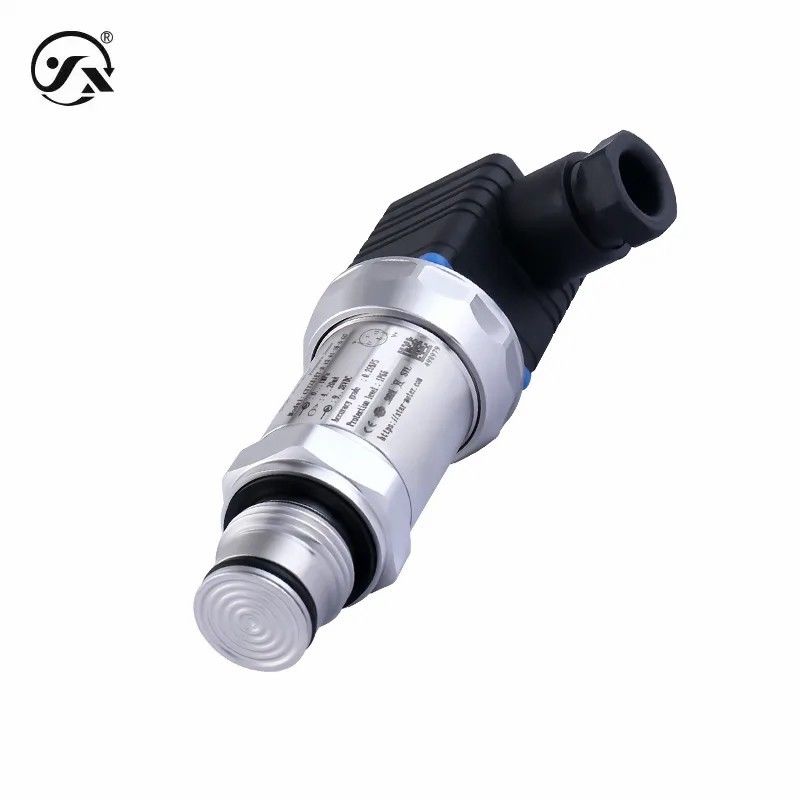

CYYZ51EY flat film type pressure transmitter is designed for measuring adhesion, crystallization, and mixing It was born by contaminating and other media. The flat membrane design is adopted, which effectively prevents the plugging of the impulse hole Stop up. The process connection is sealed at the lower end of the thread, so that the measuring medium and the connection thread part are connected Effective isolation, avoiding adhesion and mixed contamination of threaded connections. Optional intrinsically safe explosion-proof. It also has output signals, measuring ranges, pressure interfaces, electrical connections, and more It is convenient to match different working conditions.





Basic parameters
Measuring medium Liquids, fluids, gases (compatible with contact materials)
Measuring range -0.1~0~60MPa (see range selection table for details)
Type of pressure Gauge pressure, absolute pressure, negative pressure
Temperature compensation -10~70℃
Accuracy class 0.25%FS,0.5%FS
Frequency of response 5,30Hajj100Hajj
Stable performance ±0.1% FS/year
Temperature drift ±0.01%FS/°C (within temperature compensation)±0.05%FS/°C (outside temperature compensation)
Overall weight No display ≈ 190g with display ≈ 270g
Ingress protection IP65 (no display) IP54 (display) Note: The above protection level refers to the completion of the electrical connection
Output power
Output signal 4~20mA,RS485,0~10VDC,0~5VDC,1~5VDC,0.5~2.5VDC
Power supply range 9~28VDC,15~28VDC,3~5VDC,15~24VDC
Power range
Voltage type ≤0.02Us(W),≤0.008Us(W),≤0.001Us(W)
Current type ≤0.02Us(W)
Digital ≤0.02Us(W),≤0.015Us(W)
Load characteristics
Voltage type ≥10kΩ
Current type No display load ≤{(Us-7.5)÷0.02}Ω
With display load≤{(Us-12)÷0.02}Ω (Us=supply voltage)
Environmental conditions
Medium temperature -40~85℃
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(无冷凝无结露)
Overload capacity
Overload pressure 300%FS,200%FS,12kPa,50kPa,300kPa,480kPa,750kPa,800kPa,1.2MPa,2MPa
Burst pressure 600%FS,500%FS,400%FS,20kPa,200kPa,600kPa,900kPa,1.25MPa,2MPa,3MPa,5MPa,2MPa,3MPa,5MPa
Overall material
diaphragm 316L stainless steel (in contact with the medium to be measured)
Process connections 316 stainless steel (in contact with the medium to be measured)
enclosure 304 stainless steel
O-rings Nitrile rubber (contact with the medium to be measured)
ED CIRCLE Nitrile rubber (contact with the medium to be measured)
Displays the shell ABS Engineering Plastics (LED Display)
Hersmann connectors ABS engineering plastics
Mechanical stability
Vibration resistance 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact Resistance: 500g/ms meets IEC60068-2-27 standard
Electrical protection
Short-circuit protection eternity
Anti-polarity protection No damage, but no work
Insulation resistance ≥100MΩ500VDC
Dielectric Strength: 500VAC
Output limits
The output is minimal 4mA,0,0.001VDC,0.05VDC
The output is maximum 20mA,2000,10VDC,5VDC
