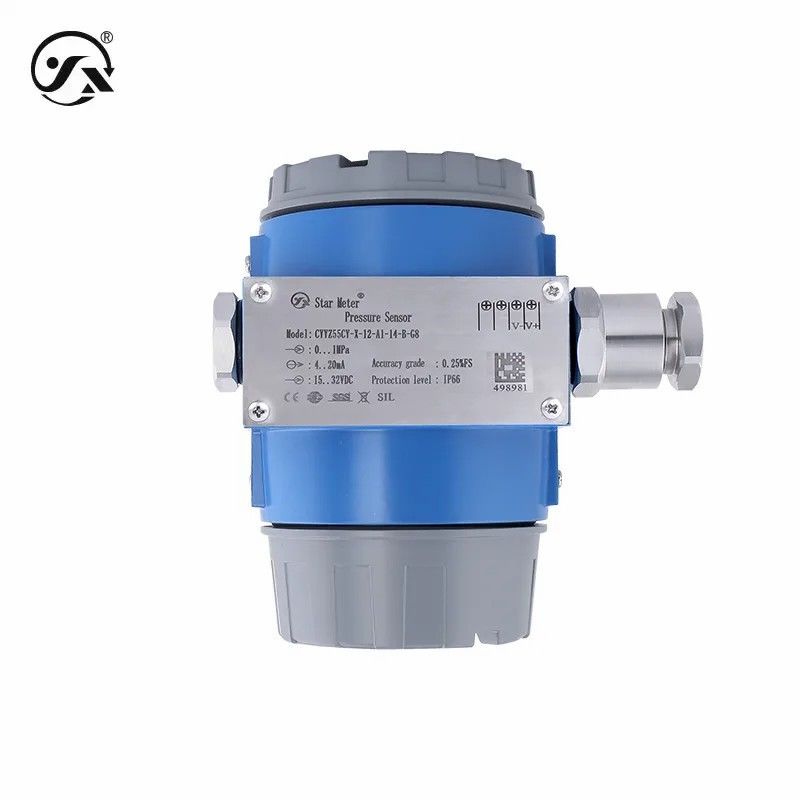

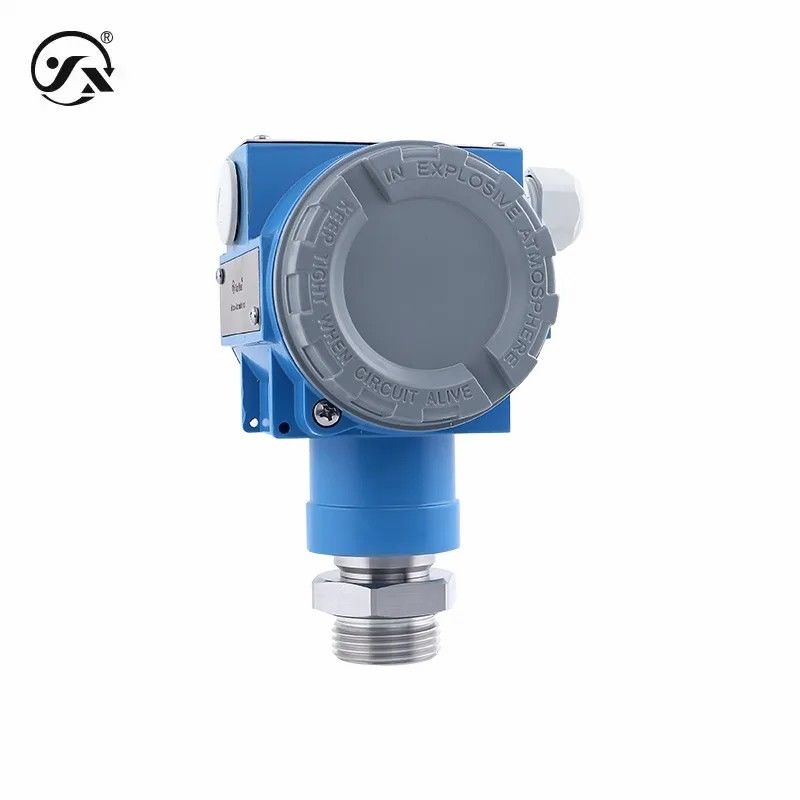

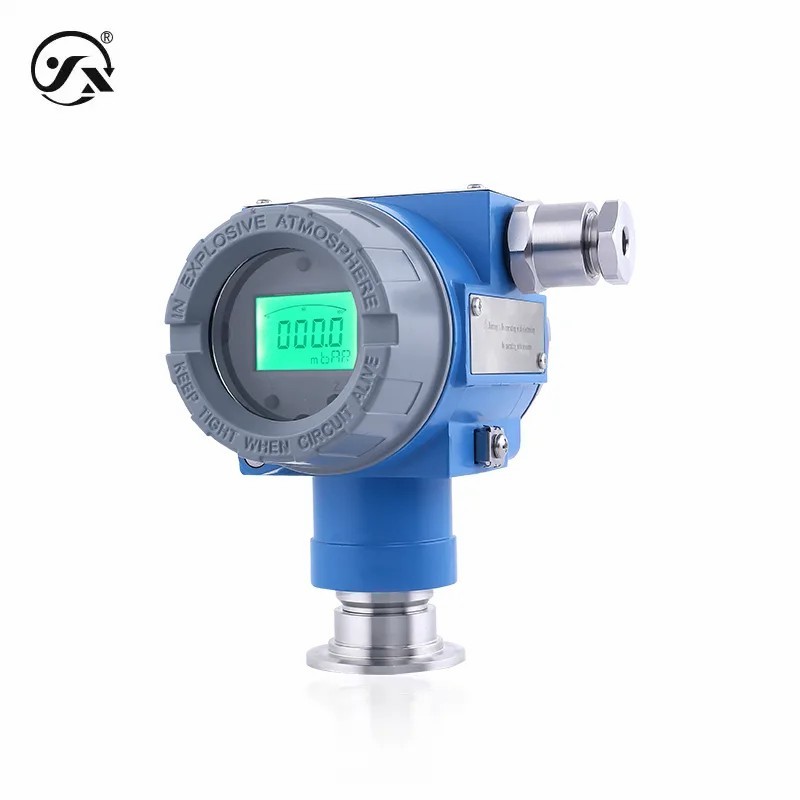

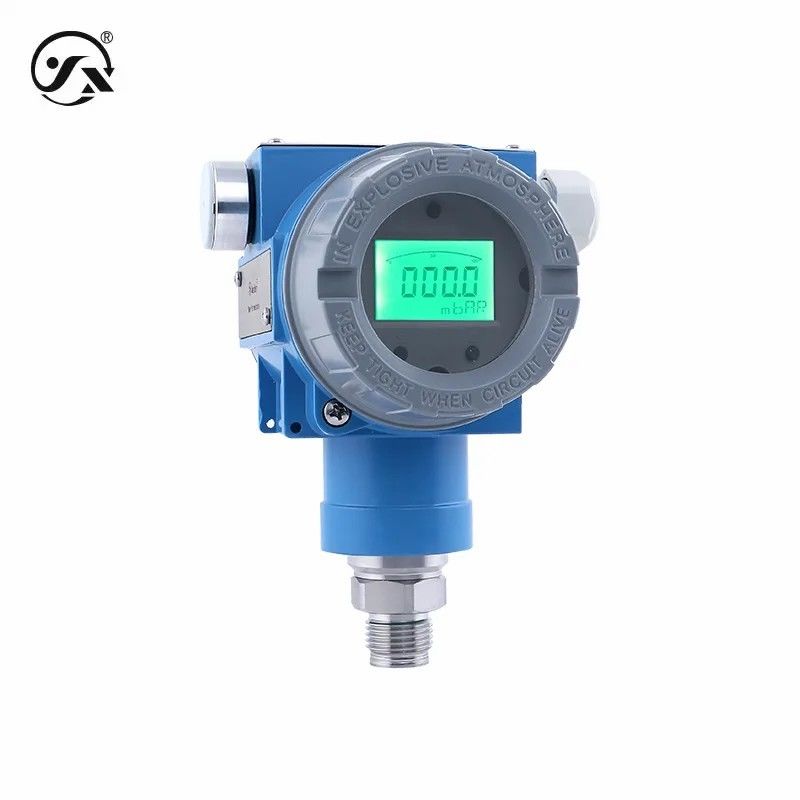

CYYZ55CY Flat Film Type Pressure Transmitter Sensor -100kPa-0-6MPa 0.1%FS 0.25%FS 0.5%FS

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ55CY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -100kPa~0~6MPa Output: 4~20mA、4~20mA HART、RS485、0~10VDC、0~5VDC、1~5VDC
Power Supply: 9~32VDC、15~32VDC、13~32VDC、15~24VDC Accuracy: 0.1%FS、0.25%FS、0.5%FS
Name: Pressure Transmitter Sensor
Highlight:

CYYZ55C Pressure Transmitter Sensor

,

Flat Film Type Pressure Transmitter Sensor

,

Pressure Transmitter Sensor 0.1%FS

CYYZ55CY Flat Film Type Pressure Transmitter Range -100kPa~0~6MPa Accuracy 0.1%FS 0.25%FS 0.5%FS Paper Industry

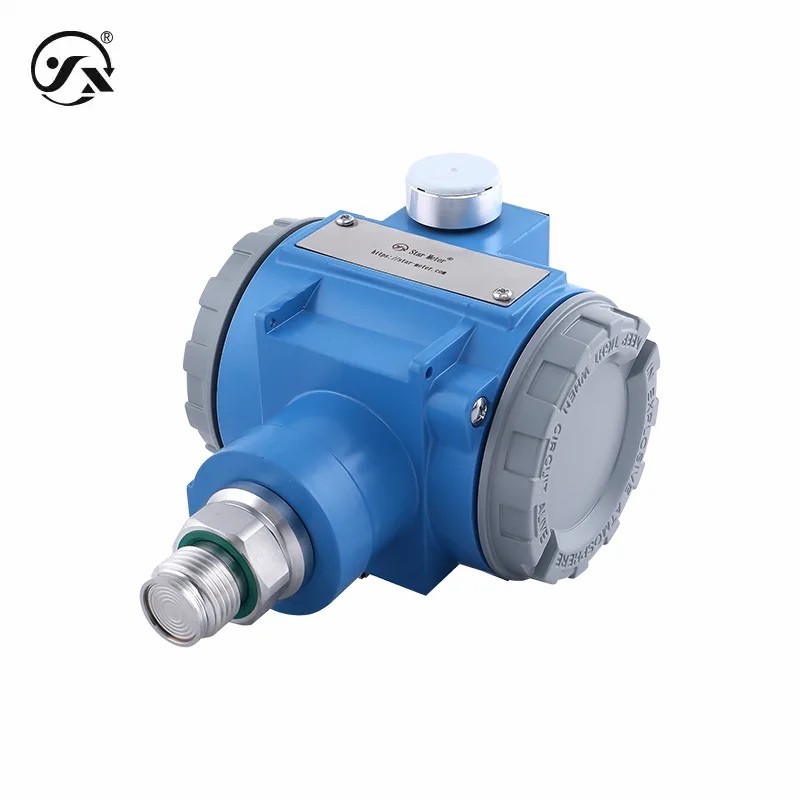

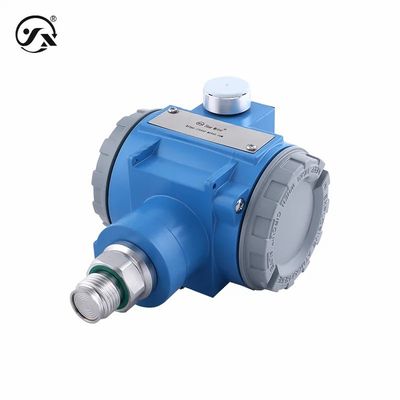

The CYYZ55C pressure transmitter was born for measuring viscous or colloidal media. The design of the impulse hole is eliminated, which effectively prevents the blockage of the impulse hole. It has a variety of explosion-proof function options, intrinsically safe explosion-proof, isolation explosion-proof, intrinsically safe dust explosion-proof, and can also choose HART protocol communication, cost-effective. It also has diversified advantages such as output signal, range and pressure interface, which is convenient to match different working conditions.





Base parameters
Measuring medium Liquids, fluids, gases (compatible with contact materials)
Pressure range -100kPa~0~6MPa (see range selection table for details)
Pressure mode Gauge pressure
Media temperature -40~85℃
On-time 20ms
Stable performance ± 0.1% FS/year
Temperature drift ±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)
Ex type Flameproof Ex d II. C T6 Gb Flameproof Dust Type Ex tb IIIC T80°C Db

Intrinsically Safe Ex ia II.C T6 Ga (4~20mA/4~20mA HART output only)
Dust intrinsically safe Ex iaD 20 T80°C (4~20mA/4~20mA HART output only).
NOTE: Intrinsically safe must be powered by a safety barrier or intrinsically safe power supply
Degree of protection IP66
Note: The above protection level refers to the electrical connection achieved after the electrical connection is complete
Durable performance 10X10⁶ times (lower range to upper range cycles)
Response frequency Analog signal output≤ 30Hz digital signal output≤ 5Hz HART communication ≤10Hz
Overall weight No display≈ 1.25kg with display ≈1.4kg
resolution Analog output 0.01%FS, digital output 0.05%FS
Output power
Power supply range 9~32VDC,13~32VDC,15~32VDC,15~24VDC
Current type ≤0.02Us(W)
Load characteristics
Current type Load ≤{(Us-7.5)÷0.02}Ω (US=Supply voltage)
HART current type Load ≤ {(Us-12)÷0.02}Ω(Us=Supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overall material
diaphragm 316L stainless steel (contact with the medium to be measured)
Process connection 304 stainless steel (contact with the medium to be measured)
enclosure Die-cast aluminum
Seals Seen pressure and blasting charts (contact with the medium being measured)
Display window ≈ 6mm explosion-proof glass
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
