CYYZ61AY Hygienic Pressure Transmitter 0-10kPa-4MPa Pharmaceutical Industry Accuracy 0.25%FS 0.5%FS

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ61AY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: 0~10kPa~4MPa Output: 4~20mA、RS485、0~10VDC、0~5VDC、1~5VDC、0.5~2.5VDC
Power Supply: 9~36VDC、15~36VDC、3~5VDC Accuracy: 0.25%FS、0.5%FS
Name: Pressure Transmitter Sensor
Highlight:

CYYZ61A Hygienic Pressure Transmitter

,

Hygienic Pressure Transmitter 4MPa

CYYZ61AY Hygienic Pressure Transmitter Measuring Range 0~10kPa~4MPa Pharmaceutical Industry Accuracy 0.25%FS 0.5%FS

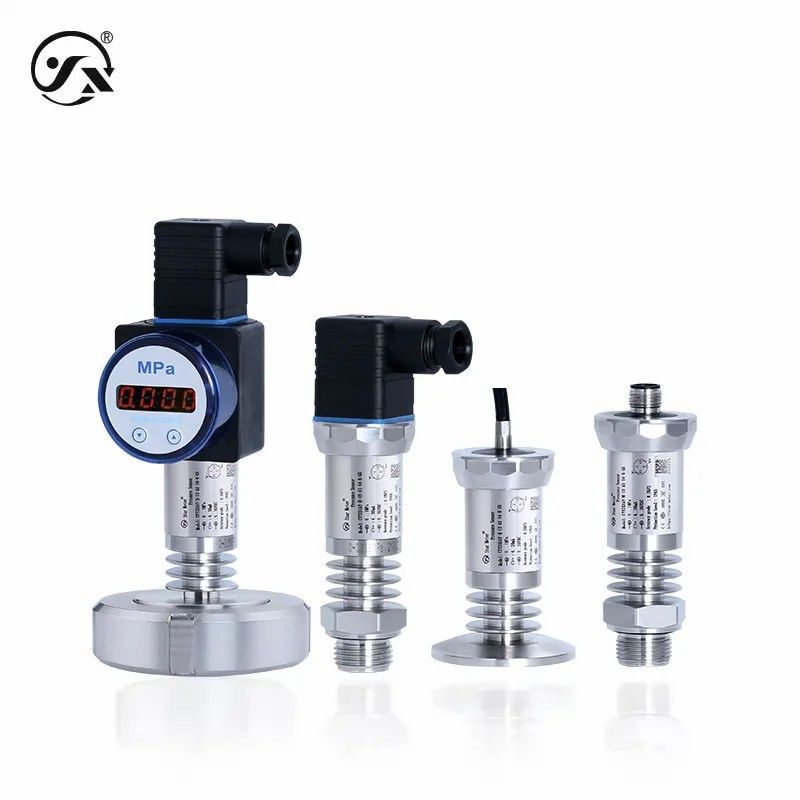

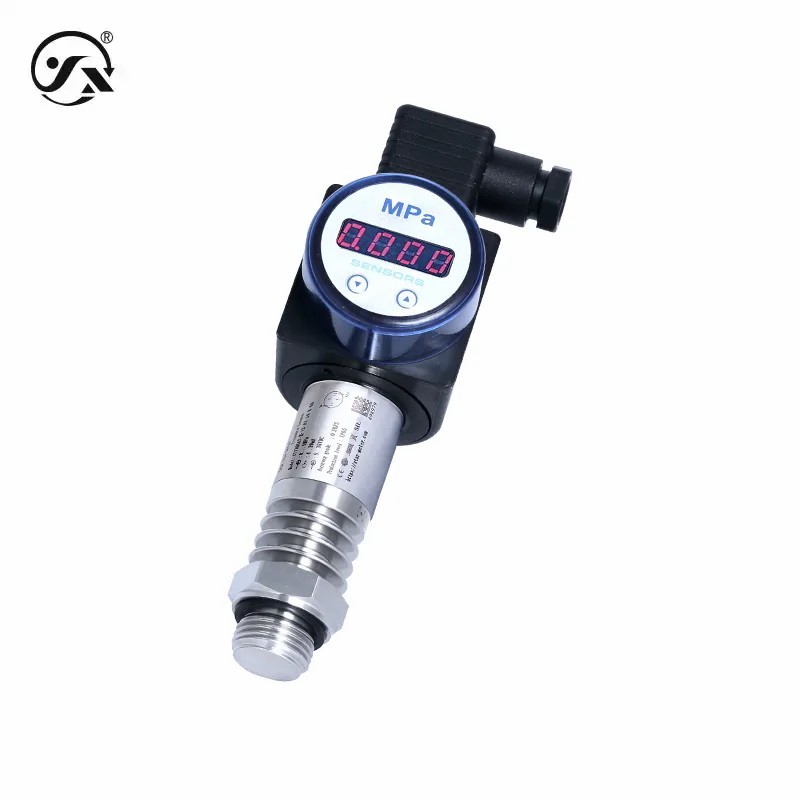

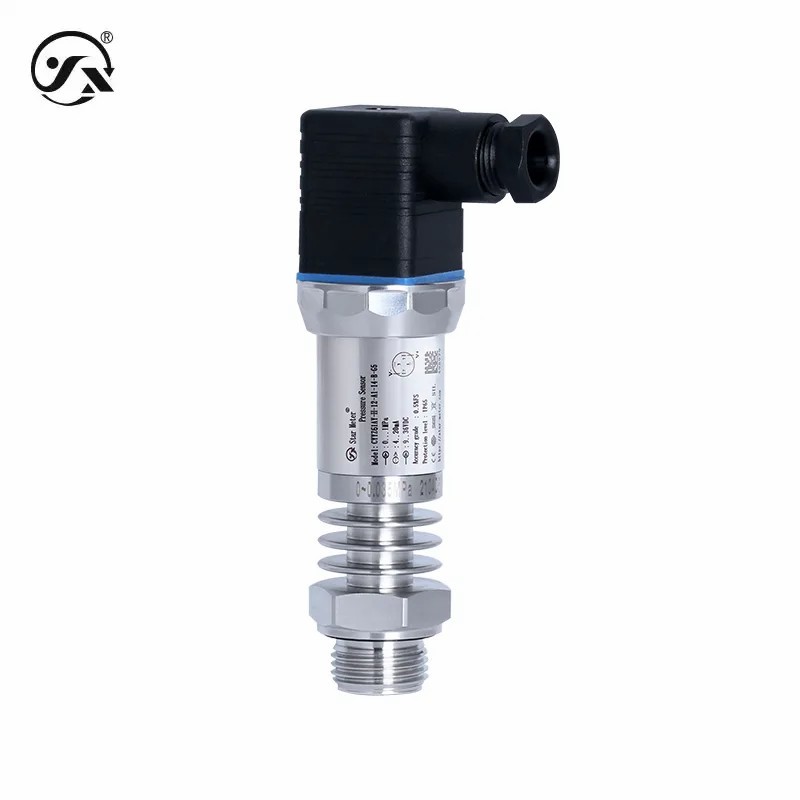

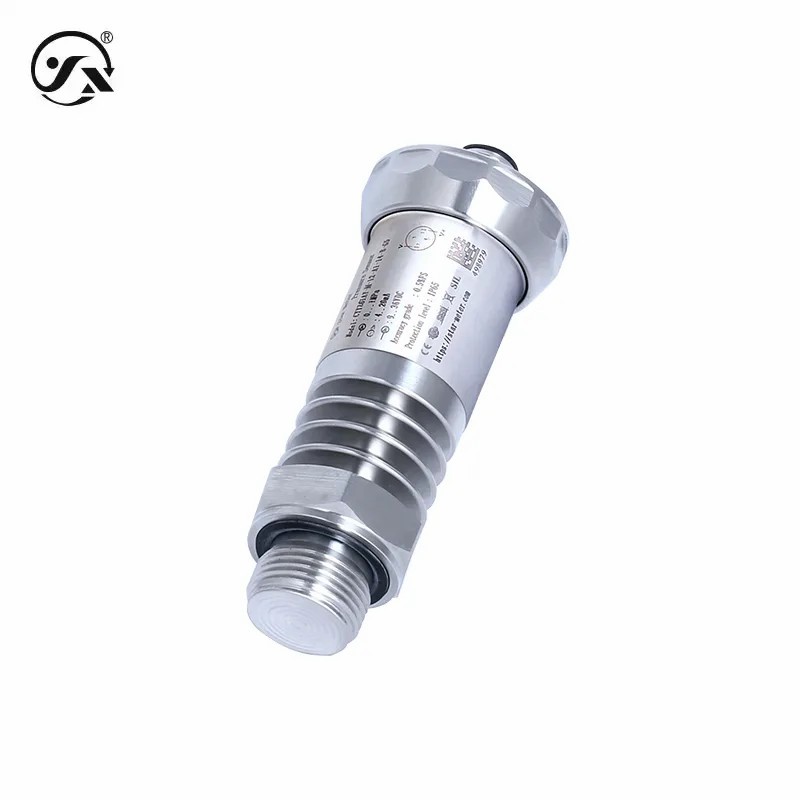

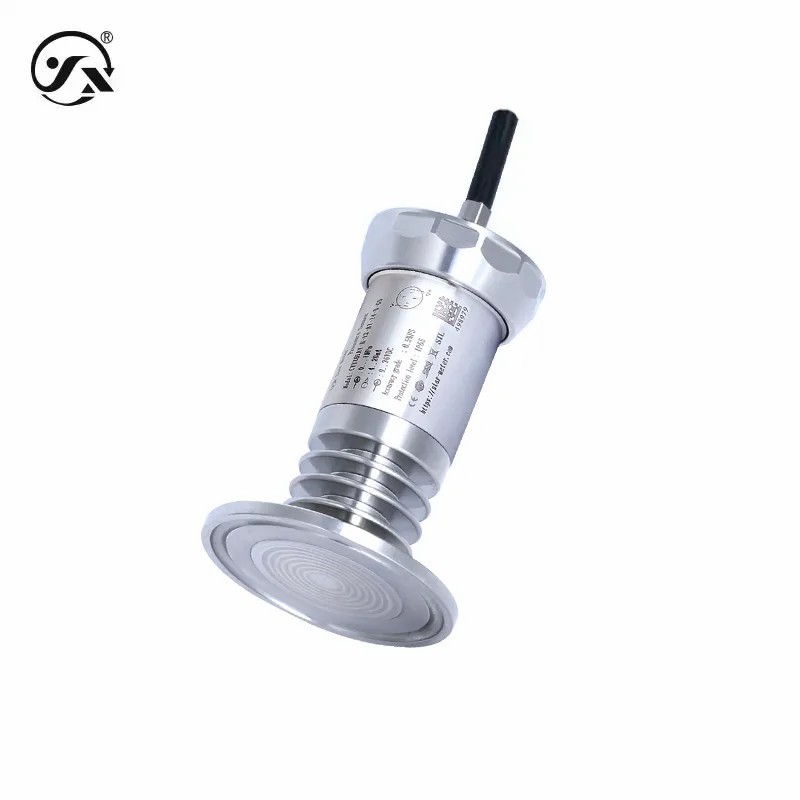

CYYZ61AY hygienic pressure transmitter is suitable for hygienic application sites, and the wetted part and diaphragm are made of 316L material and laser welding leveling process to meet the application requirements of the hygienic industry. Equipped with a variety of hygienic process connections for easy adaptation to different working conditions.





Base parameters
Measuring medium Liquids, fluids, gases (compatible with contact materials)
Measuring range 0~10kPa~4MPa(see range selection table for details)
Type of pressure Gauge pressure
Temperature compensation -10~70℃
Accuracy class 0.25%FS,0.5%FS
Response frequency 5Hz,30Hz,100Hz
Stable performance ± 0.1% FS/year
Temperature drift ±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)
Overall weight No display≈ 190g has a display ≈ 270g
Degree of protection IP65 (no display) IP54 (with display) Note: The above protection level refers to the electrical connection is achieved after the electrical connection is complete
Output power
Output signal 4~20mA,RS485,0~10VDC,0~5VDC,1~5VDC,0.5~2.5VDC
Power supply range 9~36VDC,15~36VDC,3~5VDC
Power range
Voltage type ≤0.02Us(W),≤0.008Us(W),≤0.001Us(W)
Current type ≤0.02Us(W)
Digital ≤0.02Us(W),≤0.015Us(W)
Load characteristics
Voltage type ≥10kΩ
Current type No display load≤{(US-7.5)÷0.02}Ω
with display load≤{(US-12)÷0.02}Ω (US=supply voltage)
Environmental conditions
Media temperature -40~130℃
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overload capacity
Overload pressure 200% full scale, 300% FS
Burst pressure 600%FS,500%FS,400%FS
Overall material
diaphragm 316L stainless steel (contact with the medium to be measured)
Process connection 316 stainless steel (contact with the medium to be measured)
enclosure 316 stainless steel
Display the shell ABS Engineering Plastics (LED Display)
Hirschmann joints ABS engineering plastics
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance: 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ500VDC
Dielectric strength: 500VAC
Output limits
The output is minimal 4mA,0,0.001VDC,0.05VDC
Output maximum 20mA,2000,10VDC,5VDC
