CYYZ61EY Hygienic Pressure Transmitter Accuracy 0.25%FS 0.5%FS Medical Technology

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ61EY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -0.1~0~4MPa Output: 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC, 0.5~2.5VDC
Power Supply: 9~28VDC, 15~28VDC, 3~5VDC, 15~24VDC Accuracy: 0.25%FS, 0.5%FS
Name: Pressure Transmitter Sensor
Highlight:

CYYZ61E Hygienic Pressure Transmitter

,

Hygienic Pressure Transmitter Medical Technology

CYYZ61EY Hygienic Pressure Transmitter Pressure Range -0.1~0~4MPa Accuracy 0.25%FS 0.5%FS Medical Technology

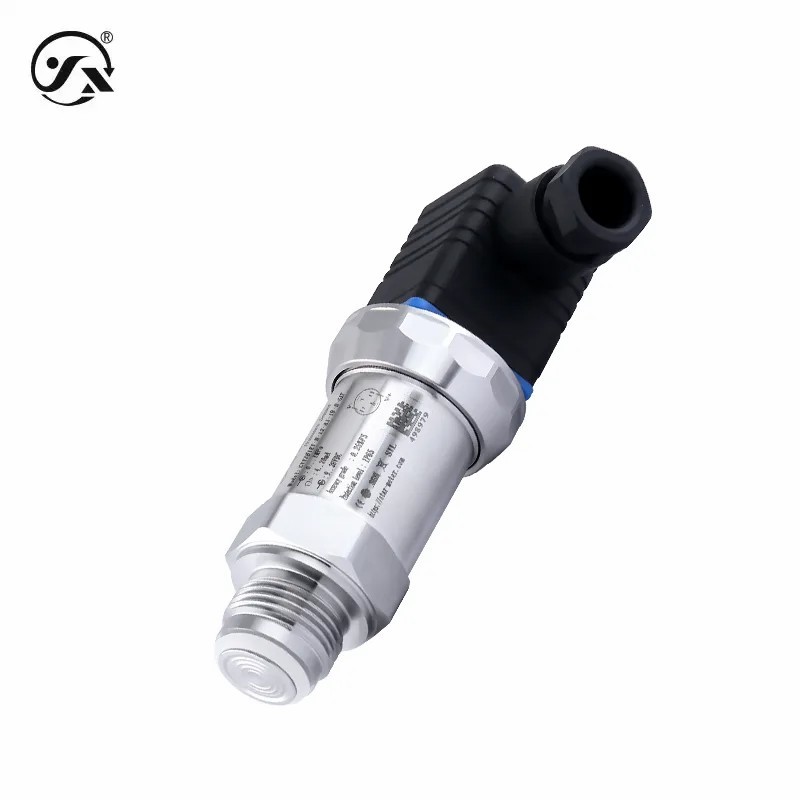

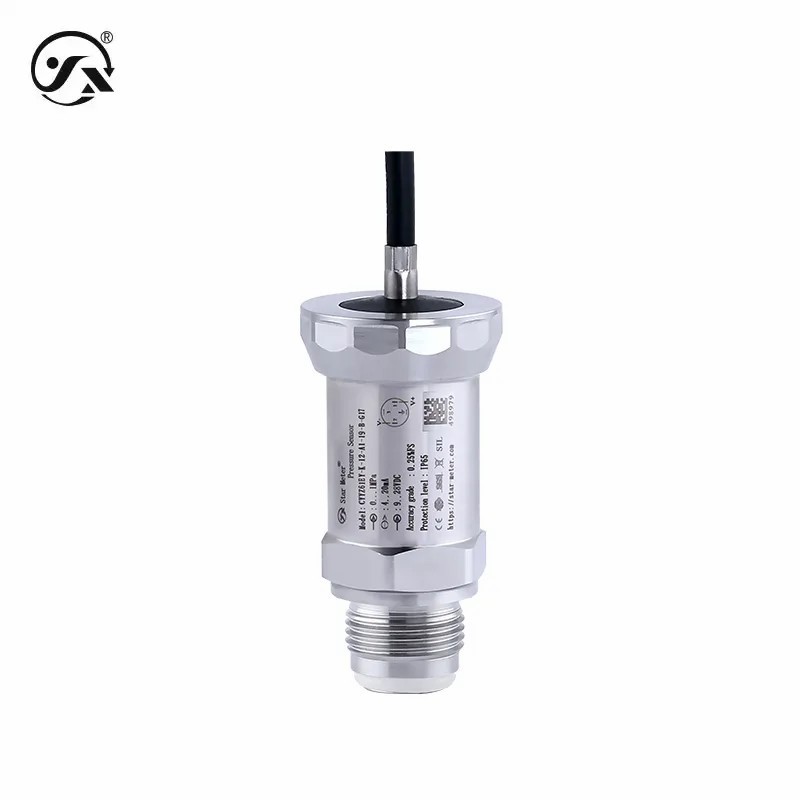

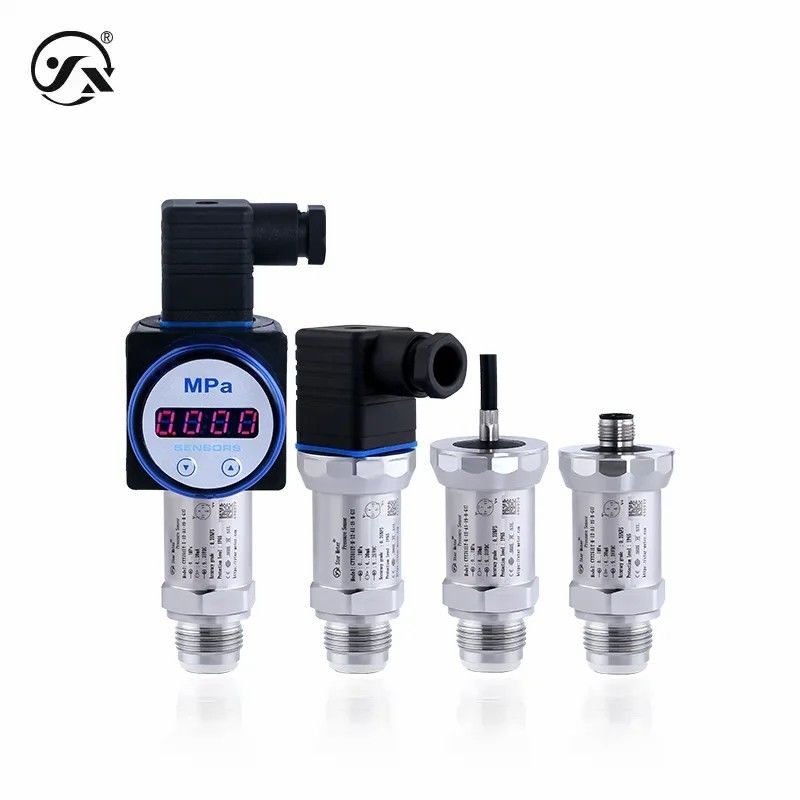

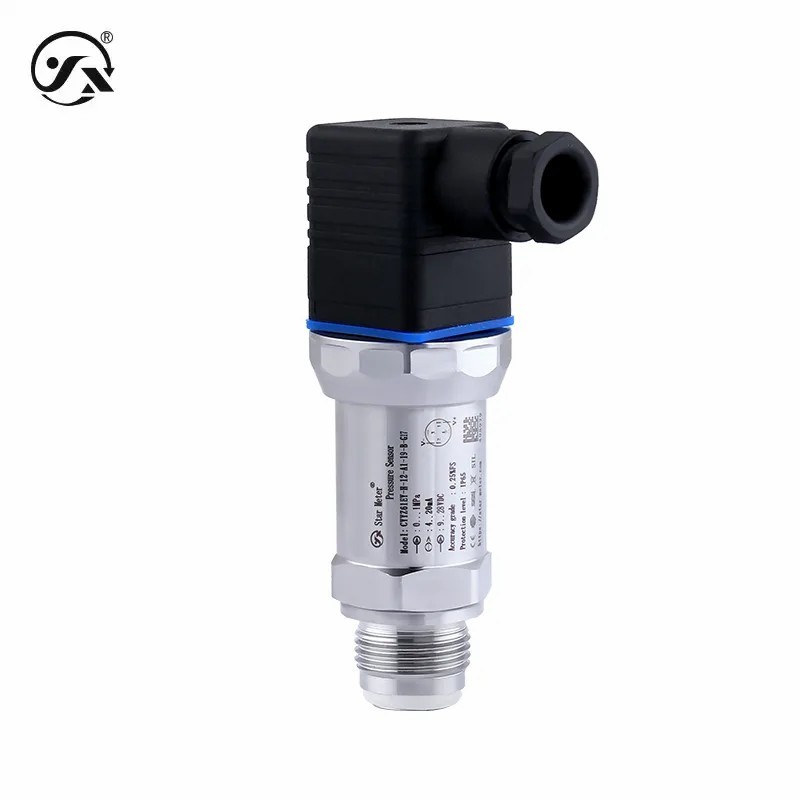

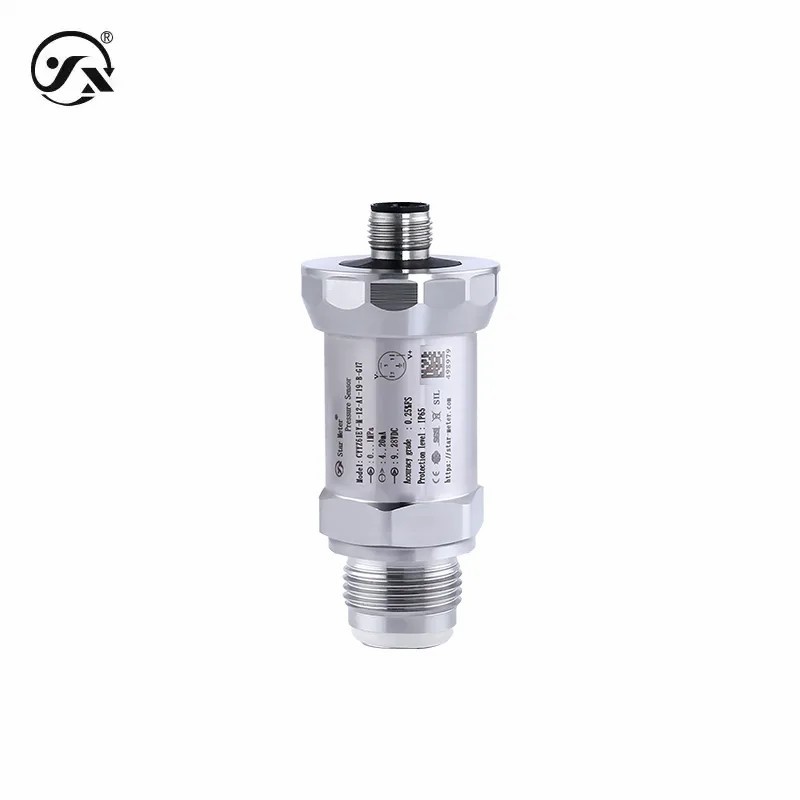

The CYYZ61EY hygienic pressure transmitter is suitable for applications with hygienic requirements, and the wetted part and diaphragm are made of 316L material. Laser welding process is adopted, and there is no sanitary dead end. Suitable for the pharmaceutical and food industries. Optional intrinsically safe explosion-proof.





Basic parameters
Measuring medium Liquids, gases (compatible with contact materials)
Pressure range -0.1~0~4MPa (see range selection table for details)
Pressure mode Gauge pressure, negative pressure, absolute pressure
Medium temperature -40~85℃
Turn-on time 20ms
Stable performance ±0.1% FS/year
Temperature compensation -10~70℃
Temperature drift ±0.01%FS/°C (within temperature compensation) ±0.05%FS/°C (outside temperature compensation)
Explosion-proof type Intrinsically safe Ex ia II.C T6 Ga (4~20mA output only)
Ingress protection IP65 (no display) IP54 (display) Note: The above protection level refers to the completion of the electrical connection
Durable performance 1X10⁶ cycles (number of cycles from lower range to upper range)
Overall weight No display≈ 190g with display≈270g
resolution Analog output 0.01%FS, digital output 0.05%FS
Output power
Output signal 4~20mA,RS485,0~10VDC,0~5VDC,1~5VDC,0.5~2.5VDC
Power supply range 9~28VDC,15~28VDC,3~5VDC,15~24VDC
Accuracy class
Measuring range≥ 100kPa 0.25%
10kPa≤ range < 100kPa 0.5%FS
Header accuracy 0.5%FS digital tube (LED) display
Frequency of response
RS485 output 5Hz
Absolute pressure and negative pressure 30Hz
The range ≤ 10 kPa 30Hz
other 100Hz
Power range
Voltage type ≤0.02Us(W),≤0.008Us(W),≤0.001Us(W)
Current type ≤0.02Us(W)
Digital ≤0.02Us(W),≤0.015Us(W)
Load characteristics
Voltage type ≥10kΩ
Current type No display load ≤{(Us-7.5)÷0.02}Ω
With display load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH (no condensation, no condensation)
Overload capacity
Overload pressure 300%FS,200%FS,12kPa,50kPa,300kPa,480kPa,750kPa,800kPa,1.2MPa,2MPa
Burst pressure 600%FS,500%FS,400%FS,20kPa,200kPa,600kPa,900kPa,1.25MPa,2MPa,3MPa,5MPa,2MPa,3MPa,5MPa
Overall material
diaphragm 316L stainless steel (in contact with the medium to be measured)
Process connections 316 stainless steel (in contact with the medium to be measured)
enclosure 304 stainless steel
O-rings Nitrile rubber (contact with the medium to be measured)
Displays the shell ABS Engineering Plastics (LED Display)
Hersmann connectors ABS engineering plastics
Mechanical stability
Vibration resistance 10g(20… 2000Hz) in accordance with the IEC60068-2-6 standard
Impact Resistance: 500g/ms meets IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Reverse polarity protection No damage, but no work
Insulation resistance ≥100MΩ 500VDC
Dielectric Strength: 500VAC
Output limits
The output is minimal 4mA,0,0.001VDC,0.05VDC
The output is maximum 20mA,2000,10VDC,5VDC
