CYYZ66Y Hygienic Pressure Transmitter 0.25%FS 0.5%FS For Food And Beverage Industry

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ66Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: 0~10kPa~4MPa Output: 4~20mA、RS485、0~10VDC、0~5VDC、1~5VDC
Power Supply: 9~36VDC、15~36VDC Accuracy: 0.25%FS、0.5%FS
Name: Pressure Transmitter Sensor
Highlight:

CYYZ66 Hygienic Pressure Transmitter

,

Hygienic Pressure Transmitter 0.25%FS

,

Hygienic Pressure Transmitter 0.5%FS

CYYZ66Y Hygienic Pressure Transmitter Measuring Range 0~10kPa~4MPa Accuracy 0.25%FS 0.5%FS Food And Beverage Industry

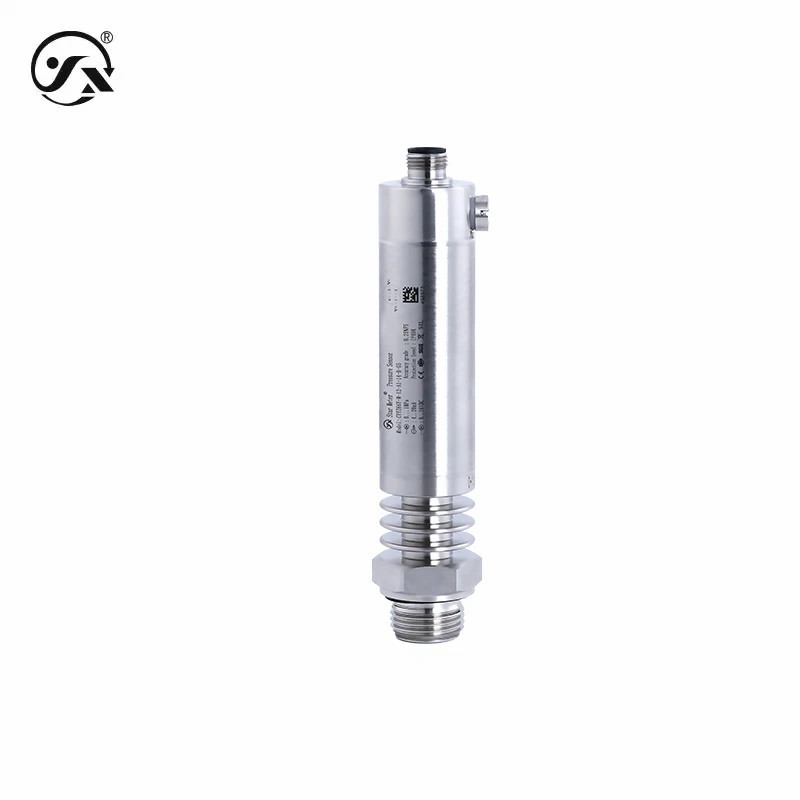

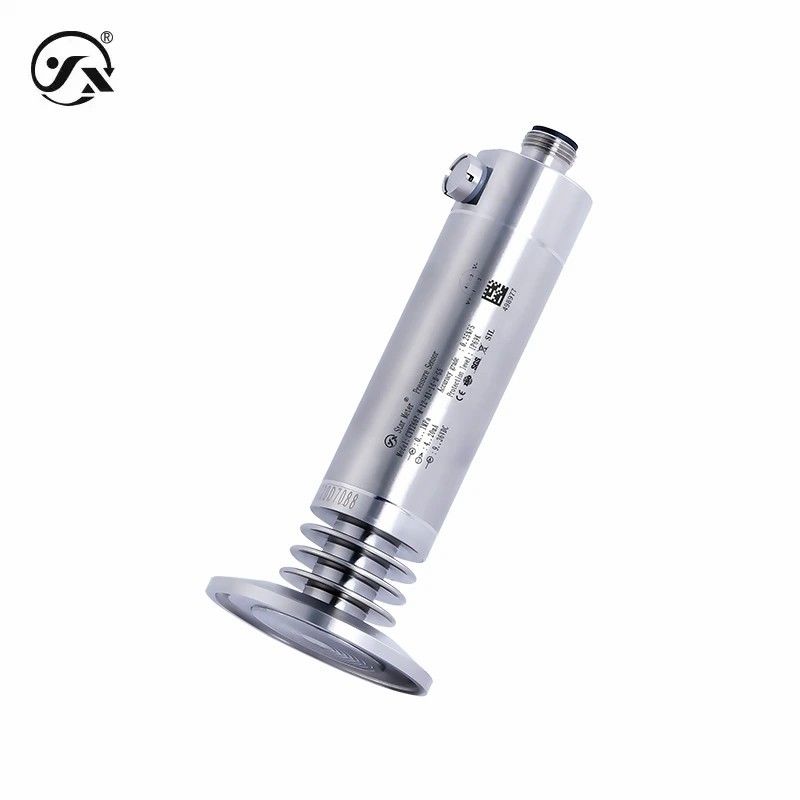

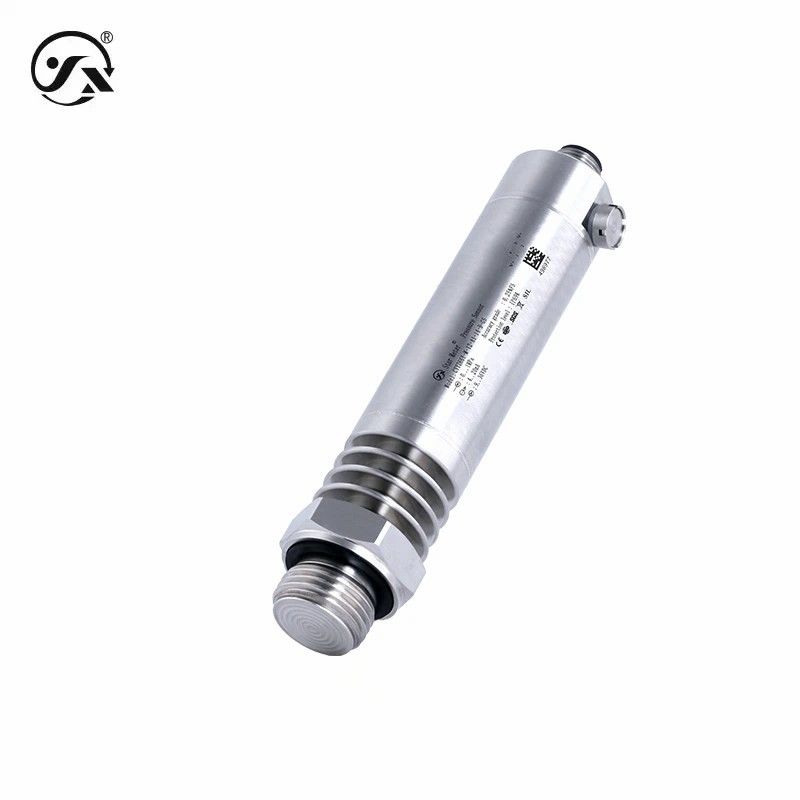

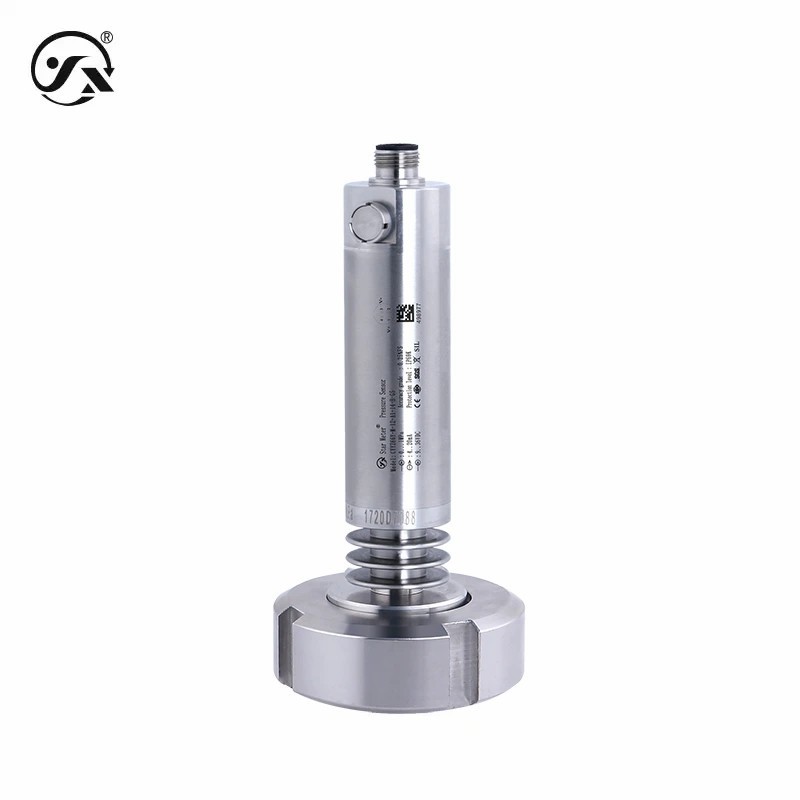

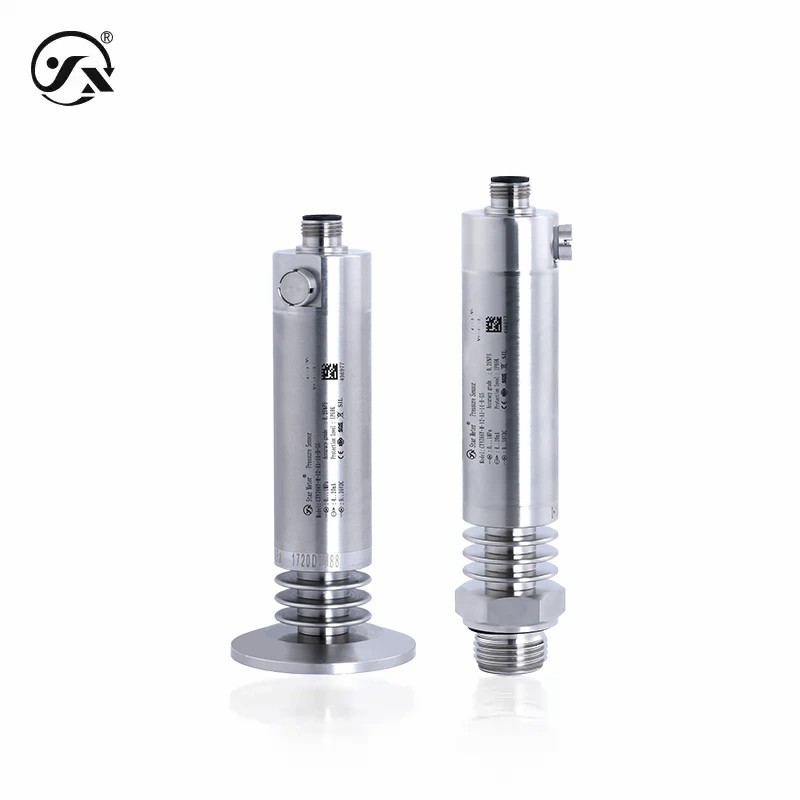

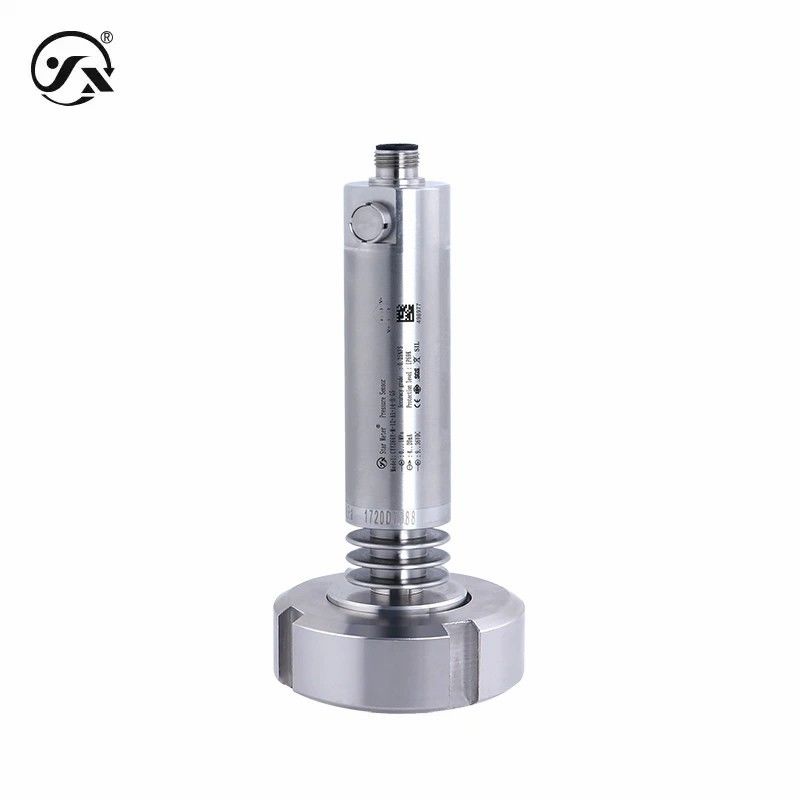

CYYZ66Y hygienic pressure transmitter is suitable for hygienic application sites, the whole 316L material, using laser welding process, no sanitary dead angle. The protection level reaches IP69K to meet the washing conditions, and it is equipped with a variety of hygienic process connections, which is convenient to match different working conditions.





Base parameters
Measuring medium Liquid or gas (compatible with contact material)
Measuring range 0~10kPa~4MPa(see range selection table for details)
Type of pressure Gauge pressure
Temperature compensation -10~70℃
Accuracy class 0.25%FS,0.5%FS
Response frequency 5Hz,30Hz
Stable performance ± 0.1% FS/year
Temperature drift ±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)
Overall weight ≈270g
resolution Analog output 0.01%FS, digital output 0.05%FS
Degree of protection IP69K Note: The above protection level refers to the electrical connection after it is complete
Output power
Output signal 4~20mA,RS485,0~10VDC,0~5VDC,1~5VDC
Power supply range 9~36VDC,15~36VDC
Power range
Current type ≤0.02Us(W)
Digital ≤0.015Us(W)
Voltage type ≤0.008Us(W)
Load characteristics
Current type Current type load ≤{(Us-7.5)÷0.02(Us=Supply voltage 2)}Ω
Environmental conditions
Media temperature -40~130℃
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overload capacity
Overload pressure 300% FS, 200% full scale
Burst pressure 600%FS,500%FS,400%FS
Overall material
diaphragm 316L stainless steel (contact)
Process connection 316 stainless steel (contact)
enclosure 316 stainless steel (contact)
Mechanical stability
Seismic performance 10g(20… 2000Hz)
Impact resistance: 500g/ms
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ500VDC
Dielectric strength: 500VAC
Output limits
The output is minimal 4mA,0,0.001VDC,0.05VDC
Output maximum 20mA,2000,10VDC,5VDC
Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Product selection -Chinese (CN) PDF
Product selection -English (EN) PDF
Installation instructions -Chinese (CN) PDF
Installation instructions -English (EN) PDF
Protocol -Chinese (CN) PDF
