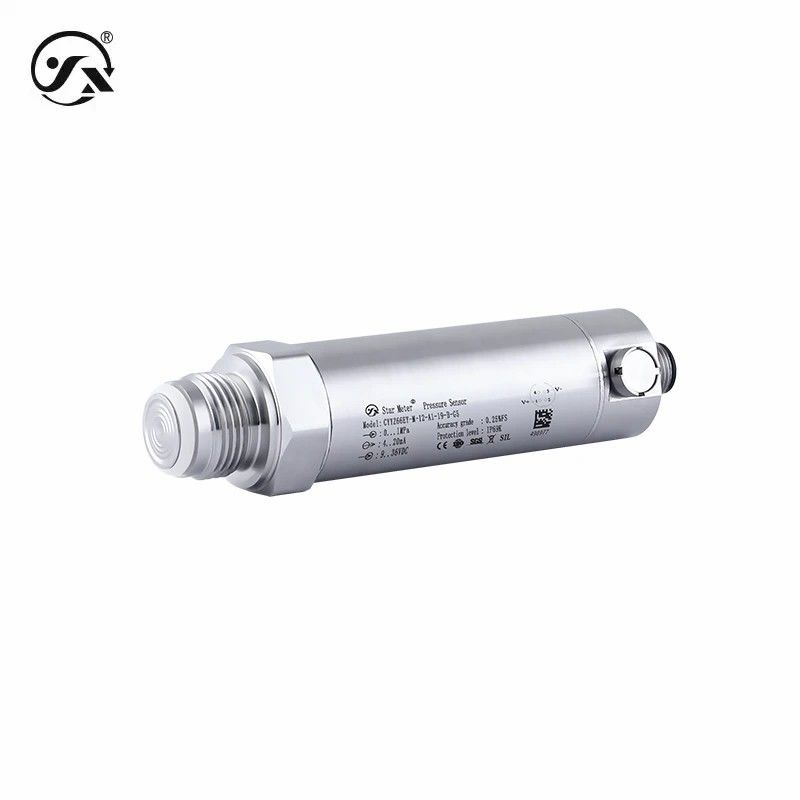

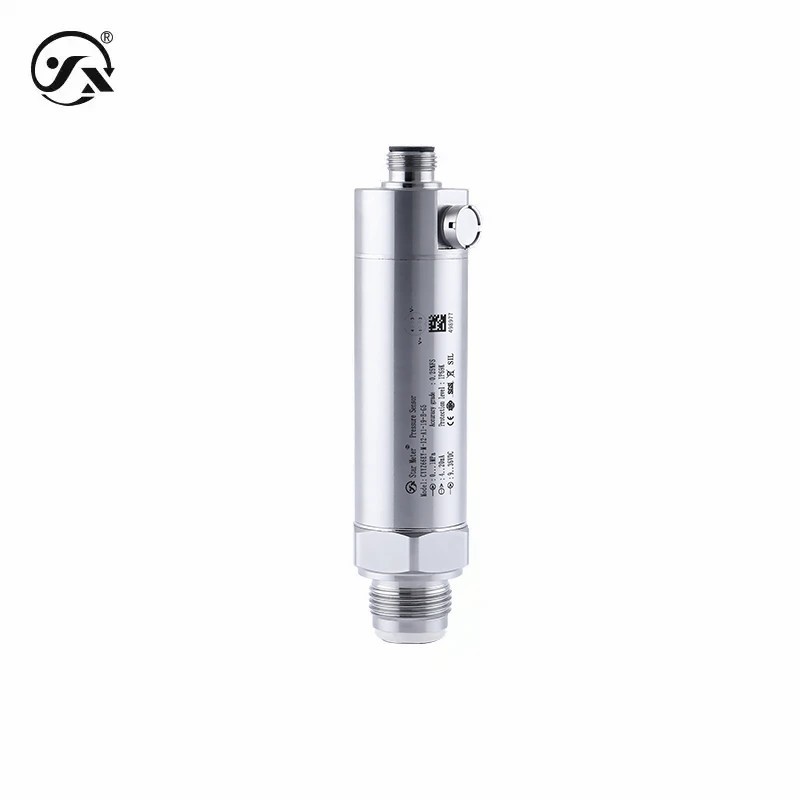

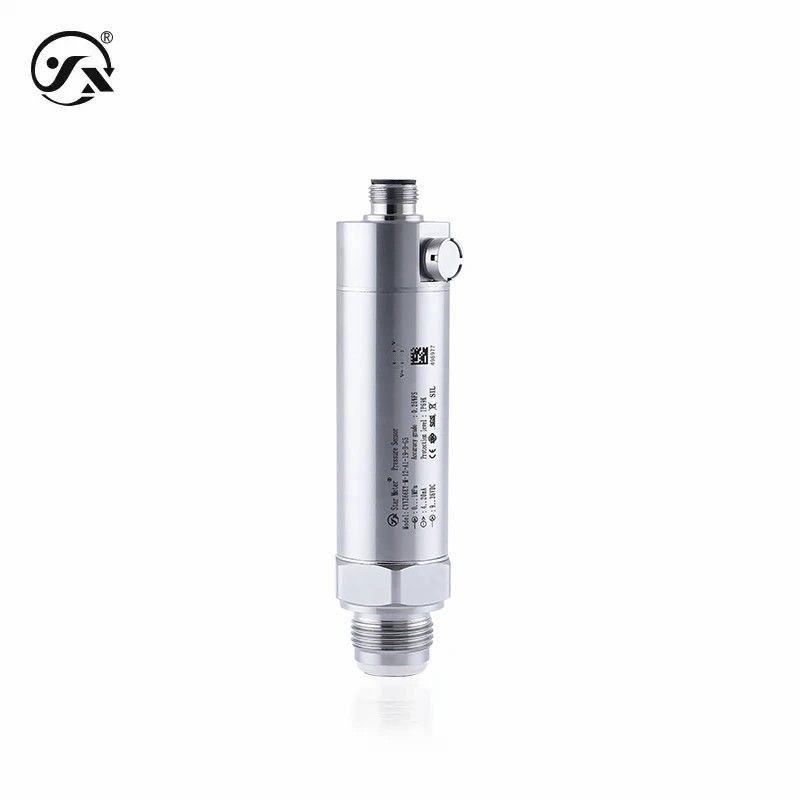

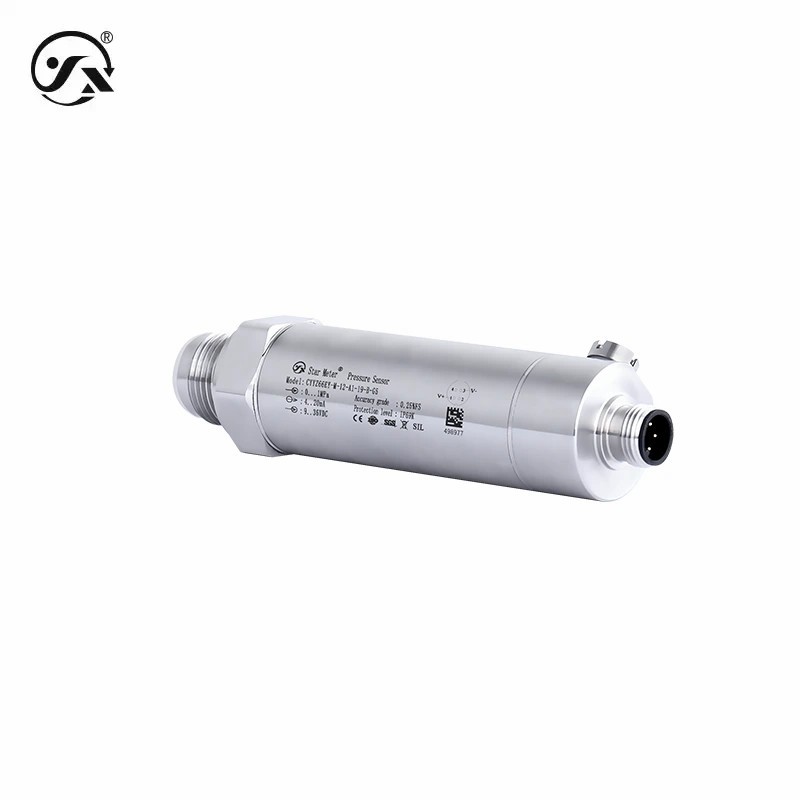

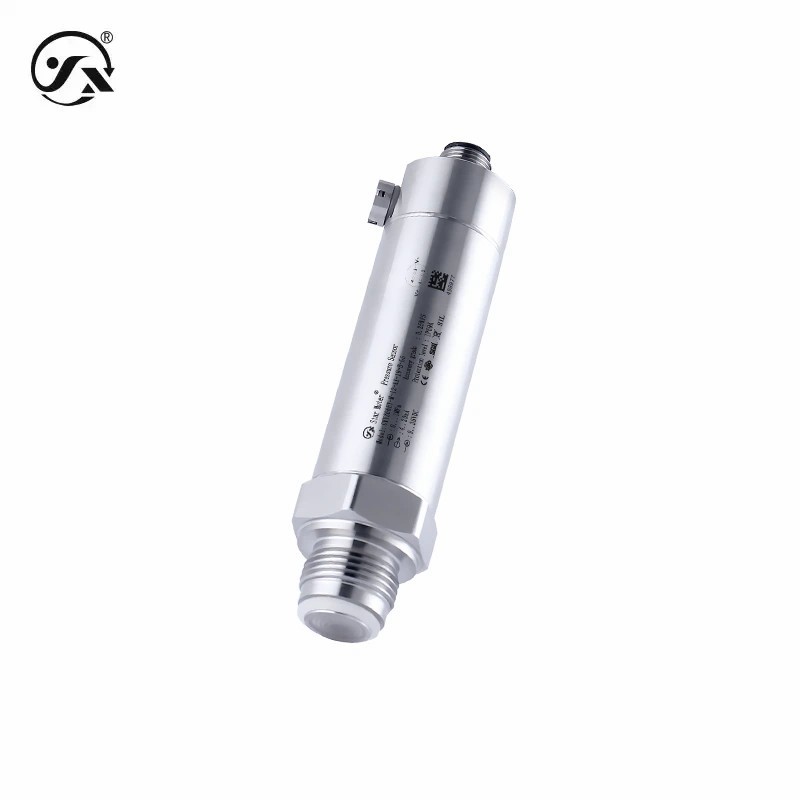

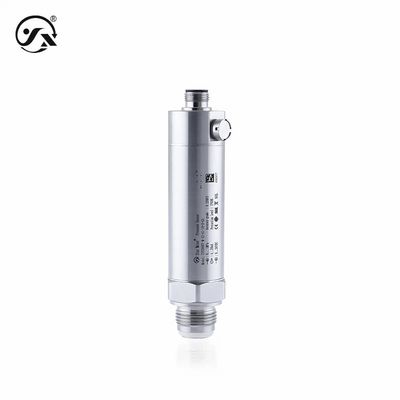

CYYZ66EY Hygienic Pressure Transmitter Sensor Range 0-10kPa-4MPa For Hygienic Application Sites

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ66EY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: 0~10kPa~4MPa Output: 4~20mA、RS485、0~10VDC、0~5VDC、1~5VDC
Power Supply: 9~36VDC、15~36VD Accuracy: 0.25%FS、0.5%FS
Name: Pressure Transmitter Sensor
Highlight:

CYYZ66E Hygienic Pressure Transmitter

,

Hygienic Pressure Transmitter Sensor

,

CYYZ66E Hygienic Pressure Sensor

CYYZ66EY Hygienic Pressure Transmitter Range 0~10kPa~4MPa Medical Technology Pharmaceutical Industry Food And Beverage



CYYZ66EY hygienic pressure transmitter is suitable for hygienic application sites, the overall 316L material, using laser welding process, no sanitary dead angle. The protection level reaches IP69K and meets the washing conditions.





Base parameters
Measuring medium Liquid or gas (compatible with contact material)
Measuring range 0~10kPa~4MPa(see range selection table for details)
Type of pressure Gauge pressure
Media temperature -40~85℃
On-time 20ms
Stable performance ± 0.1% FS/year
Temperature compensation -10~70℃
Temperature drift ±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)
Degree of protection IP69K Note: The above protection level refers to the electrical connection after it is complete
Durable performance 1X10⁶ times (lower range to upper range number of cycles)
Overall weight ≈270g
resolution Analog output 0.01%FS, digital output 0.05%FS
Output power
Output signal 4~20mA,RS485,0~10VDC,0~5VDC,1~5VDC
Power supply range 9~36VDC,15~36VDC
Maximum power
4~20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
0~10VDC,0~5VDC,1~5VDC ≤0.008Us(W)
Load characteristics
Voltage type
Current type Current type load ≤{(Us-7.5)÷0.02(Us=Supply voltage 2)}Ω
Environmental conditions ≥10kΩ
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overpressure and blasting
Overload pressure 300% FS, 200% full scale
Burst pressure 600%FS,500%FS,400%FS
Overall material
diaphragm 316L stainless steel (contact with the medium to be measured)
Process connection 316 stainless steel (contact with the medium to be measured)
enclosure 316 stainless steel (contact with the medium to be measured)
O-rings Silicone rubber (contact with the medium to be tested)
Mechanical stability
Seismic performance 10g(20… 2000Hz)
Impact resistance: 500g/ms
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ500VDC
Dielectric strength: 500VAC
Output limits
The output is minimal 4mA,0,0.001VDC,0.05VDC
Output maximum 20mA,2000,10VDC,5VDC
