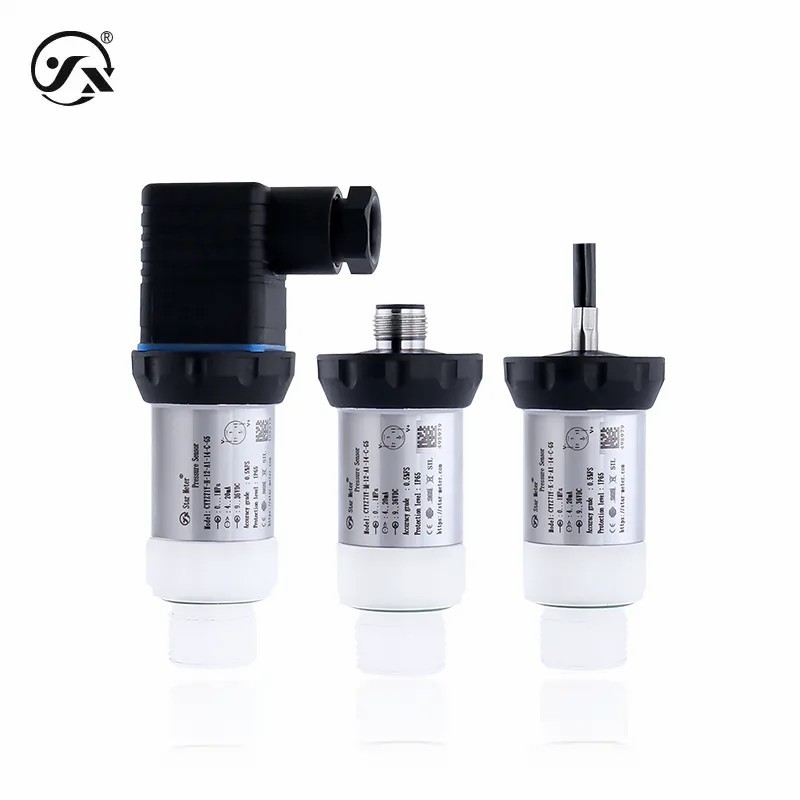

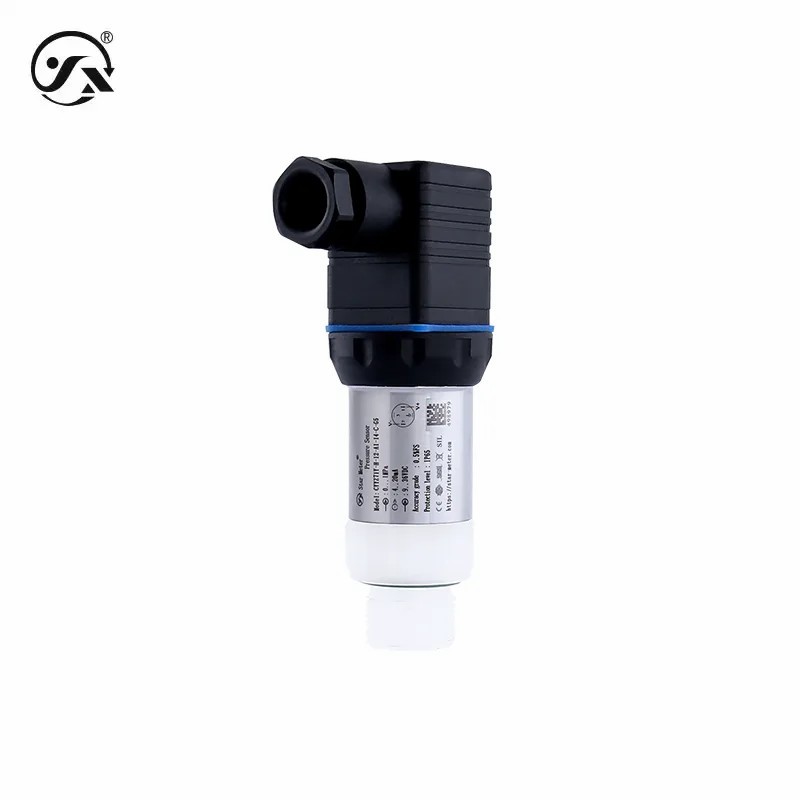

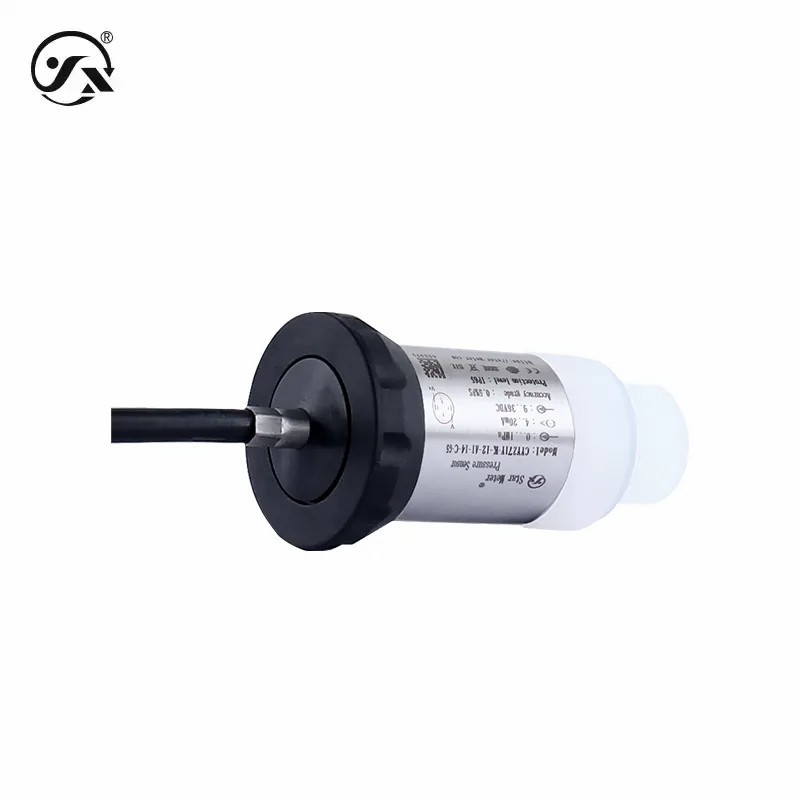

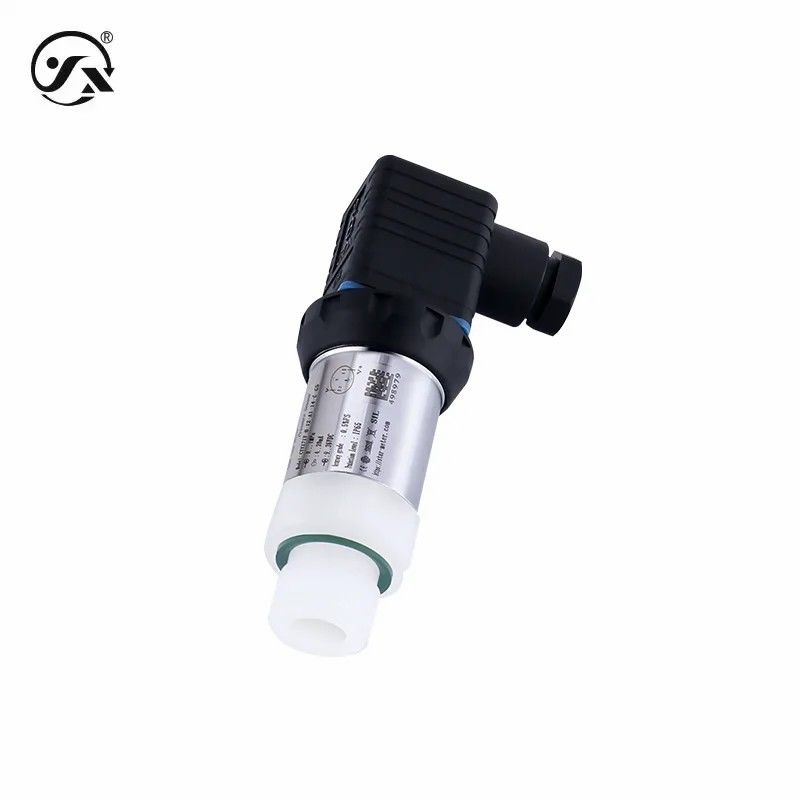

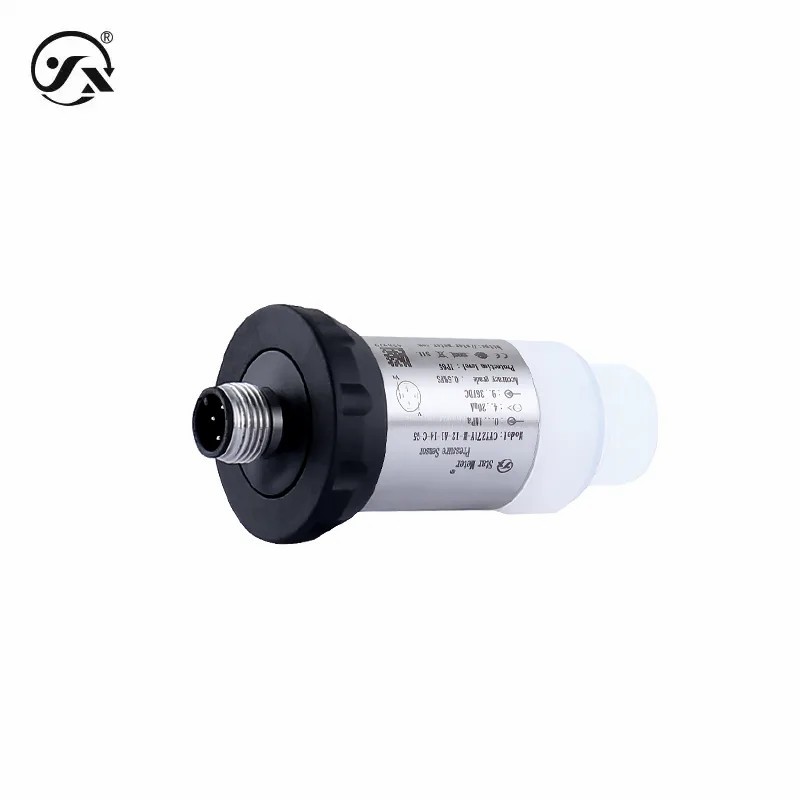

CYYZ71Y Anti Corrosion Pressure Transmitter Sensor Range 0-50kPa-6MPa

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ71Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Name: Anti Corrosion Pressure Transmitter Sensor Range: 0~50kPa~6MPa
Output: 4~20mA、RS485 Power Supply: 9~36VDC
Accuracy: 0.5%FS
Highlight:

CYYZ71 Anti Corrosion Pressure Transmitter

,

Anti Corrosion Pressure Transmitter Sensor

CYYZ71Y Anti-Corrosion Pressure Transmitter Range 0~50kPa~6MPa Output 4~20mA,RS485 Power Supply 9~36VDC Accuracy 0.5%FS



The CYYZ71 pressure transmitter with ceramic core and PVDF process connection is suitable for measuring corrosive gases or liquids and for oxygen applications at low pressure. It also has diversified advantages such as range and electrical connection, which is convenient to match different working conditions.





Base parameters
Measuring medium Liquid or gas (compatible with contact material)
Pressure range 0~50kPa~6MPa (see range selection table for details)
Pressure mode Gauge pressure
Output signal 4~20mA,RS485
Supply voltage 9~36VDC
Media temperature -40~85℃
On-time 20ms
Accuracy class 0.5%FS (reference conditions: temperature 15~25°C, atmospheric pressure 86~106kPa, humidity 45~75%RH)
Stable performance ±0.2% FS/year
Temperature drift ±0.02%FS/℃
Degree of protection IP65 Note The above protection level refers to the electrical connection is complete
Durable performance 10X10⁶ times (lower range to upper range cycles)
Response frequency 100Hz
Overall weight ≈120g
Resolution Analog output 0.02%FS, digital output 0.05%FS
Maximum power
Output signal 4~20mA,RS485
Power supply range 9~36VDC
Load characteristics
Current type Current load ≤{(Us-7.5)÷0.02}Ω(Us=supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overall material
diaphragm Ceramics (contact with the medium to be measured)
Process connection PVDF polyvinylidene fluoride (contact with the measured medium)
enclosure 304 stainless steel
Press the nut ABS engineering plastics
Hirschmann joints ABS engineering plastics
ED Circle Viton (contact with the medium to be measured)
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance: 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ500VDC
Dielectric strength: 500VAC
Output limits
The output is minimal 4mA,0
Output maximum 20mA,2000
