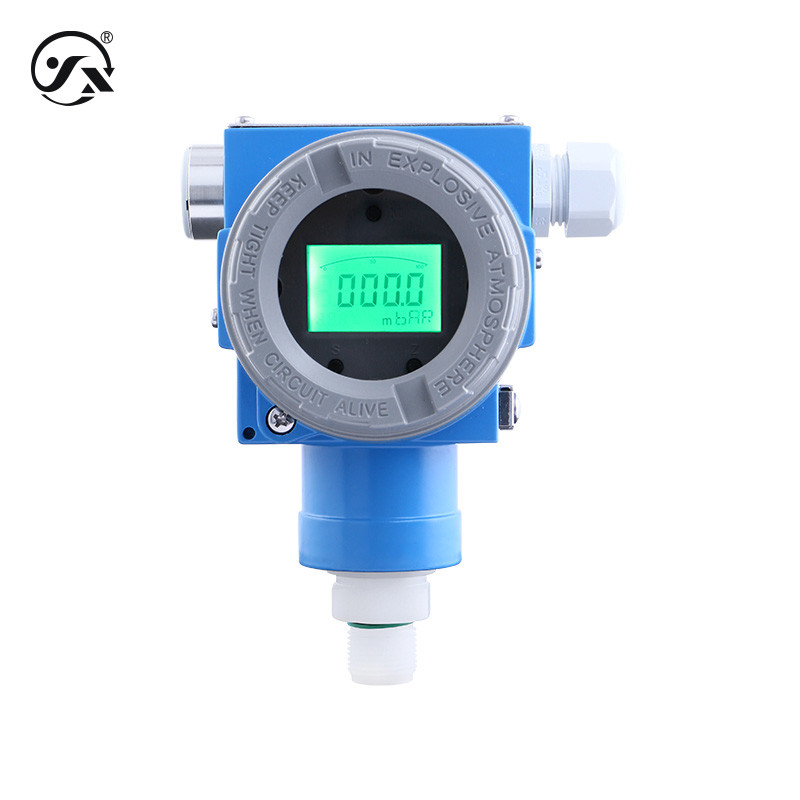

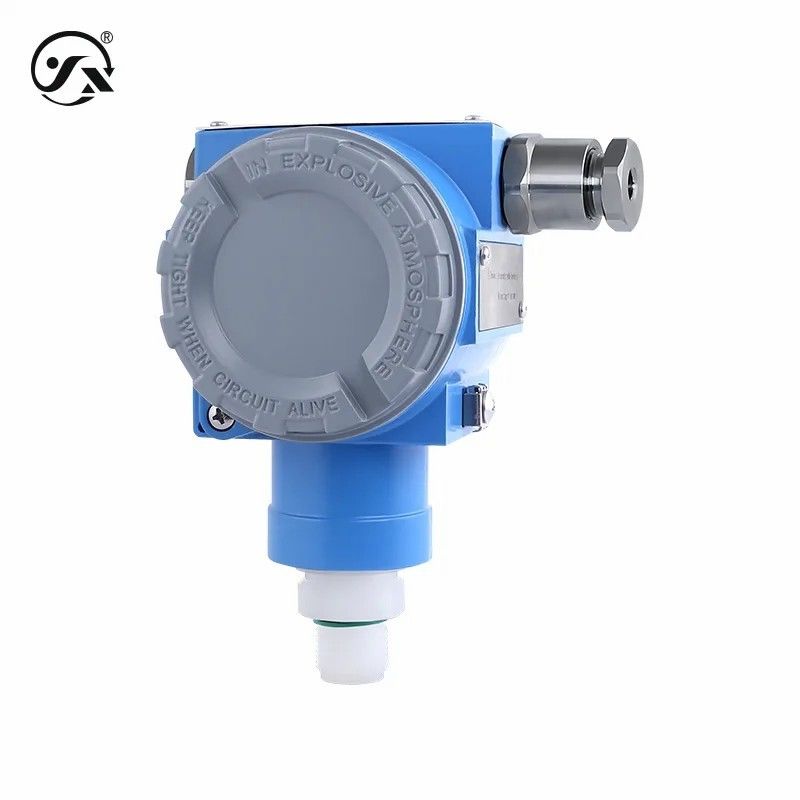

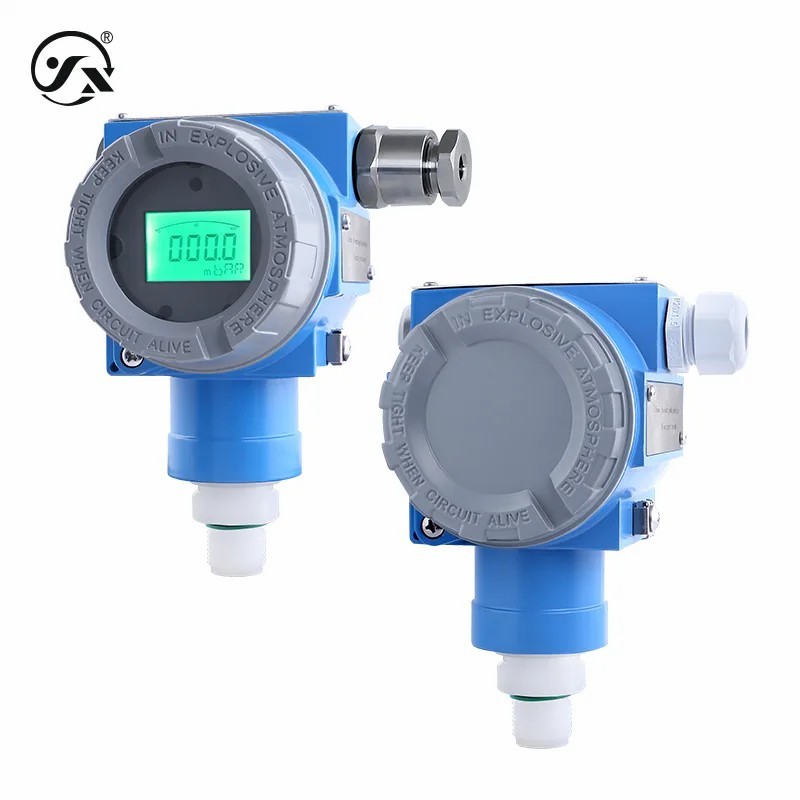

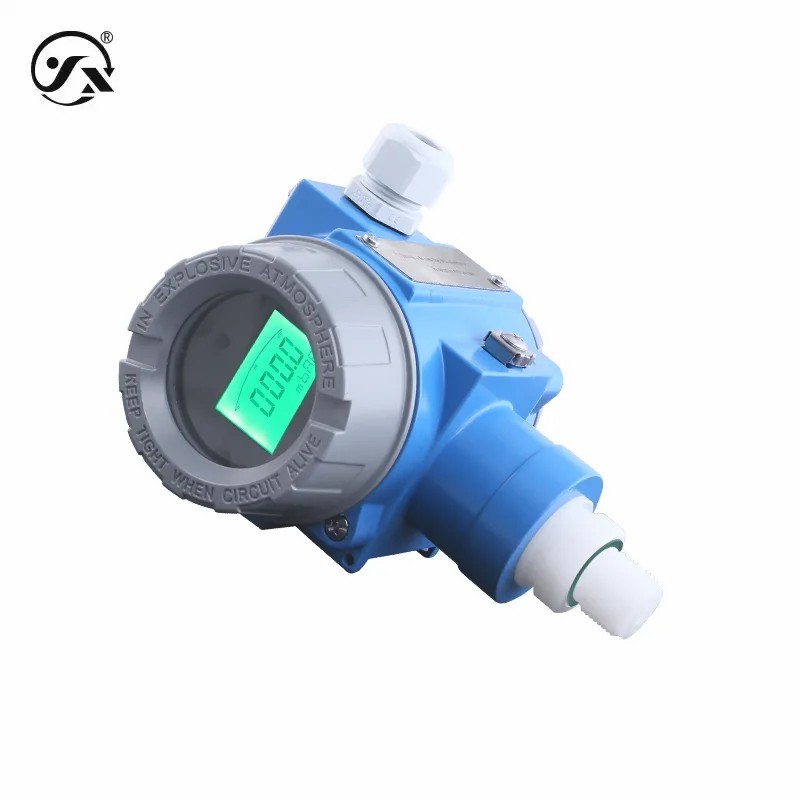

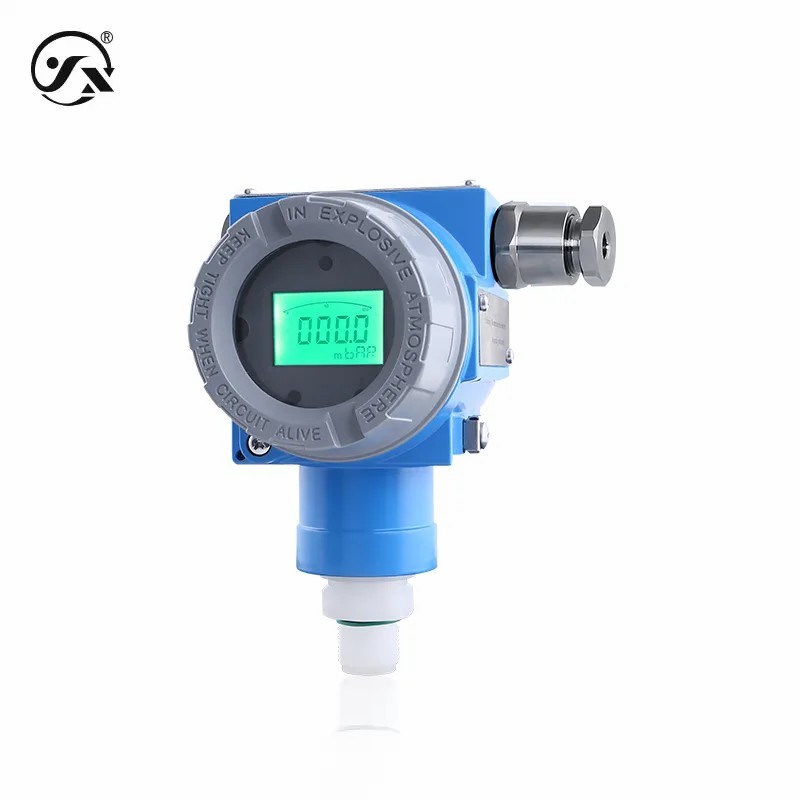

CYYZ71CY Anti Corrosion Pressure Transmitter Accuracy 0.5%FS Output 4-20mA 4-20mA HART RS485

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ71CY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Name: Anti Corrosion Pressure Transmitter Range: -0.1~0~6MPa
Output: 4~20mA, 4~20mA HART, RS485 Power Supply: 9~32VDC, 15~32VDC, 15~24VDC
Accuracy: 0.5%FS
Highlight:

CYYZ71C Anti Corrosion Pressure Transmitter

,

Anti Corrosion Pressure Transmitter Accuracy 0.5%FS

,

0.5%FS High Accuracy Pressure Transmitter

CYYZ71CY Anti-Corrosion Pressure Transmitter Range -0.1~0~10MPa Output 4~20mA, 4~20mA HART, RS485 Accuracy 0.5%FS



The CYYZ71CY-resistant pressure transmitter with ceramic core and process connection made of PVDF is suitable for measuring corrosive gases or liquids and for oxygen applications at low pressures. It also has a variety of explosion-proof function options, intrinsically safe type, dust intrinsically safe type, range range, electrical connection and other diversified advantages, and can also choose HART protocol communication, convenient for different working conditions on site.





Basic parameters
Measuring medium Liquids or gases (compatible with contact materials)
Pressure range -0.1~0~6MPa (see range selection table for details)
Pressure mode Gauge pressure
Medium temperature -40~85℃
Turn-on time 20ms
Accuracy class 0.5%FS (Reference temperature 15~25°C, atmospheric pressure 86~106kPa, humidity 45~75%RH)
Stable performance ±0.2% FS/year
Temperature drift ±0.02%FS/℃
Explosion-proof type Intrinsically safe Ex ia II.C T6 Ga (4~20mA/4~20mA HART output only)
Ex iaD 20 T80°C (4~20mA/4~20mA HART output only)
Note: Intrinsically safe must be powered by a safety barrier or intrinsically safe power supply
Ingress protection IP66
Note: The above protection level refers to the level achieved when the electrical connection is complete
Durable performance 1X10⁶ cycles (number of cycles from lower range to upper range)
Frequency of response 30Hz
Overall weight No ≈ 1kg with 1.2kg with ≈
resolution Analog output 0.02%FS, digital output 0.05%FS
Output power
Output signal 4~20mA,RS485,4~20mA HEART
Power supply range 9~32VDC,15~32VDC,15~24VDC
Power range
Current type ≤0.02Us(W)
Digital ≤0.02Us(W),≤0.015Us(W)
Load characteristics
Current type No display load ≤{(Us-7.5)÷0.02}Ω
With display load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH (no condensation, no condensation)
Overload capacity
Overload pressure 150%FS
Burst pressure 400%FS,300%FS,300%FS,200%FS
Overall material
diaphragm Ceramics (in contact with the medium to be measured)
Process connections PVDF polyvinylidene fluoride (in contact with the medium to be measured)
enclosure Die-cast aluminum
Core seals Seen pressure and burst charts (in contact with the medium to be measured)
Threaded seals Fluoroglue
Display window ≈6mm explosion-proof glass
Mechanical stability
Vibration resistance 10g(20… 2000Hz) in accordance with the IEC60068-2-6 standard
Impact Resistance: 500g/ms meets IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Reverse polarity protection No damage, but no work
Insulation resistance ≥100MΩ 500VDC
Dielectric Strength: 500VAC
Output limits
The output is minimal 4mA,0,3.8mA
The output is maximum 20mA,2000,22mA
