Name: CYYZ73CY Single Flanged Pressure Transmitter For Exhaust Gas Chemical Oil And Gas
Brand: Star Sensor Manufacturing Co., Ltd
SKU: CYYZ73CY
Price: 73.00 USD
Availability: InStock

CYYZ73CY Single Flange Type Pressure Transmitter Range -100kPa～0～4MPa Accuracy 0.5%FS Exhaust Gas Chemical Oil And Gas

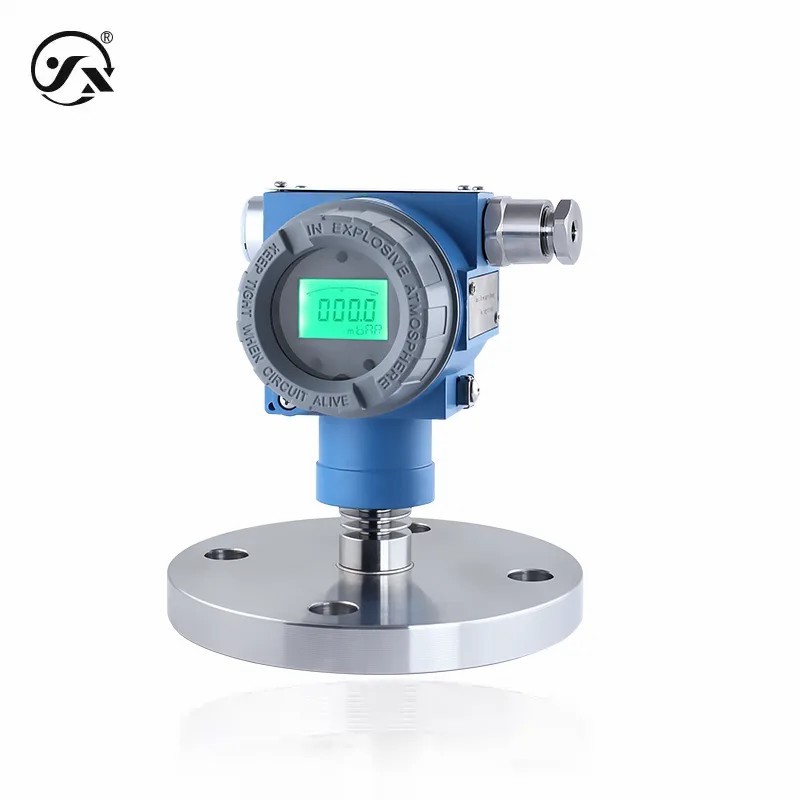

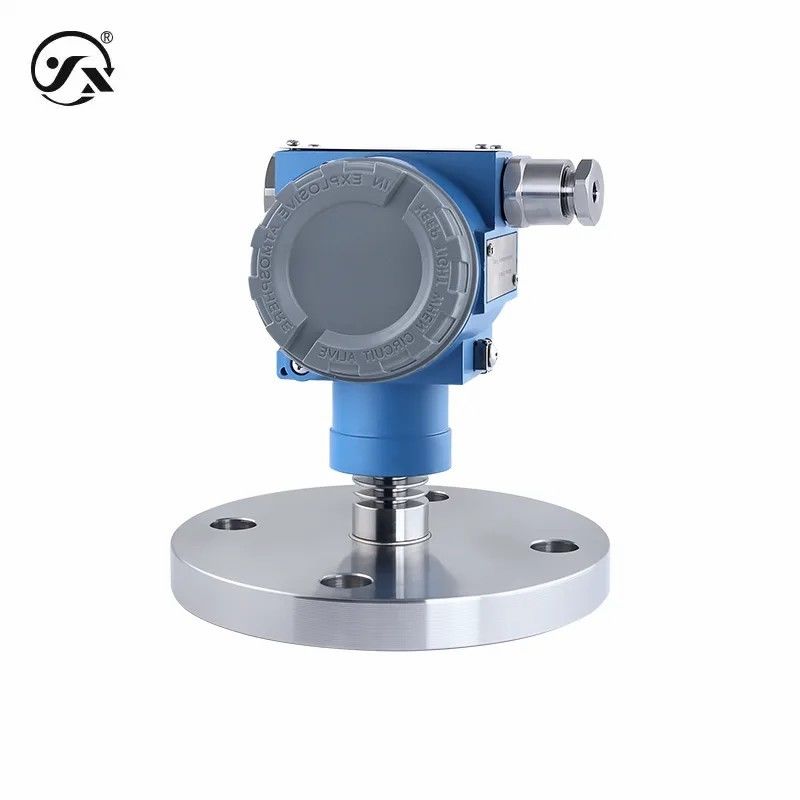

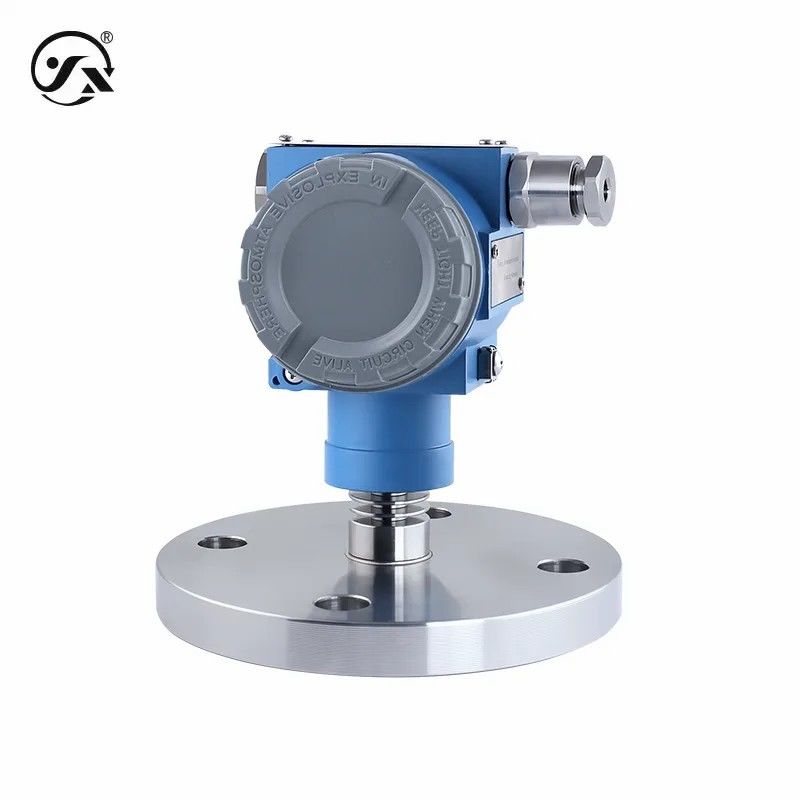

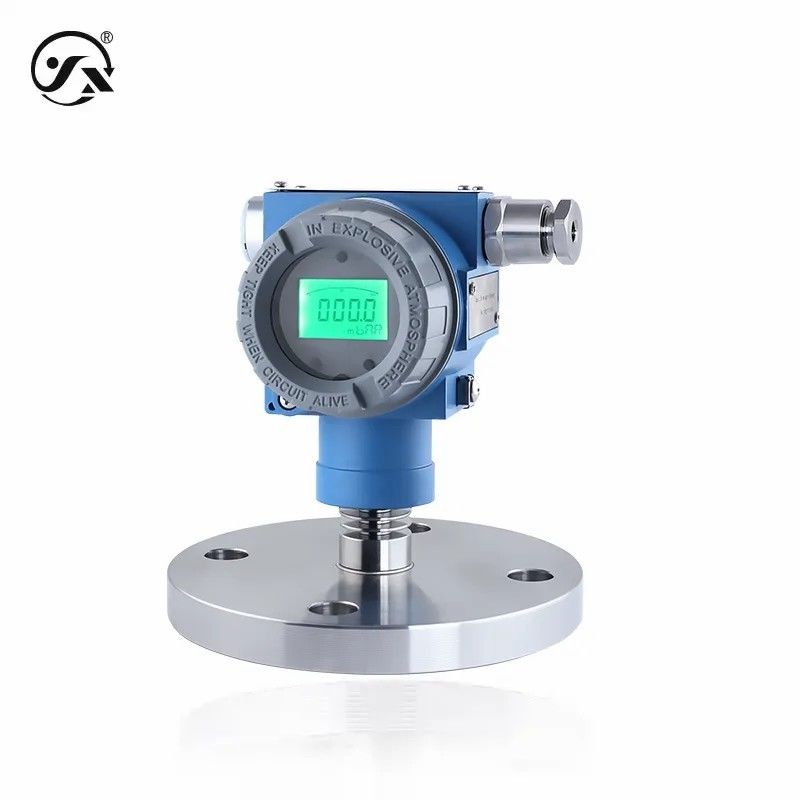

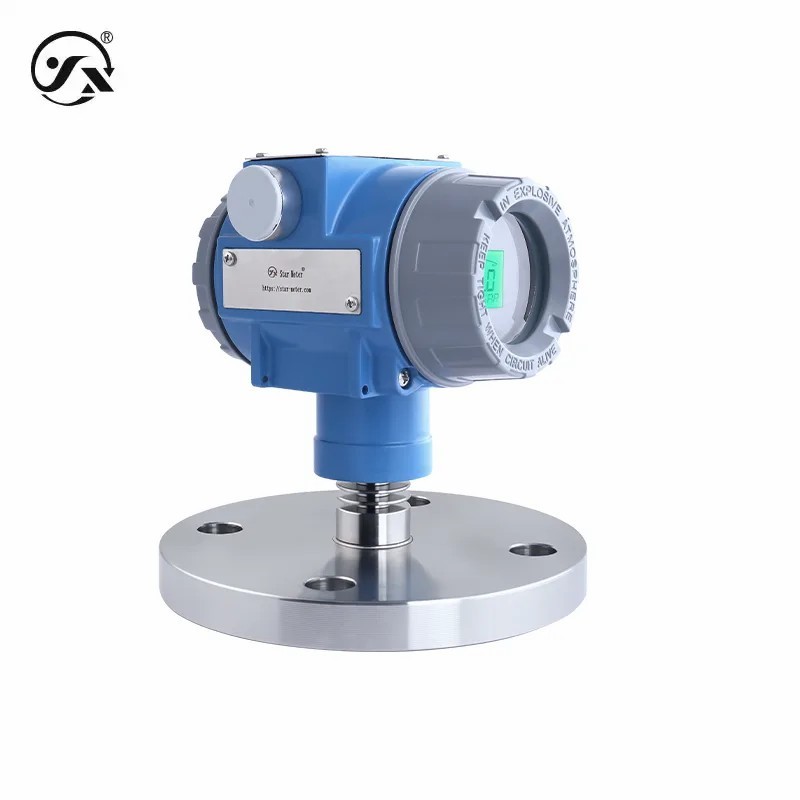

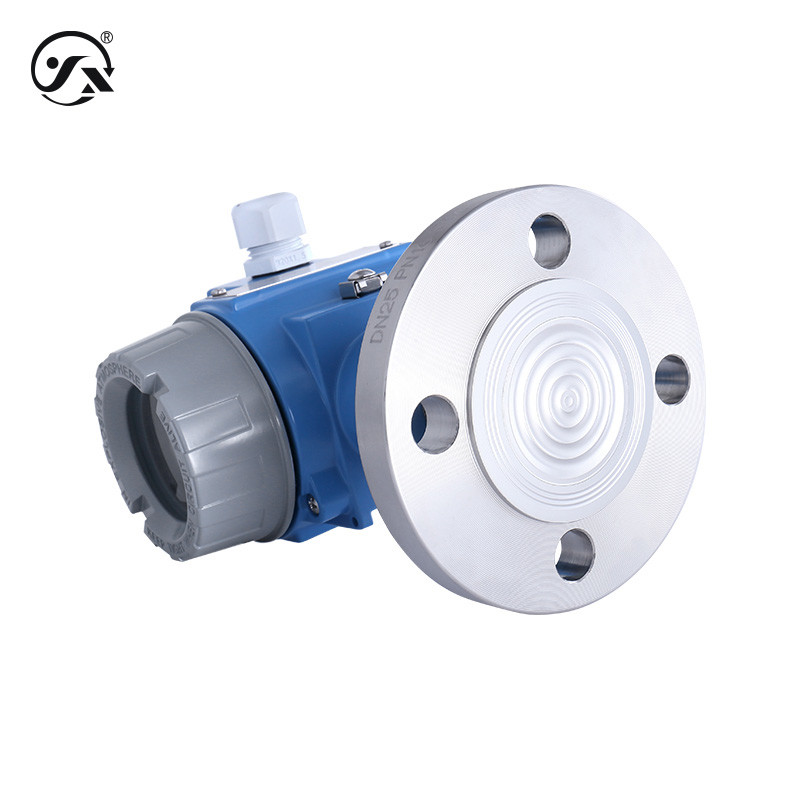

The CYYZ73CY single flange pressure transmitter is designed for corrosive, viscous media. The diaphragm adopts flush membrane process (diaphragm material is 316L, tantalum, Harbin C optional). And there are a variety of explosion-proof function options, intrinsically safe type, dust intrinsically safe type, flameproof type, flameproof dust type, and can also choose HART protocol communication, cost-effective.

Base parameters
Measuring medium	Liquid or gas (compatible with contact material)
Pressure range	-100kPa~0~4MPa (see range selection table for details)
Pressure mode	Gauge pressure, absolute pressure, negative pressure
Media temperature	-40～130℃
On-time	20ms
Accuracy class	±0.5%FS Meter accuracy 0.5%FS (LCD with backlight)
Temperature compensation	-10～70℃
Stable performance	±0.2% FS/year
Temperature drift	±0.02%FS/℃
Ex type	Flameproof Ex db II.C T6 Gb Flameproof Dust Type Ex tb IIIC T80°C Db Intrinsically Safe Ex ia II.C T6 Ga (4~20mA/4~20mA HART output only) Dust Intrinsically Safe Ex iaD 20 T80°C (4~20mA/4~20mA HART output only). NOTE: Intrinsically safe must be powered by a safety barrier or intrinsically safe power supply
Degree of protection	IP66 Note: The above protection level refers to the electrical connection achieved after the electrical connection is complete
Durable performance	10X10⁶ times (lower range to upper range cycles)
Response frequency	Analog signal output≤ 30Hz digital signal output≤ 5Hz HART communication ≤10Hz
Overall weight	No display≈ 1.25kg with display ≈1.4kg
Resolution	Analog output 0.01%FS, digital output 0.05%FS
Output power
output	4～20mA,RS485,0～10VDC,0～5VDC,1～5VDC,4～20mA HART
Power supply	9~32VDC,13~32VDC,15~32VDC,15~24VDC
Maximum power
Output signal	4～20mA,RS485,0～10VDC,0～5VDC,1～5VDC,4～20mA HART
power	≤0.02Us(W),≤0.015Us(W),≤0.008Us(W),
Load characteristics
Voltage type	≥10kΩ
Current type	No display load≤{(US-7.5)÷0.02}Ω with display load≤{(US-12)÷0.02}Ω (US=supply voltage)
HART current type	Load ≤ {(Us-12)÷0.02}Ω(Us=Supply voltage)
Environmental conditions
Ambient temperature	-40～85℃
Ambient humidity	0%~95%RH(no condensation, no condensation)
Overall material
diaphragm	316L stainless steel/Ha C/tantalum (contact with the medium to be tested)
flange	304 stainless steel
enclosure	Die-cast aluminum
Display window	≈ 6mm explosion-proof glass
Mechanical stability
Seismic performance	10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance:	500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection	perpetual
Anti-polarity protection	No damage, but not working
Insulation resistance	≥100MΩ500VDC
Dielectric strength:	500VAC
Output limits
The output is minimal	4mA,0,0.001VDC,3.8mA
Output maximum	20mA,2000,10VDC,5VDC,22mA

Tag:

Place of Origin:	China
Brand Name:	Star merter
Model Number:	CYYZ73CY

Minimum Order Quantity:	1PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	30000 Piece/Month

Range:	-100kPa～0～4MPa	Output:	4～20mA、4～20mA HART、RS485、0～10VDC、0～5VDC、1～5VDC
Power Supply:	9～32VDC、15～32VDC、13～32VDC、15～24VDC	Accuracy:	0.5%FS
Name:	Pressure Transmitter Sensor
Highlight:	Single Flanged Pressure Transmitter , CYYZ73C Flanged Pressure Transmitter , Pressure Transmitter Flange Type

manual
Product Information—Chinese (CN)	PDF
Product Information—English (EN)	PDF
Product Selection—Chinese (CN)	PDF
Product Selection—English (EN)	PDF
Installation Instructions—Chinese (CN)	PDF
Installation Instructions—English (EN)	PDF
Protocol Description—Chinese (CN)	PDF
Protocol Description—English (EN)	PDF
Key Operation Instructions—Chinese (CN)	PDF
Key Operation Instructions—English (EN)	PDF
HART Button Operation Instructions—Chinese (CN)	PDF
HART Button Operation Instructions—English (EN)	PDF
