Range: | 0~0.6MPa~60MPa | Output: | 4~20mA |
---|---|---|---|
Power Supply: | 9~36VDC | Accuracy: | 0.5%FS |
Name: | Pressure Transmitter Sensor |

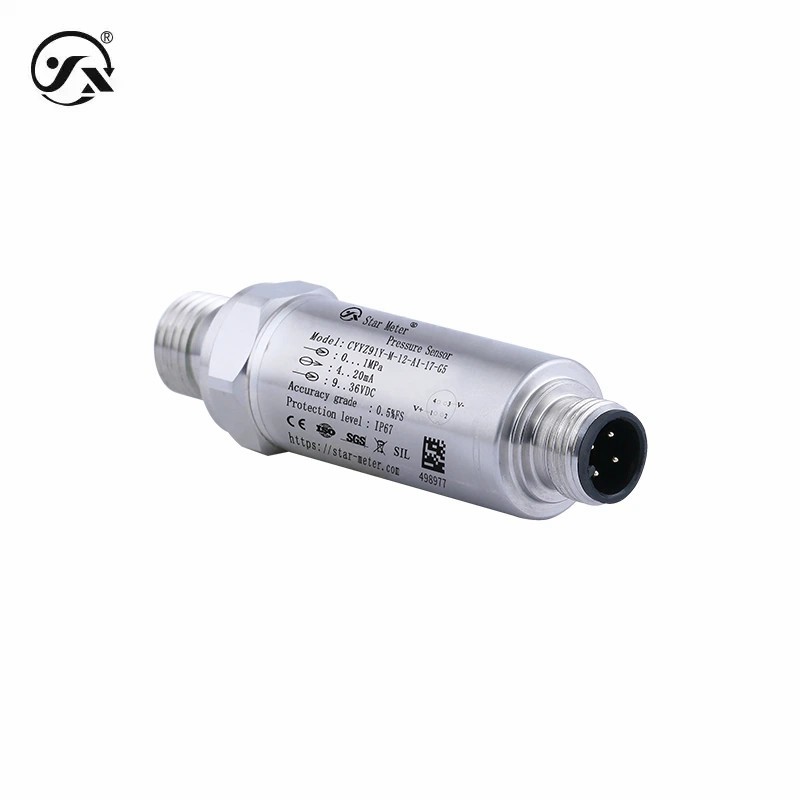

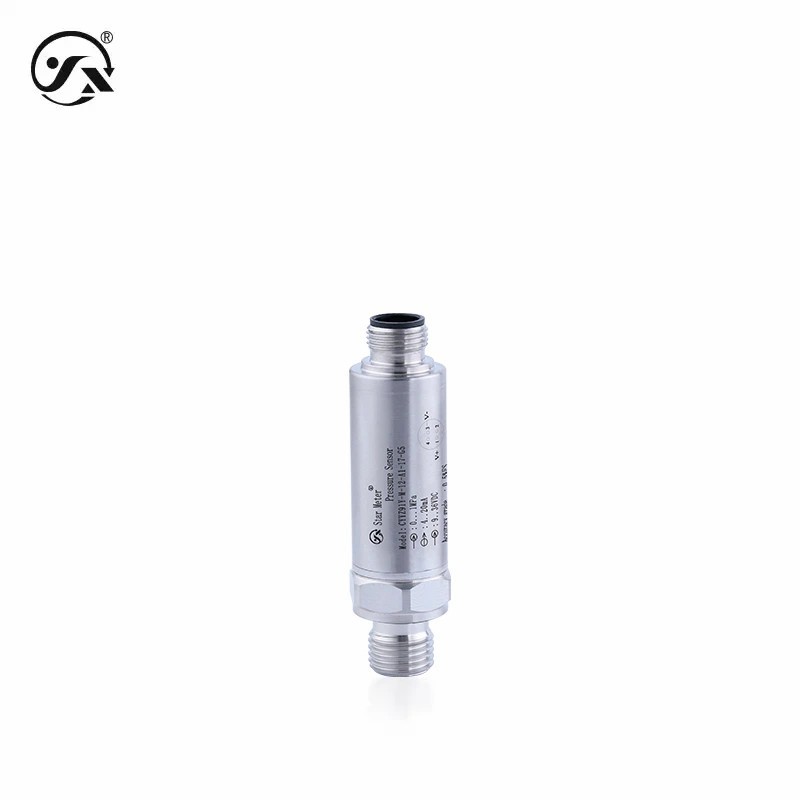

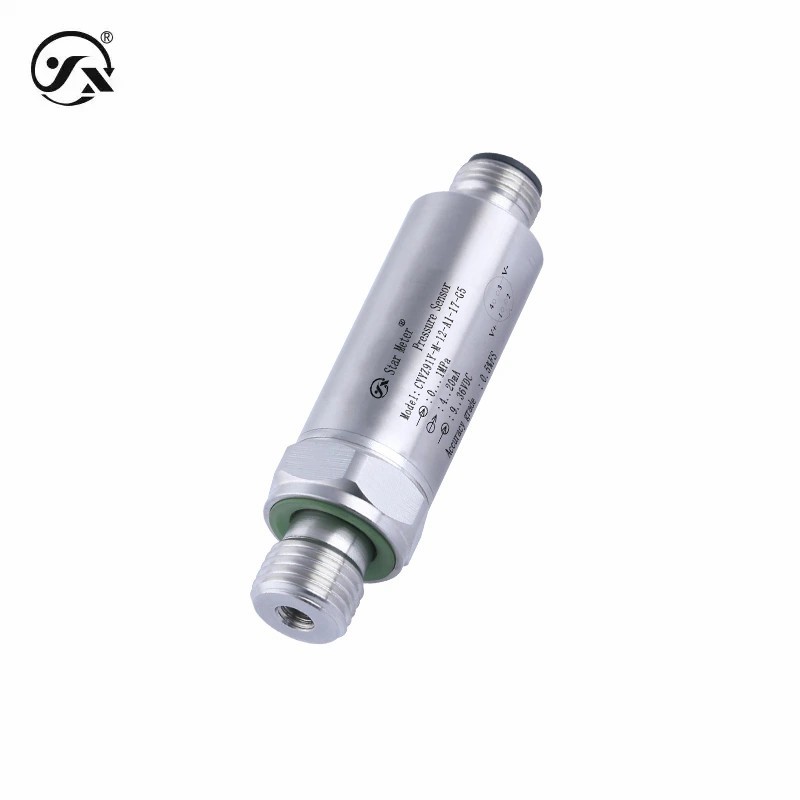

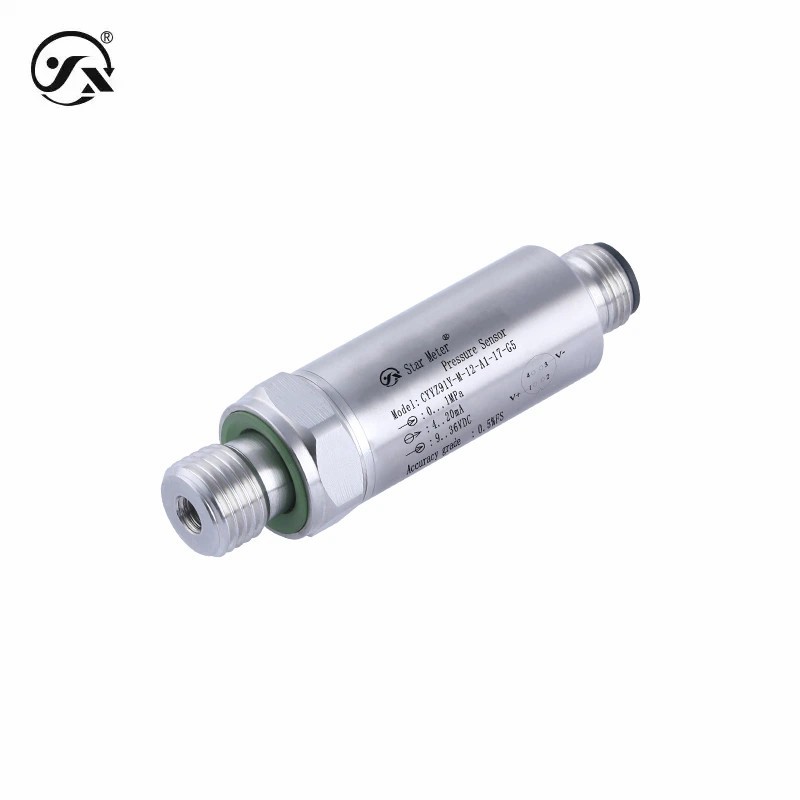

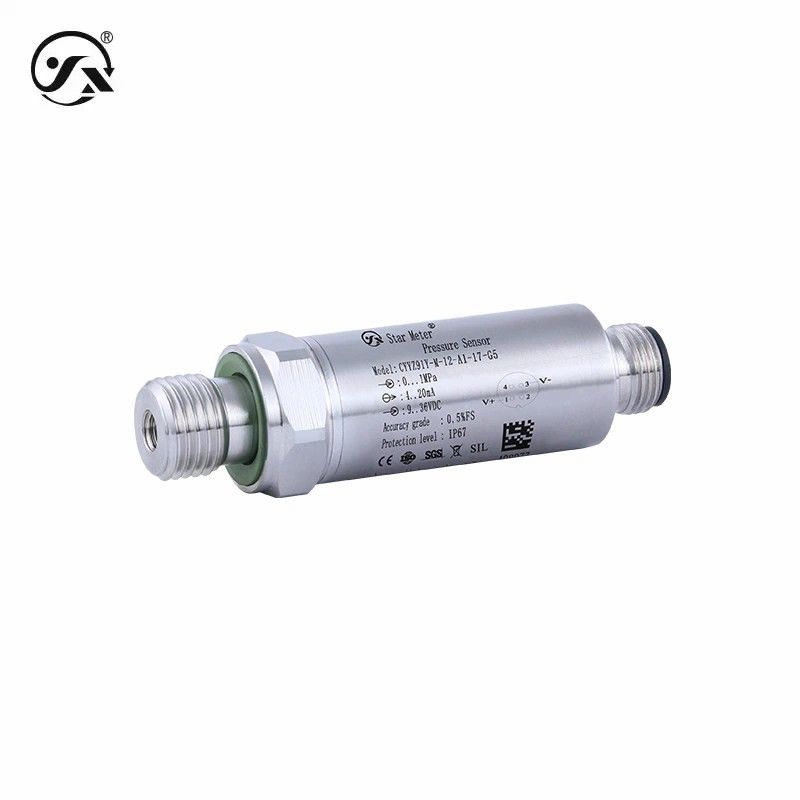

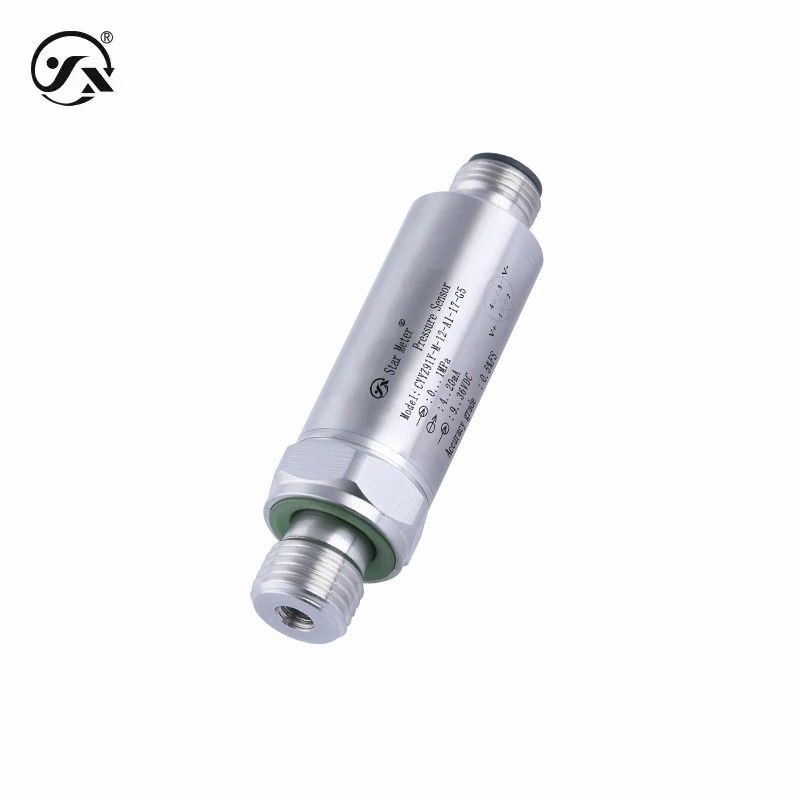

CYYZ91Y pressure transmitter is carefully designed and compact, suitable for industrial equipment with limited installation space, and the internal sealing treatment makes it have the advantages of anti-vibration and anti-condensation.
Base parameters | |
Measuring medium | Liquid or gas (compatible with contact material) |
Pressure range | 0~0.6~60MPa |
Pressure mode | Sealing pressure (zero point with absolute pressure 101.3kPa) |
Output signal | 4~20mA |
Power supply range | 9~36VDC |
Media temperature | -40~120℃ |
On-time | 20ms |
Response frequency | Analog signal output≤ 20Hz |
Accuracy class | 0.5%FS (reference conditions: temperature 15~25°C, atmospheric pressure 86~106kPa, humidity 45~75%RH) |
Temperature compensation | -10~70℃ |
Stable performance | ± 0.2% FS/year |
Temperature drift | ±0.02%FS/°C (temperature compensated) |
Degree of protection | IP67 Note: The above protection level refers to the electrical connection achieved after it is complete, and also depends on the electrical connection plug. |
Durable performance | 10X10⁶ times (lower range to upper range cycles) |
Overall weight | ≈60g |
Maximum power | ≤0.02Us(W) Note: Us=Supply voltage |
resolution | 0.02%FS |
Load characteristics | |
Current type | Load ≤ {(Us-7.5)÷0.02}Ω(Us=Supply voltage) |
Environmental conditions | |
Ambient temperature | -40~85℃ |
Overpressure and blasting | |
Overload pressure | 150%FS,200%FS |
Burst pressure | 300%FS,400%FS,500%FS |
Overall material | |
diaphragm | 316L stainless steel (contact with the medium to be measured) |
Process connection | 304 stainless steel (contact with the medium to be measured) |
enclosure | 304 stainless steel |
Core seals | Laser welding, cyanobutadiene rubber |
Threaded seals | Fluorine glue (contact with the medium to be measured) |
Connector | ABS engineering plastics |
Mechanical stability | |
Seismic performance | 20g(20… 2000Hz) in accordance with IEC60068-2-6 standard |
Impact resistance | 500g/ms conforms to IEC60068-2-27 standard |
Electrical protection | |
Short-circuit protection | perpetual |
Anti-polarity protection | No damage, but not working |
Insulation resistance | ≥100MΩ500VDC |
Dielectric strength | 500VAC |
Output limits | |
4-20mA | Output min. 4mA and output max 20mA |
