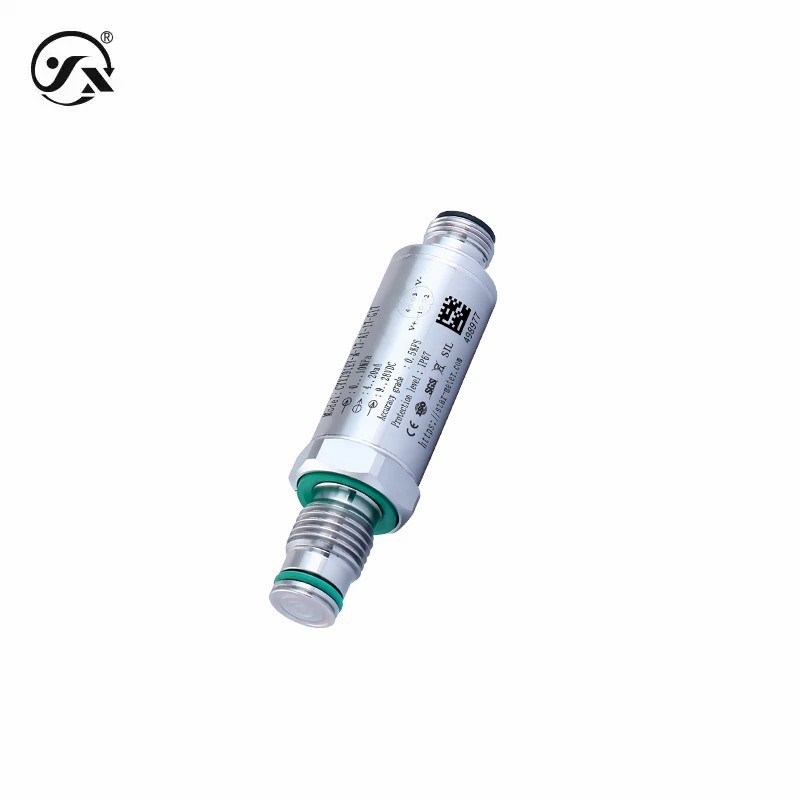

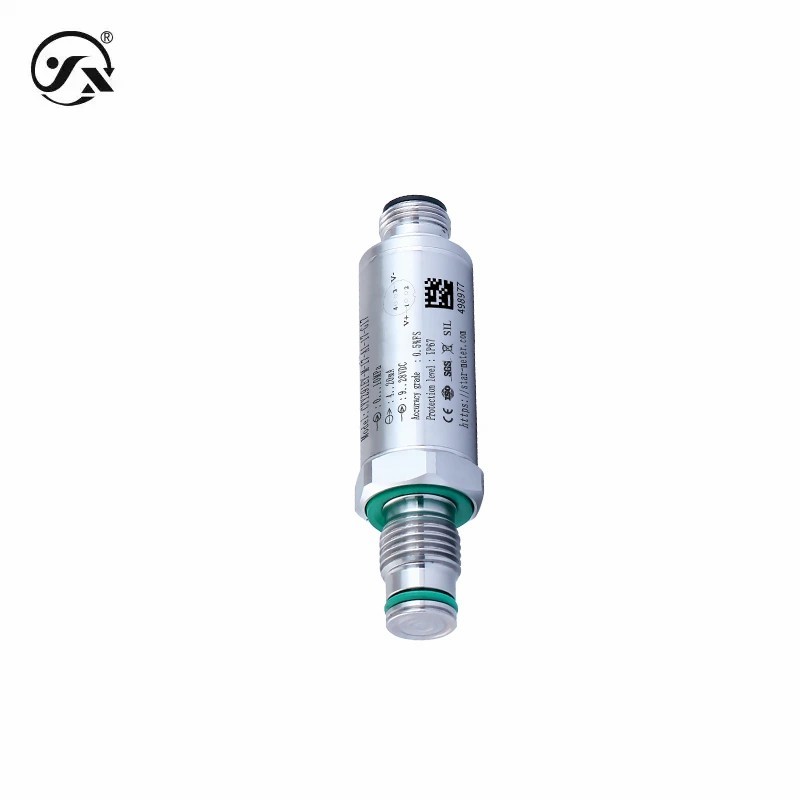

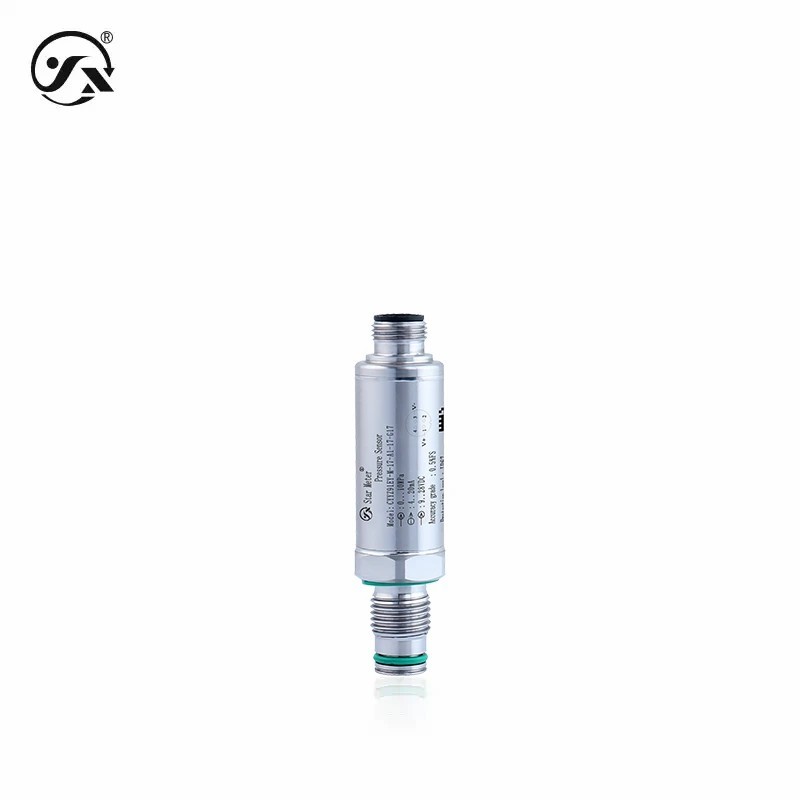

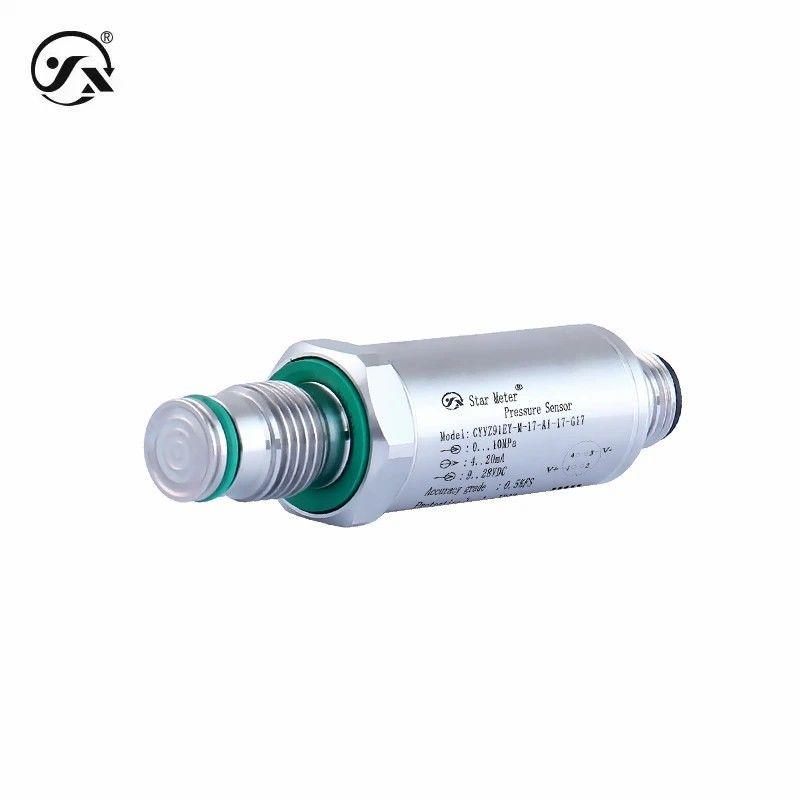

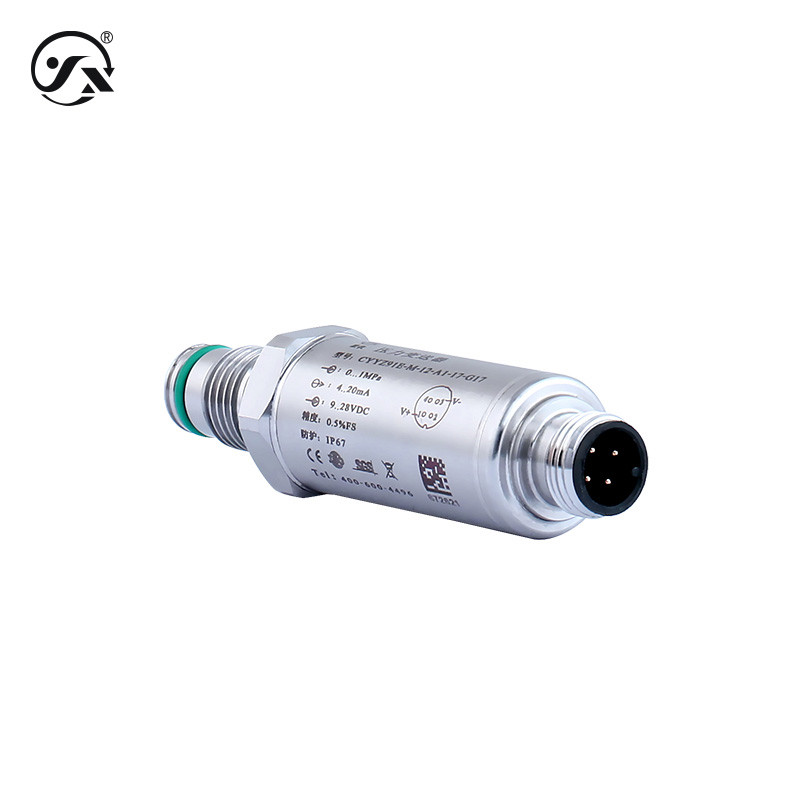

CYYZ91EY Compact Pressure TransmitterRange 0~4~40MPa Output 4~20mA Power supply 9~28VDC Accuracy 0.5%FS

CYYZ91EY Compact Pressure TransmitterRange 0~4~40MPa Output 4~20mA Power supply 9~28VDC Accuracy 0.5%FS
CYYZ91EY Compact Pressure TransmitterRange 0~4~40MPa Output 4~20mA Power supply 9~28VDC Accuracy 0.5%FS CYYZ91EY Compact Pressure TransmitterRange 0~4~40MPa Output 4~20mA Power supply 9~28VDC Accuracy 0.5%FS CYYZ91EY Compact Pressure TransmitterRange 0~4~40MPa Output 4~20mA Power supply 9~28VDC Accuracy 0.5%FS CYYZ91EY Compact Pressure TransmitterRange 0~4~40MPa Output 4~20mA Power supply 9~28VDC Accuracy 0.5%FS CYYZ91EY Compact Pressure TransmitterRange 0~4~40MPa Output 4~20mA Power supply 9~28VDC Accuracy 0.5%FS
Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ91EY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Contact Now
Range: 0~4~40MPa Output: 4~20mA
Power Supply: 9~28VDC Accuracy: 0.5%FS
Name: Pressure Transmitter Sensor

CYYZ91EY compact pressure transmitter is designed for measuring adhesion, crystallization, mixed contamination, etc. The flat membrane design is adopted to effectively prevent the blockage of the impulse hole. The process connection adopts the radial sealing method of the lower end of the thread, so that the measuring medium is effectively isolated from the connection thread, and the adhesion and mixed contamination of the threaded connection are avoided. Compact structure and small size, suitable for industrial equipment with limited installation space, etc., the internal sealing treatment makes it have the advantages of anti-vibration and anti-condensation.





Basic parameters
Measuring medium Liquids or gases (compatible with contact materials)
Pressure range 0～4～40MPa
Pressure mode Sealing pressure (zero point at absolute pressure 101.3kPa)
Output signal 4～20mA
Power supply range 9～28VDC
Medium temperature -40～120℃
Turn-on time 20ms
Frequency of response Analog signal output ≤ 20Hz
Accuracy class 0.5%FS (including repeatability≤0.035%FS, hysteresis≤0.05%FS) Reference conditions:
temperature 15~25°C, atmospheric pressure 86~106kPa, humidity 45~75%RH
Temperature compensation -10～70℃
Stable performance ±0.2% FS/year
Temperature drift ±0.02%FS/°C (within temperature compensation)
Ingress protection IP67 Note: The above degree of protection refers to the electrical connection when it is complete, and also depends on the electrical connection plug
Durable performance 1X10⁶ cycles (number of cycles from lower range to upper range)
Overall weight ≈60g
Maximum power ≤0.02Us(W) Note: Us=supply voltage.
resolution 0.02%FS
Load characteristics
Current type Current type: Load ≤{(Us-7.5)÷0.02}Ω (Us=supply voltage)
Environmental conditions
Ambient temperature -40～85℃
Overload capacity
Overload pressure 200%FS,150%FS
Burst pressure 500%FS,400%FS,300%FS
Overall material
diaphragm 316L stainless steel (in contact with the medium to be measured)
Process connections 304 stainless steel (in contact with the medium to be measured)
enclosure 304 stainless steel
Core seals Seen pressure and burst charts (contact with the medium to be measured)
O-rings Fluoroglue (in contact with the medium to be measured)
ED CIRCLE Fluoroglue (in contact with the medium to be measured)
Connector ABS engineering plastics
Mechanical stability
Vibration resistance 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact Resistance: 500g/ms meets IEC60068-2-27 standard
Electrical protection
Short-circuit protection eternity
Anti-polarity protection No damage, but no work
Insulation resistance ≥100MΩ 500VDC
Dielectric Strength: 500VAC
Output limits
The output is minimal 4mA
The output is maximum 20mA
