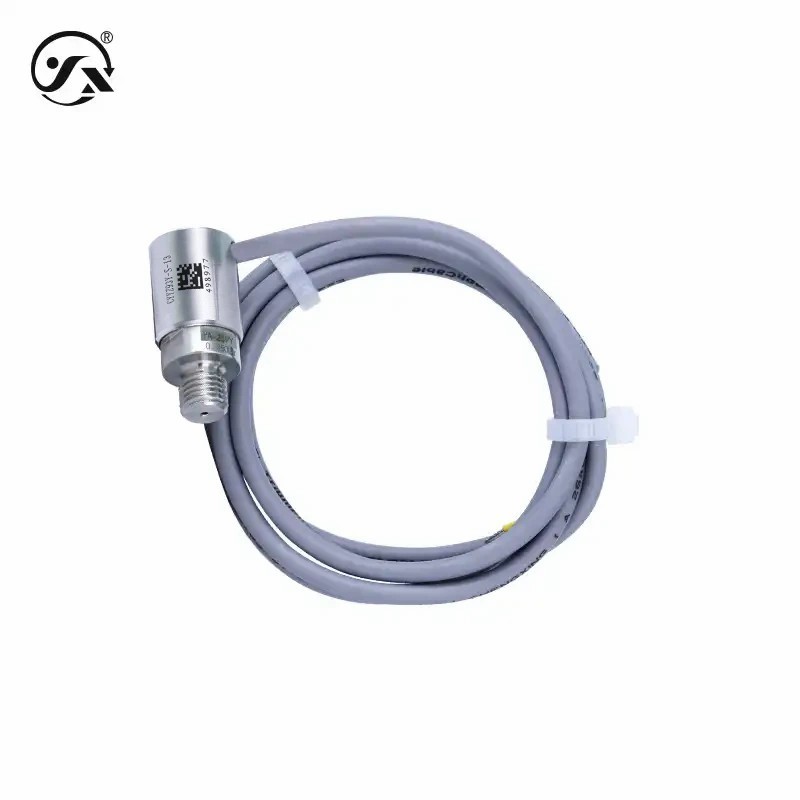

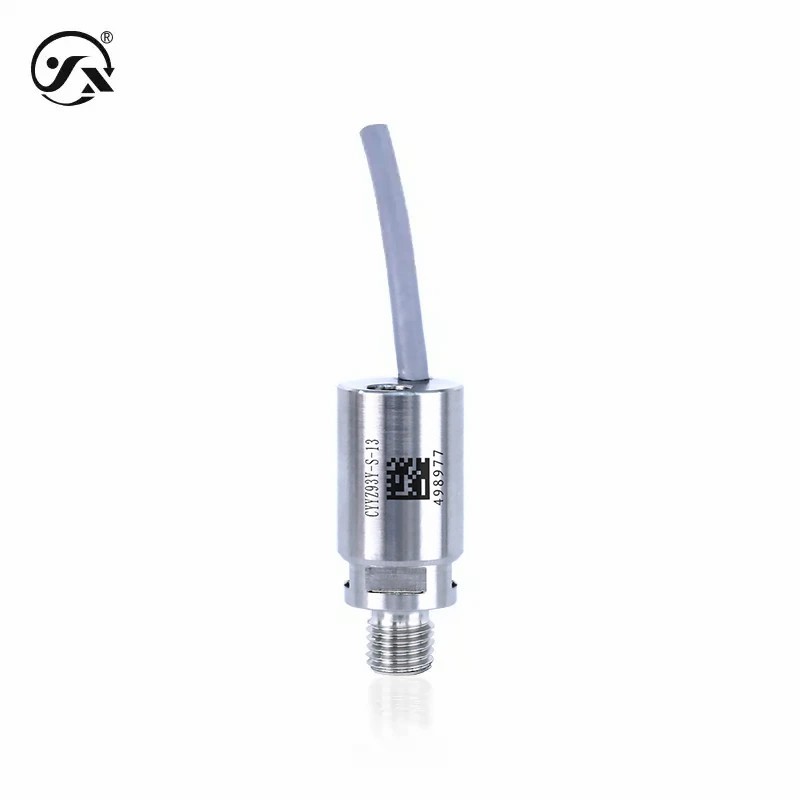

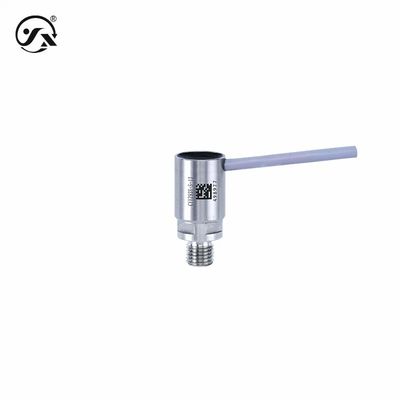

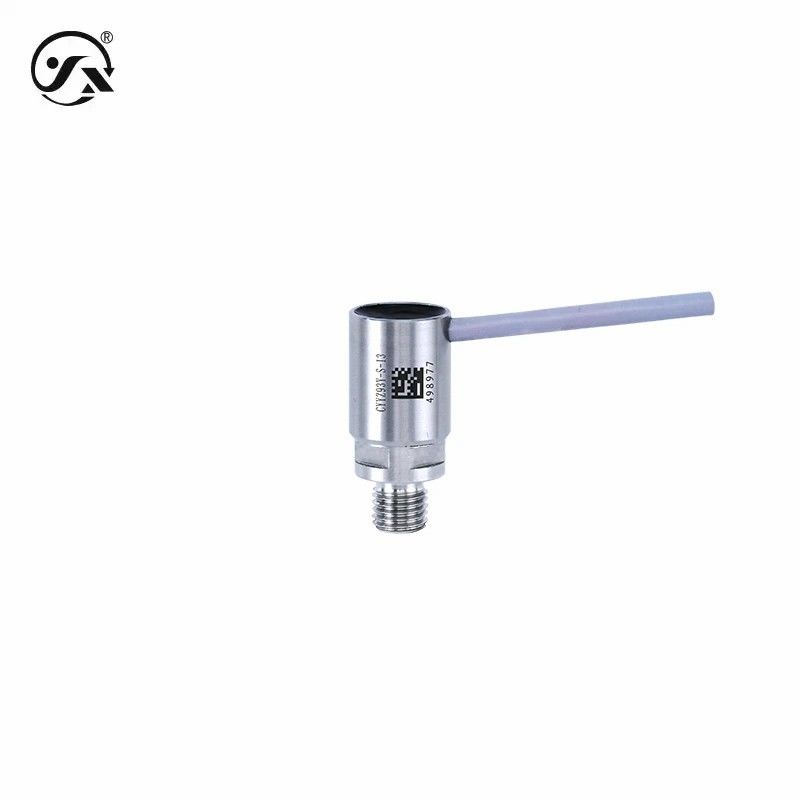

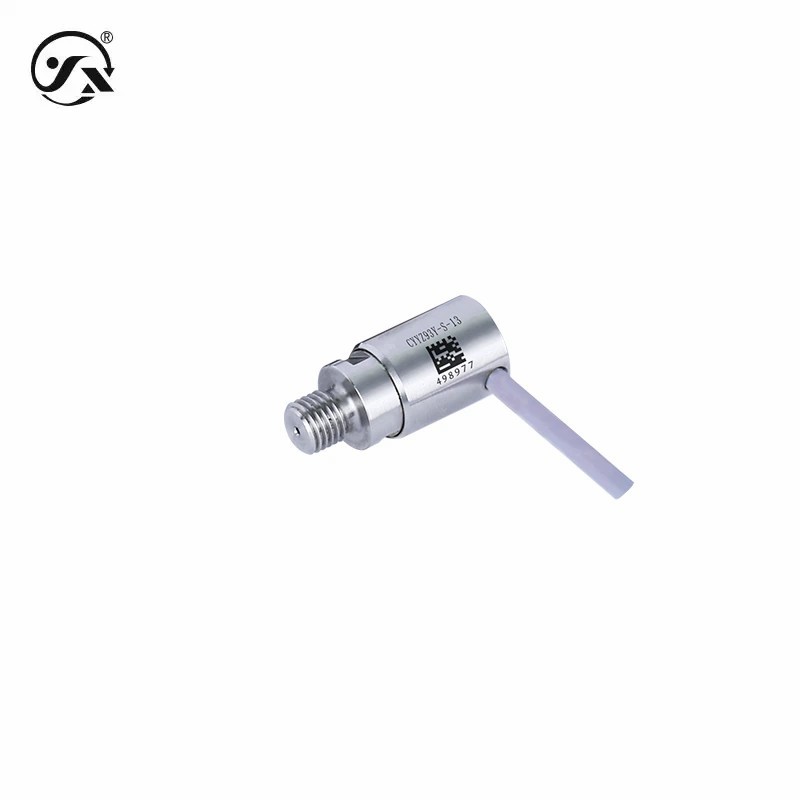

CYYZ93Y Miniature Pressure Transmitter Range 0~1.6MPa~60MPa Output 0.5~4.5VDC Power supply 8~28VDC Accuracy 0.5%FS

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ93Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: 0~1.6MPa~60MPa Output: 0.5~4.5VDC
Power Supply: 8~28VDC Accuracy: 0.5%FS
Name: Pressure Transmitter Sensor

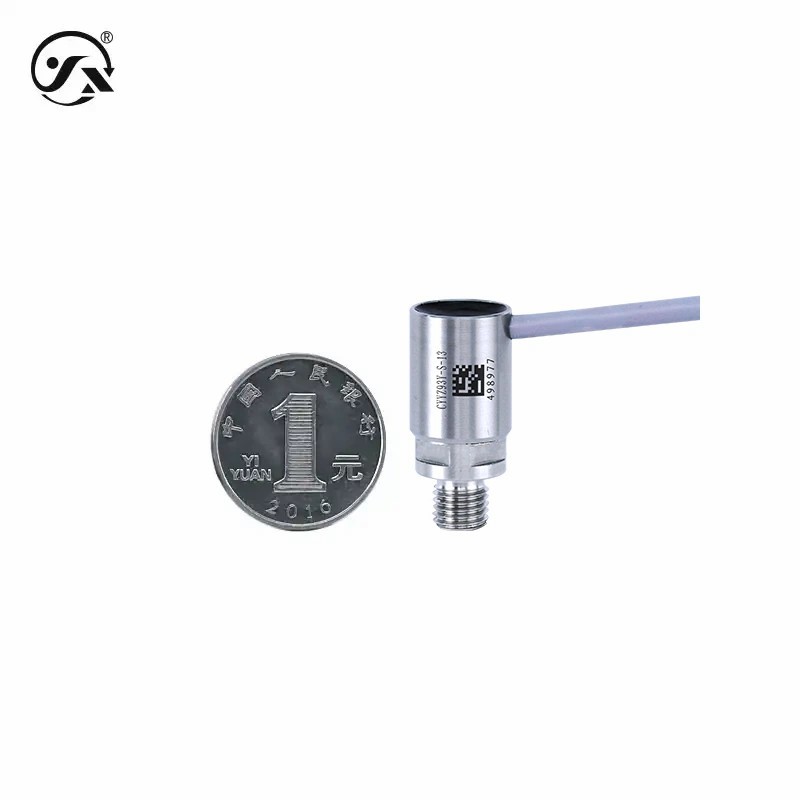

The CYYZ93Y pressure transmitter is well designed, not only compact, but also has a high response frequency of 2kHz, which is very suitable for industrial equipment with limited installation space, and is cost-effective.





Base parameters
Measuring medium Liquid or gas (compatible with contact material)
Pressure range 0~1.6~60MPa
Pressure mode Sealing pressure (zero point with absolute pressure 101.3kPa)
Output signal 0.5~4.5VDC
Power supply range 8~28VDC
Media temperature -40~85℃
On-time 20ms
Response frequency ≤2kHz
Accuracy class 0.5%FS (reference conditions: temperature 15~25°C, atmospheric pressure 86~106kPa, humidity 45~75%RH)
Temperature compensation -40~85℃
Stable performance ±0.2% FS/year
Temperature drift ±0.02%FS/°C (temperature compensated)
Degree of protection IP67
Durable performance 10X10⁶ times (lower range to upper range cycles)
Overall weight Main body≈ 22g; Cable≈ 24g/m
Maximum power ≤0.004Us(W) Note: Us=supply voltage
Load characteristics ≥10kΩ
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overall material
diaphragm 316L stainless steel (contact with the medium to be measured)
Process connection 316L stainless steel (contact with the medium to be measured)
enclosure 304 stainless steel
Core seals Laser welding
Threaded seals Copper and fluorine glue (in contact with the medium to be measured)
Cable material polyurethane
Mechanical stability
Seismic performance 20g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
Output limits
0.5~4.5VDC Output minimum 0.48VDC, output maximum 4.8VDC
