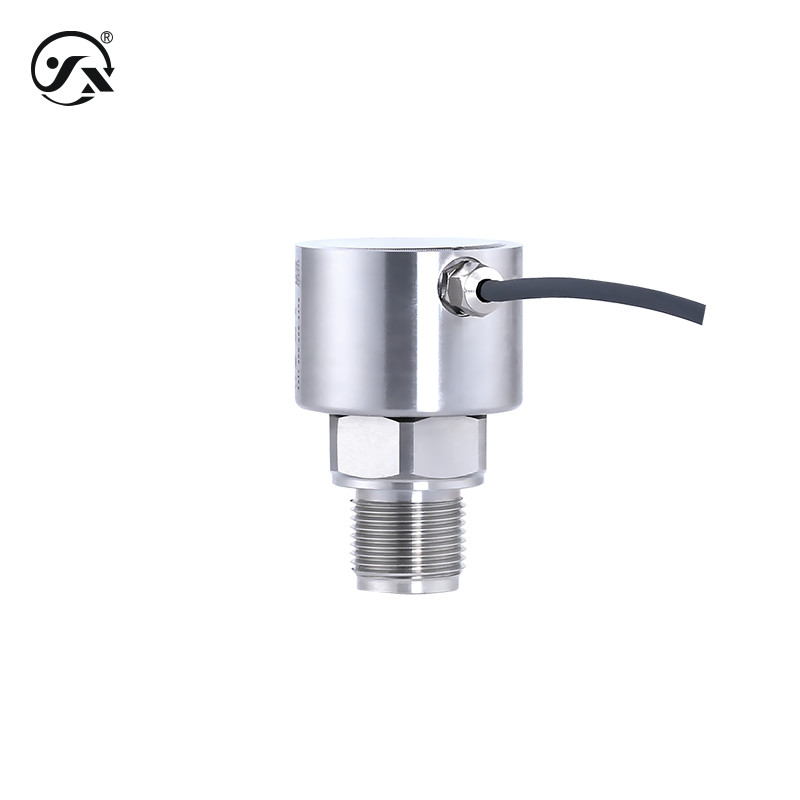

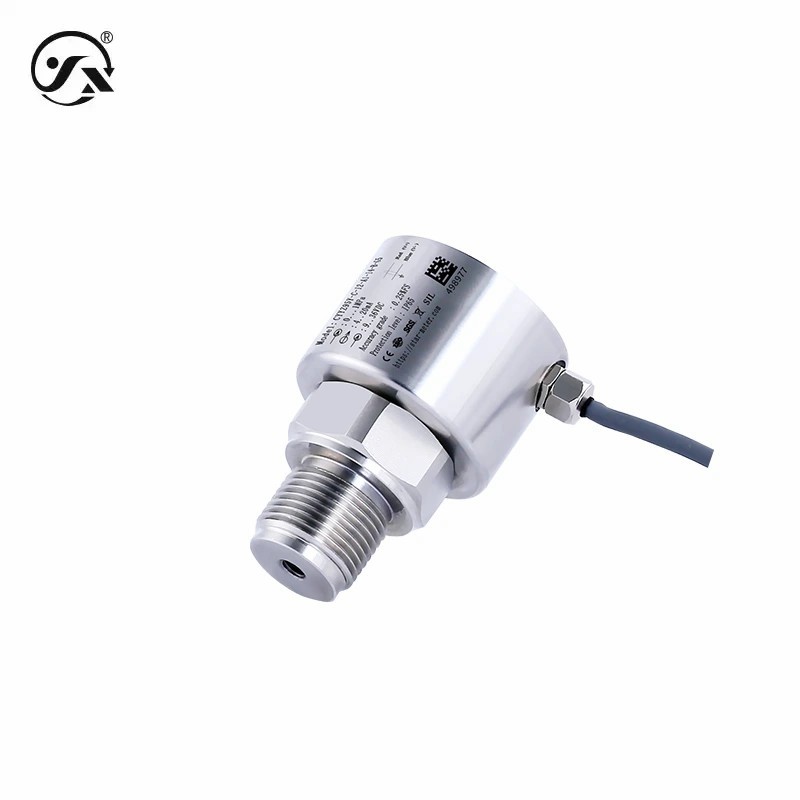

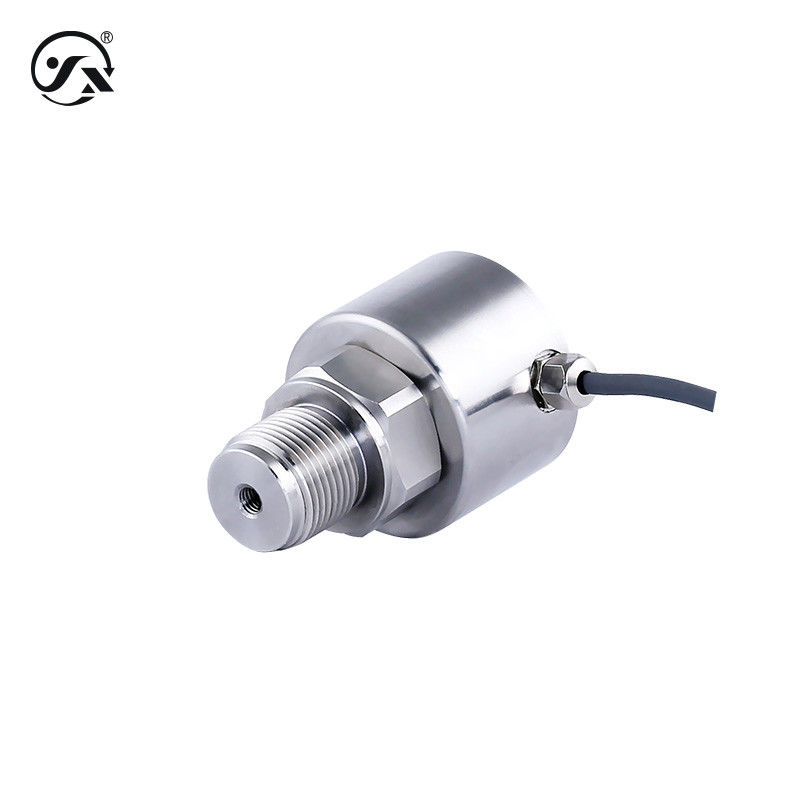

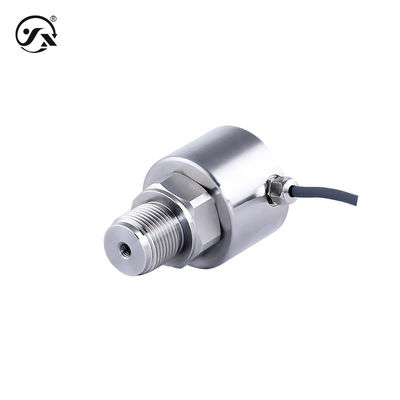

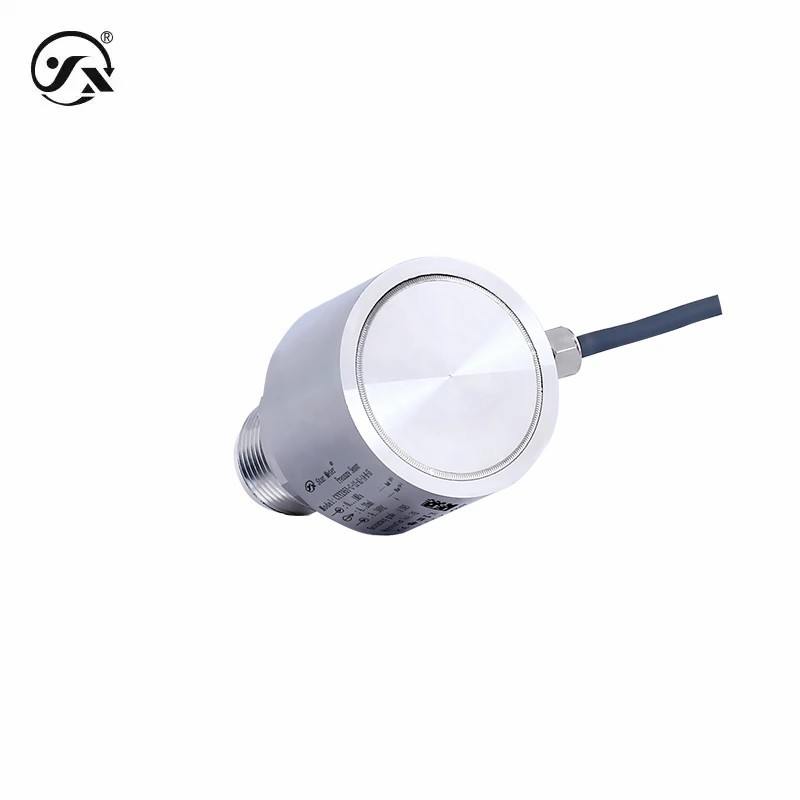

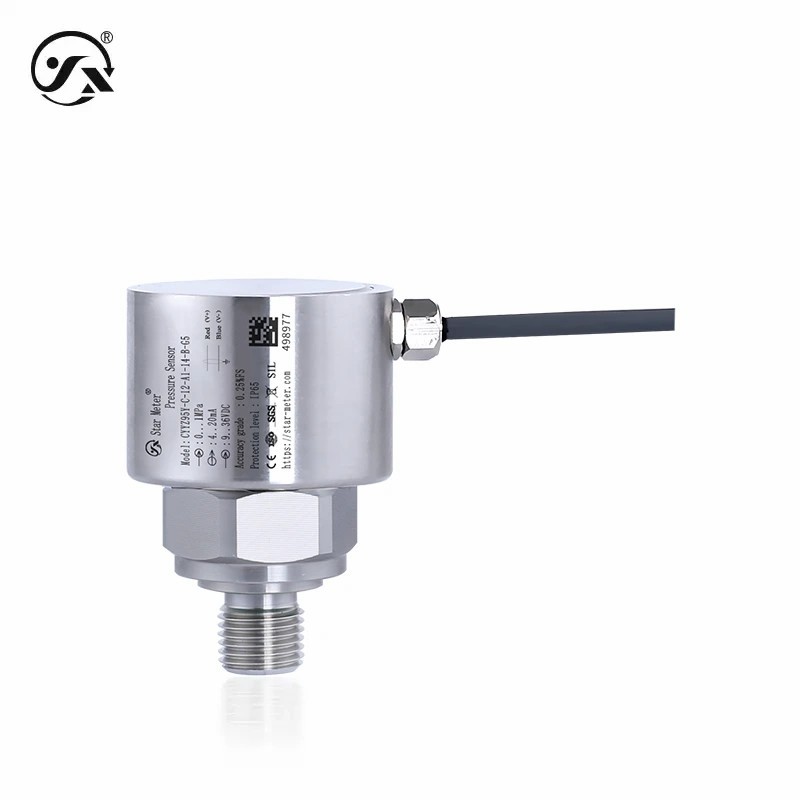

CYYZ95Y Universal Pressure Transmitter Range -100kPa~0~100MPa Accuracy 0.1%FS 0.25%FS 0.5%FS General industry Use

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ95Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -100kPa~0~100MPa Output: 4~20mA、RS485、0~10VDC、0~5VDC、1~5VDC、0.5~2.5VDC
Power Supply: 9~36VDC、15~36VDC、3~5VDC Accuracy: 0.1%FS、0.25%FS、0.5%FS
Name: Pressure Transmitter Sensor

The CYYZ95Y pressure transmitter has a low profile and excellent quality, which is very suitable for installation sites where space is required and is cost-effective. It also has diversified advantages such as output signal, range and pressure interface, which is convenient to match different working conditions.





Base parameters
Measuring medium Liquid or gas (compatible with contact material) range< 10 kPa (non-conductor, non-corrosive, non-explosive gas with humidity ≤90%RH, no condensation)
Measuring range -100kPa~0~100MPa (see range selection table for details)
Pressure mode Gauge pressure, absolute pressure, negative pressure
Media temperature -40~85℃
On-time 20ms
Stable performance ± 0.1% FS/year
Temperature drift ±0.01%FS/℃,±0.05%FS/℃
Degree of protection IP65
Durable performance 1X10⁶ times (lower range to upper range number of cycles)
Overall weight ≈260g
resolution Analog output 0.01%FS, digital output 0.05%FS
Output power
Output signal 4~20mA,RS485,0~10VDC,0~5VDC,1~5VDC,0.5~2.5VDC
Power supply range 9~36VDC,15~36VDC,3~5VDC
Accuracy class 0.1%FS,0.25%FS,0.5%FS
Response frequency 5Hz,30Hz,100Hz
Power range
Current type ≤0.02Us(W)
Digital ≤0.015Us(W)
Voltage type ≤0.008Us(W),≤0.001Us(W)
Load characteristics
Voltage type ≥10kΩ
Current type Current type load ≤{(Us-7.5)÷0.02(Us=Supply voltage 2)}Ω
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overpressure and blasting
Overload pressure 300%FS,200%FS,150%FS,12kPa,50kPa,300kPa,480kPa,750kPa,800kPa,1.2MPa,2MPa,3MPa,5MPa
Burst pressure 600%FS,500%FS,400%FS,300%FS,20kPa,200kPa,600kPa,900kPa,1.25MPa,2MPa,3MPa,5MPa,9MPa,12.5MPa
Overall material
diaphragm 316L stainless steel (contact)
Process connection 304 stainless steel (contact)
enclosure 304 stainless steel (contact)
Seals Nitrile rubber, fluoroelastomer (contact with the measured medium)
Cable material φ3.2 polyurethane cable
Mechanical stability
Seismic performance 10g(20… 2000Hz)
Impact resistance: 500g/ms
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ500VDC
Dielectric strength: 500VAC
Output limits
The output is minimal 3.8mA,4mA,0,0.001VDC,0.05VDC
Output maximum 20mA,26mA,2000,10VDC,5VDC,12VDC
