Home ProductsPressure Transmitter SensorCYYZ96Y Compact Pressure Transmitter Range 0~2.5~10MPa Output 0.5~3VDC Power supply 5(±0.25)VDC accuracy 0.25%FS

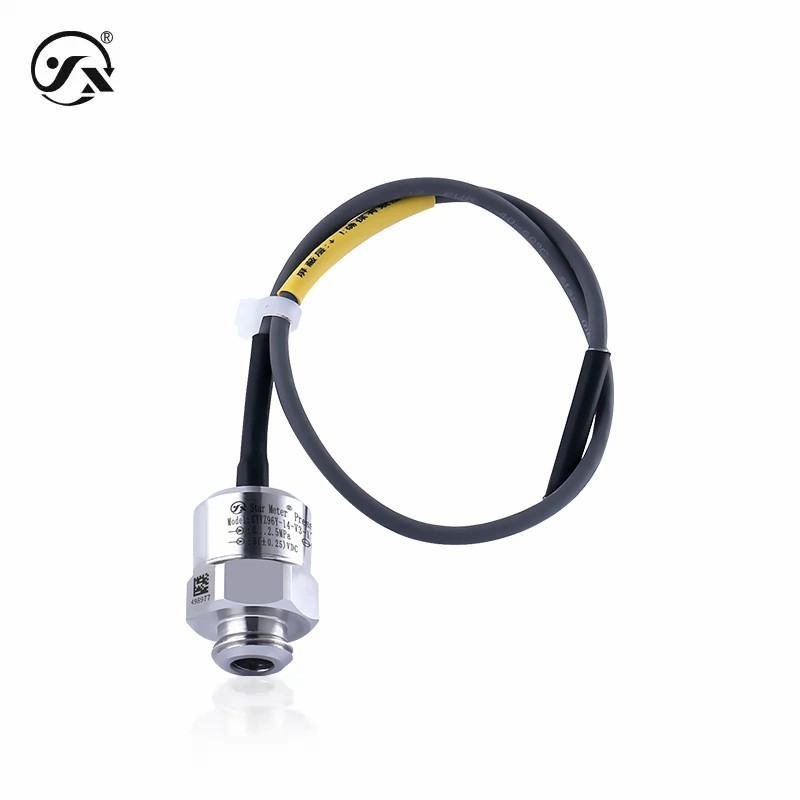

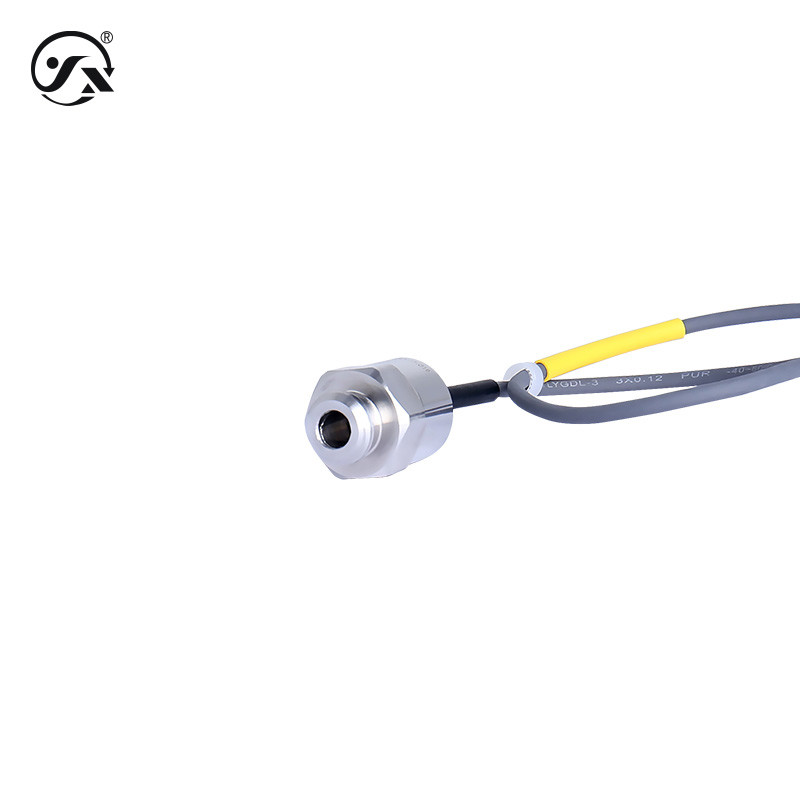

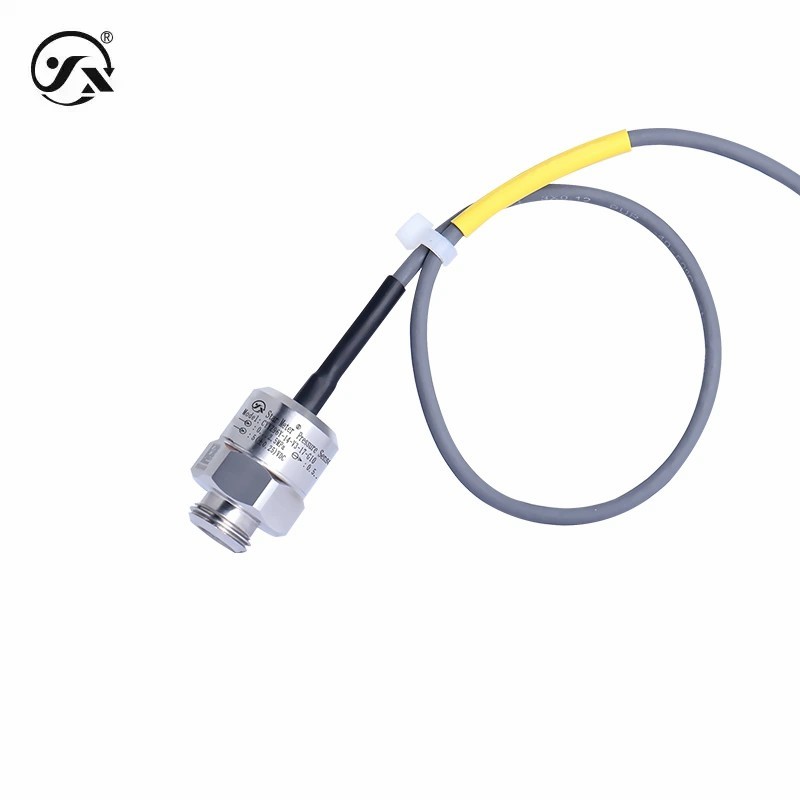

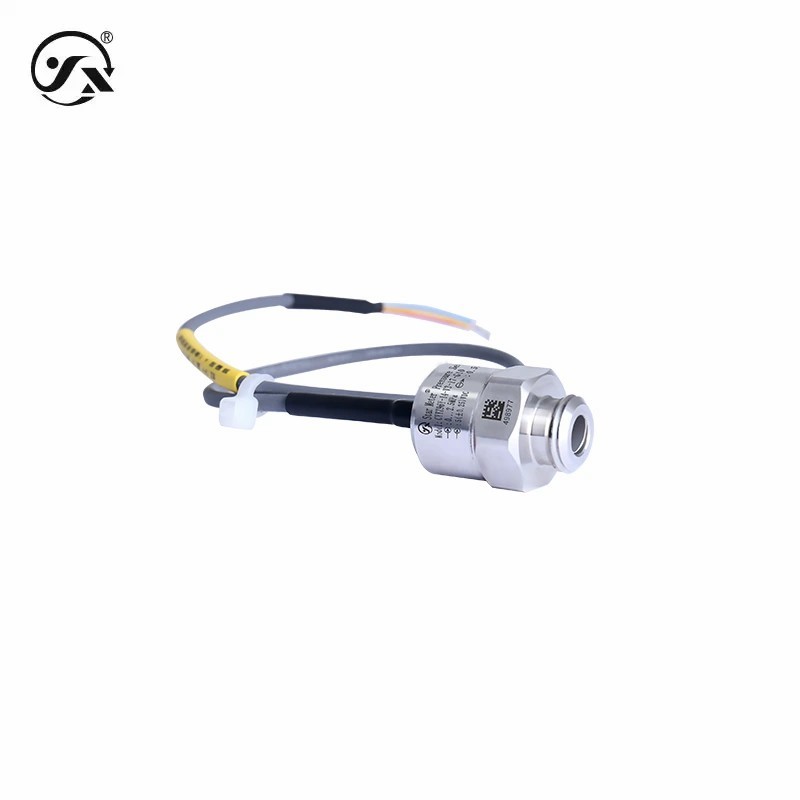

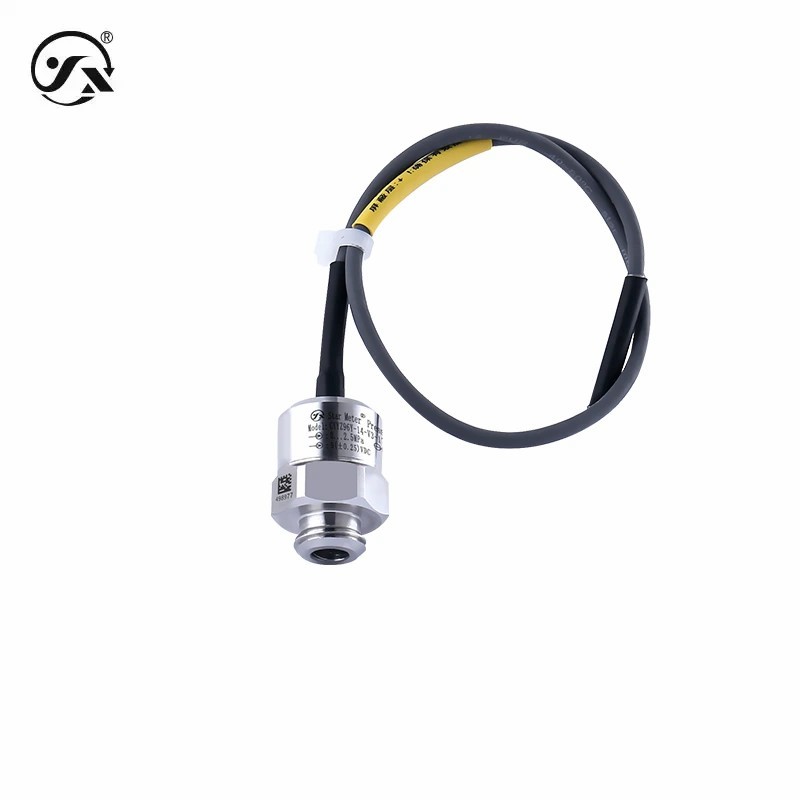

CYYZ96Y Compact Pressure Transmitter Range 0~2.5~10MPa Output 0.5~3VDC Power supply 5(±0.25)VDC accuracy 0.25%FS

CYYZ96Y Compact Pressure Transmitter Range 0~2.5~10MPa Output 0.5~3VDC Power supply 5(±0.25)VDC accuracy 0.25%FS
CYYZ96Y Compact Pressure Transmitter Range 0~2.5~10MPa Output 0.5~3VDC Power supply 5(±0.25)VDC accuracy 0.25%FS CYYZ96Y Compact Pressure Transmitter Range 0~2.5~10MPa Output 0.5~3VDC Power supply 5(±0.25)VDC accuracy 0.25%FS CYYZ96Y Compact Pressure Transmitter Range 0~2.5~10MPa Output 0.5~3VDC Power supply 5(±0.25)VDC accuracy 0.25%FS CYYZ96Y Compact Pressure Transmitter Range 0~2.5~10MPa Output 0.5~3VDC Power supply 5(±0.25)VDC accuracy 0.25%FS CYYZ96Y Compact Pressure Transmitter Range 0~2.5~10MPa Output 0.5~3VDC Power supply 5(±0.25)VDC accuracy 0.25%FS
Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ96Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Contact Now
Range: 0~2.5~10MPa Output: 0.5~3VDC
Power Supply: 5(±0.25)VDC Accuracy: 0.25%FS
Name: Pressure Transmitter Sensor

The CYYZ96Y compact pressure transmitter is well designed and compact, making it ideal for industrial equipment with limited installation space.





Base parameters
Measuring medium Liquid or gas (compatible with contact material)
Measuring range 0～2.5～10MPa
Pressure mode Sealing pressure (zero point with absolute pressure 101.3kPa)
Output signal 0.5～3VDC
Power supply range 5(±0.25)VDC
Media temperature -40～85℃
On-time 20ms
Response frequency Analog signal output≤ 20Hz
Accuracy class 0.25%FS (including repeatability≤0.02%FS, hysteresis ≤0.02%FS) Reference conditions:
temperature 15~25°C, atmospheric pressure 86~106kPa, humidity 45~75%RH
Temperature compensation -40～85℃
Stable performance ±0.2% FS/year
Temperature drift ±0.01%FS/℃
Degree of protection IP66
Durable performance 1X10⁶ times (lower range to upper range number of cycles)
Overall weight ≈ 30g cable≈ 15g/m
Maximum power ≤0.008Us(W) Note: Us=supply voltage.
Load characteristics Voltage type≥ 10kΩ
resolution 0.02%FS
Environmental conditions
Ambient temperature -40~85°C(no condensation, no condensation)
Overpressure and blasting
Overload pressure 200%FS
Burst pressure 500%FS,400%FS
Overall material
diaphragm 316L stainless steel (contact with the medium to be measured)
Process connection 316L stainless steel (contact with the medium to be measured)
enclosure 304 stainless steel
Cable material φ3.2 polyurethane shielded cable
Mechanical stability
Seismic performance 20g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance: 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ 500VDC
Dielectric strength: 500VAC
Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Product selection -Chinese (CN) PDF
Product selection -English (EN) PDF
Installation instructions -Chinese (CN) PDF
Installation instructions -English (EN) PDF
