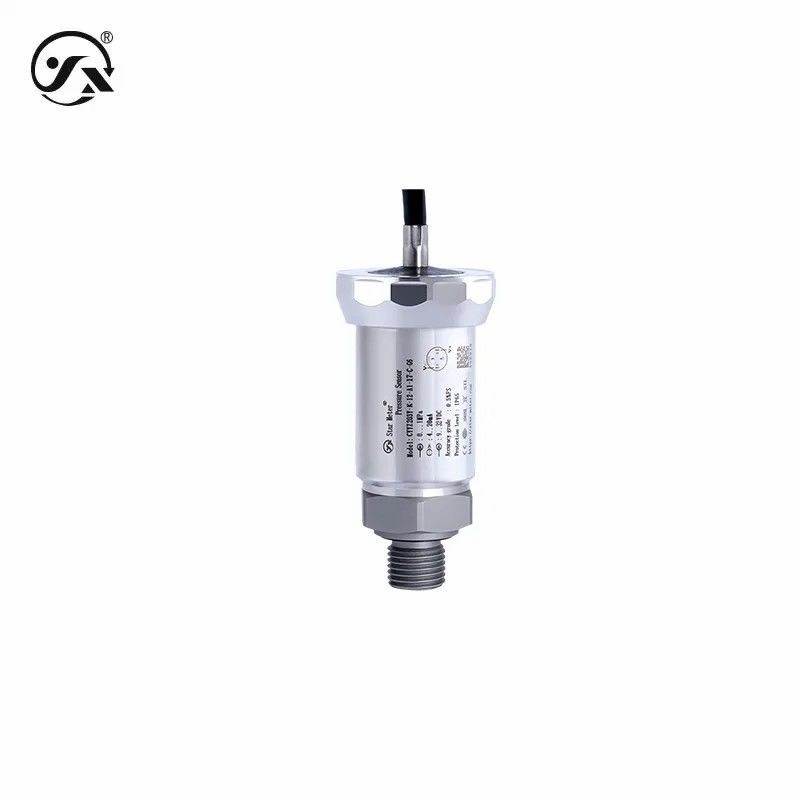

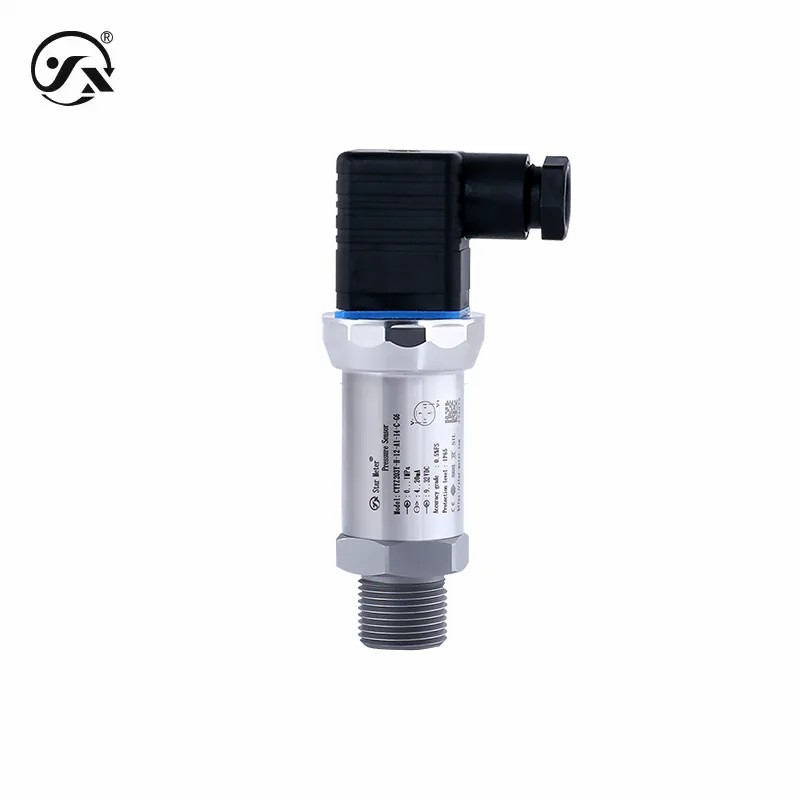

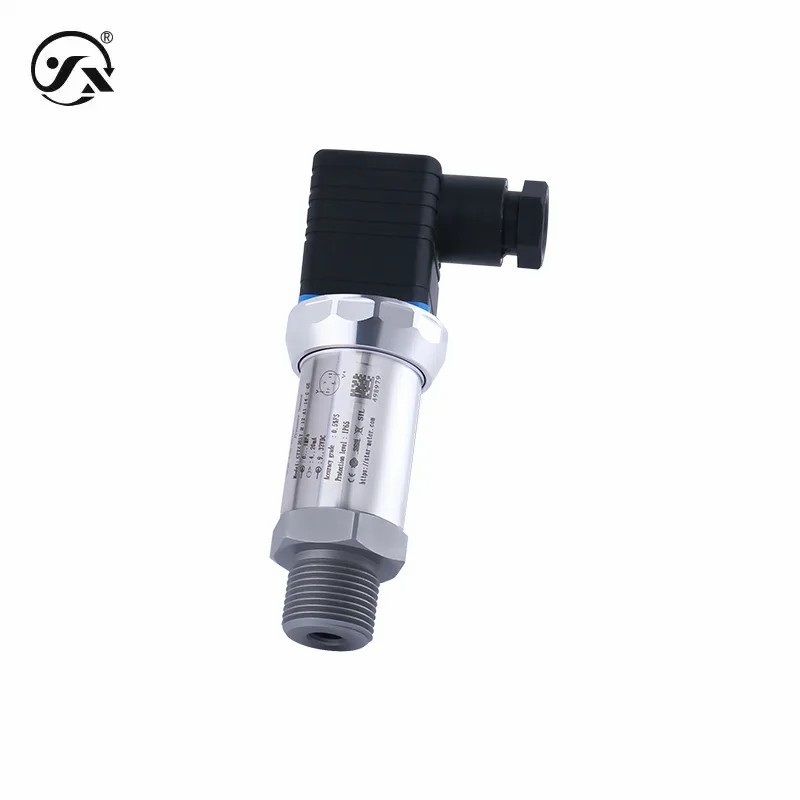

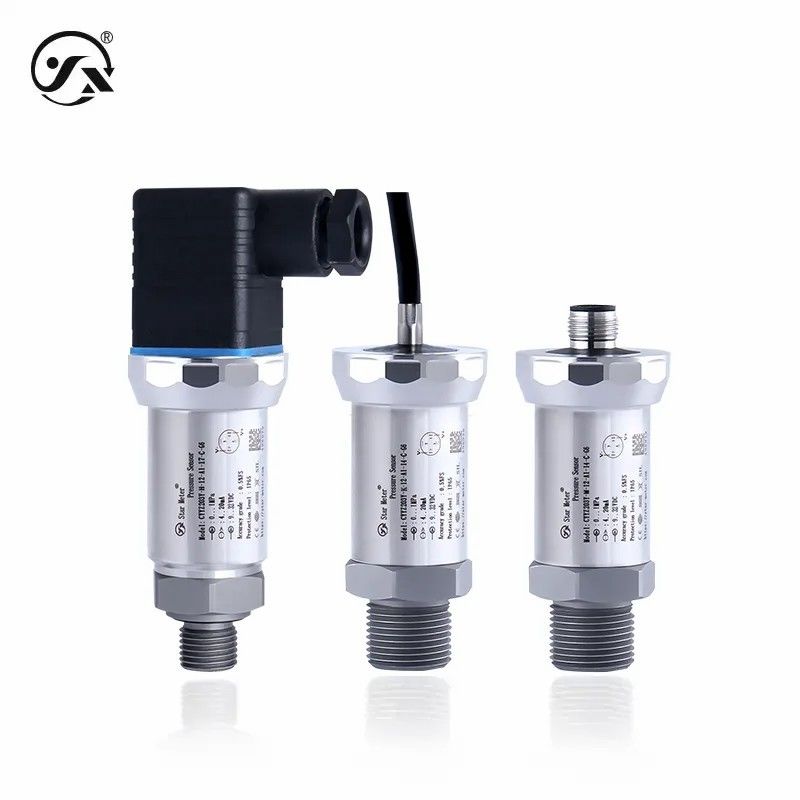

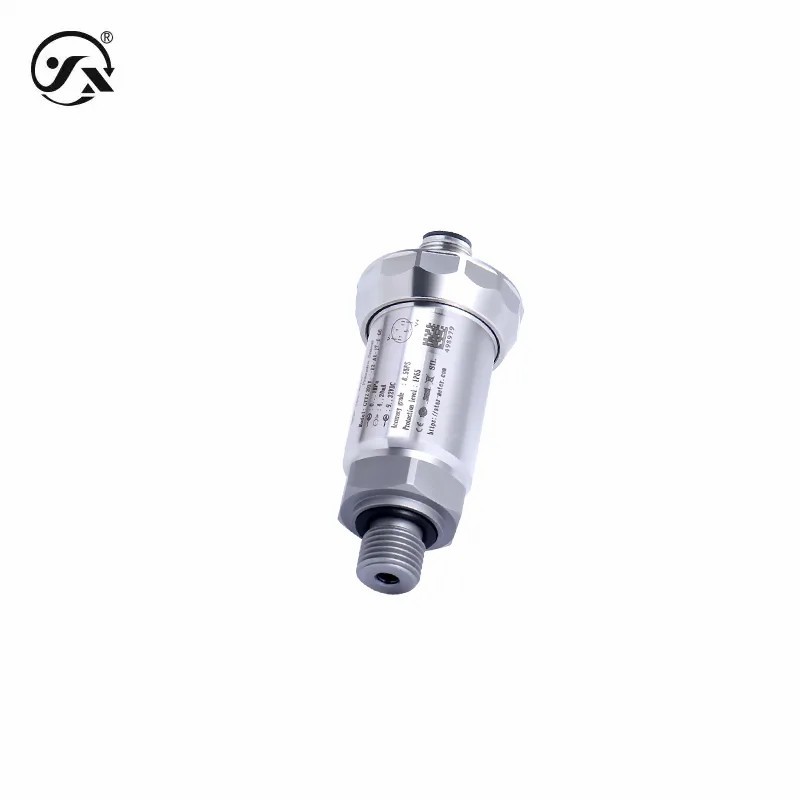

CYYZ203Y Micromelt Pressure Transmitter Range 0~1~260MPa Output 4~20mA, RS485 Power supply 9~32VDC accuracy 0.5%FS

CYYZ203Y Micromelt Pressure Transmitter Range 0~1~260MPa Output 4~20mA, RS485 Power supply 9~32VDC accuracy 0.5%FS
CYYZ203Y Micromelt Pressure Transmitter Range 0~1~260MPa Output 4~20mA, RS485 Power supply 9~32VDC accuracy 0.5%FS CYYZ203Y Micromelt Pressure Transmitter Range 0~1~260MPa Output 4~20mA, RS485 Power supply 9~32VDC accuracy 0.5%FS CYYZ203Y Micromelt Pressure Transmitter Range 0~1~260MPa Output 4~20mA, RS485 Power supply 9~32VDC accuracy 0.5%FS CYYZ203Y Micromelt Pressure Transmitter Range 0~1~260MPa Output 4~20mA, RS485 Power supply 9~32VDC accuracy 0.5%FS CYYZ203Y Micromelt Pressure Transmitter Range 0~1~260MPa Output 4~20mA, RS485 Power supply 9~32VDC accuracy 0.5%FS
Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ203Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Contact Now
Range: 0~1~260MPa Output: 4~20mA, RS485
Power Supply: 9~32VDC Accuracy: 0.5%FS
Name: Pressure Transmitter Sensor

CYYZ203Y pressure transmitter adopts glass micro-molten core, and the contact with the measuring medium is an integrated stainless steel structure, and there are no seals and welds inside the product, which fundamentally eliminates the hidden danger of leakage of the measurement medium. This feature is suitable for the measurement of hazardous media such as hydrogen and oxygen. This structure determines its high impact resistance, so it is also suitable for the measurement of instantaneous high impact media.





Base parameters
Measuring medium Liquid or gas (compatible with contact material)
Pressure range 0~1~260MPa (see range selection table for details)
Pressure mode Gauge pressure
Output signal 4~20mA, RS485 (standard Modbus-RTU protocol)
Supply voltage 9～32VDC
Accuracy class 0.5%FS
Media temperature -40～125℃
On-time 20ms
Temperature compensation -20～85℃
Stable performance ±0.3% FS/year
Temperature drift ±0.02%FS/°C (temperature compensated)
Degree of protection IP65 Note: The above protection level refers to the electrical connection achieved after it is complete
Durable performance 1X10⁶ times (lower range to upper range number of cycles)
Response frequency Analog output≤ 30Hz, digital output≤5Hz
Overall weight ≈190g
Resolution Analog output 0.02%FS, digital output 0.05%FS
Maximum power
Output signal 4~20mA ≤0.02Us(W),RS485 ≤0.015Us(W)
Power supply range
Load characteristics
Voltage type ≥10kΩ
Current type Current load ≤{(Us-7.5)÷0.02}Ω(Us=Supply voltage2)
Environmental conditions
Ambient temperature -40～85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overpressure and blasting
Overload pressure 200%FS
Burst pressure 500%FS
Overall material
Pressure measurement point 17-4PH stainless steel (contact with the medium to be measured)
Process connection 17-4PH stainless steel (contact with the medium to be measured)
enclosure 304 stainless steel
Hirschmann joints ABS engineering plastics
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance: 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ500VDC
Dielectric strength: 500VAC
Output limits
The output is minimal 4mA,0
Output maximum 20mA,2000
Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Product selection -Chinese (CN) PDF
Product selection -English (EN) PDF
Installation instructions -Chinese (CN) PDF
Installation instructions -English (EN) PDF
Protocol -Chinese (CN) PDF
Protocol -English (EN) PDF
