CYYZ501AY Ceramic Capacitive Pressure Transmitter Range -0.1~0~7MPa Accuracy 0.1%FS, 0.25%FS General industry use

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ501AY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -0.1~0~7MPa Output: 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC
Power Supply: 9~28VDC, 15~28VDC, 15~24VDC Accuracy: 0.1%FS, 0.25%FS
Name: Pressure Transmitter Sensor

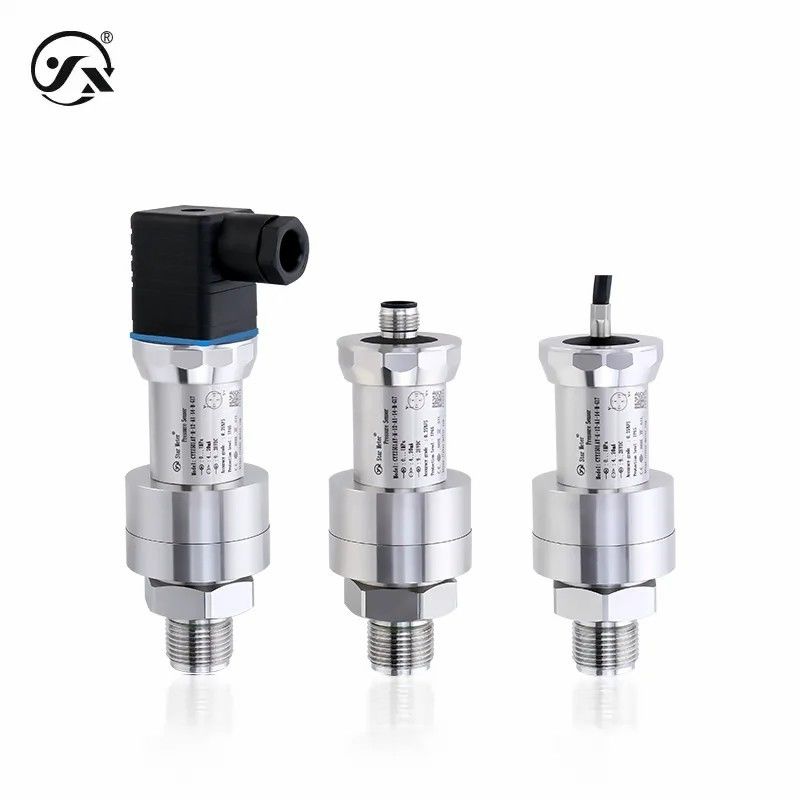

CYYZ501AY ceramic capacitive pressure transmitter is carefully designed and has the characteristics of high precision, high pressure resistance and vacuum resistance. Ideal for on-site pressure measurement of vacuum level and high withstand pressure.





Basic parameters
Measuring medium Liquid or gas (compatible with contact materials)
Measuring range -0.1~0~7MPa (see range selection table for details)
pressure type Gauge pressure, absolute pressure, negative pressure
Medium temperature -40~85℃
connection time 20ms
Stable performance ±0.1% FS/year
temperature drift ±0.01%FS/℃ (within temperature compensation range) ±0.05%FS/℃ (outside temperature compensation range)
Temperature compensation -20~80℃
Explosion-proof type Intrinsically safe Ex ia ⅡC T6 Ga (4~20mA output only)
Protection level IP65
Note: The above protection level refers to the level achieved after the electrical connection is complete.
Accuracy level 0.1%FS, 0.25%FS
response frequency Analog signal output ≤30Hz Digital signal output ≤5Hz
overall weight ≈381g
resolution Analog output 0.01%FS, digital output 0.05%FS
Output power supply
output 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC
powered by 9~28VDC, 15~28VDC, 15~24VDC
Maximum power
output 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC
power ≤0.02Us(W), ≤0.015Us(W), ≤0.008Us(
Load characteristics
voltage type ≥10kΩ
Current type Load≤{(Us-12)÷0.02}Ω (Us=supply voltage)
environmental conditions
ambient temperature -40~85℃
environment humidity 0%~95%RH (no condensation, no condensation)
Overpressure and explosion
overload pressure 0.2MPa, 0.27MPa, 0.33MPa, 0.53MPa, 0.67MPa, 1.2MPa, 1.67MPa, 2.67MPa, 4MPa, 7MPa, 0.27MPa, 0.33MPa, 0.53MPa, 0.67MPa, 1.2M
Burst pressure 0.3MPa, 0.4MPa, 0.5MPa, 0.8MPa, 1MPa, 1.8MPa, 2.5MPa, 4MPa, 6MPa, 8MPa, 0.4MPa, 0.5MPa, 0.8MPa, 1MPa, 1.8MPa
overall material
Diaphragm Ceramics (contact with measured medium)
process connection 304 stainless steel (contact with measured medium)
shell 304 stainless steel
Core seal See pressure and burst charts (contact with measured medium)
ED circle Fluorine rubber
Hirschmann joint ABS engineering plastics
mechanical stability
Anti-vibration performance 10g(20…2000Hz) complies with IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but doesn’t work
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
Output limits
Output minimum 4mA, 0, 0.001VDC
Output maximum 20mA, 2000, 10VDC, 5VDC
manual
Product Information—Chinese (CN) PDF
Product Information—English (EN) PDF
Product Selection—Chinese (CN) PDF
Product Selection—English (EN) PDF
Installation Instructions—Chinese (CN) PDF
Installation Instructions—English (EN) PDF
Protocol—Chinese (CN) PDF
Protocol—English (EN) PDF
