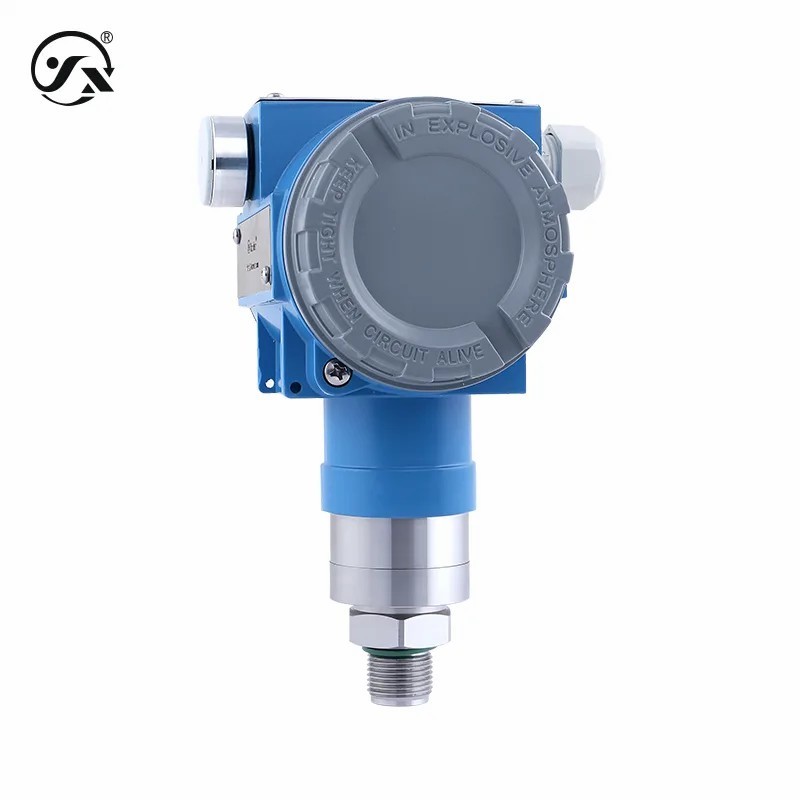

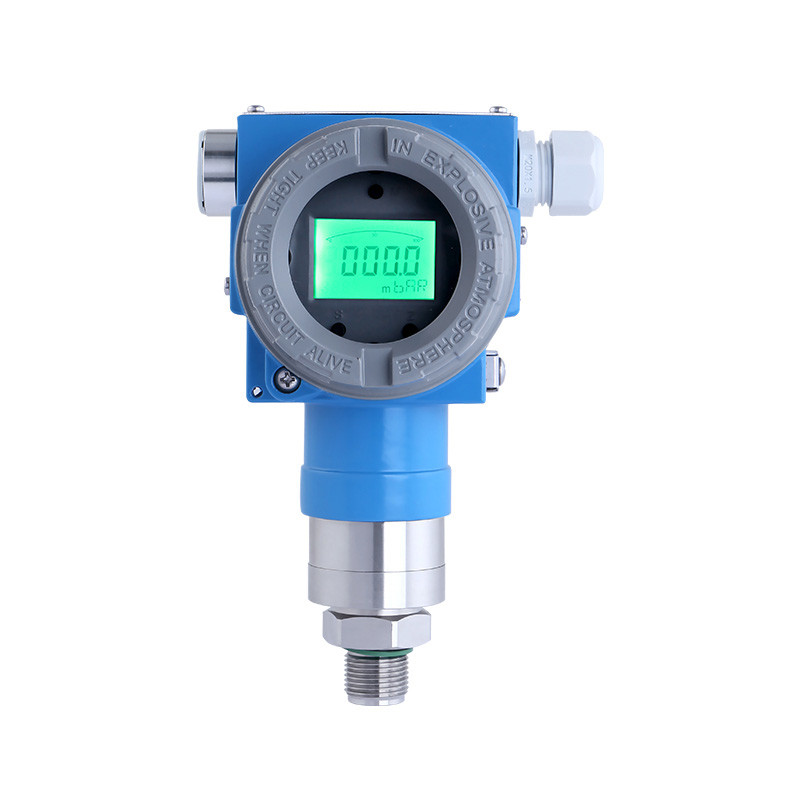

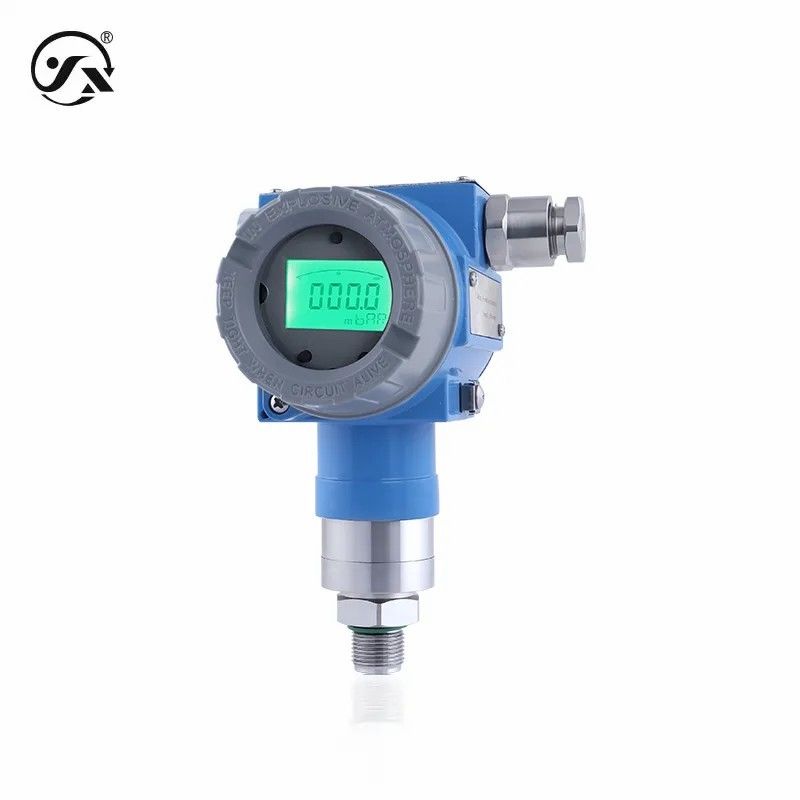

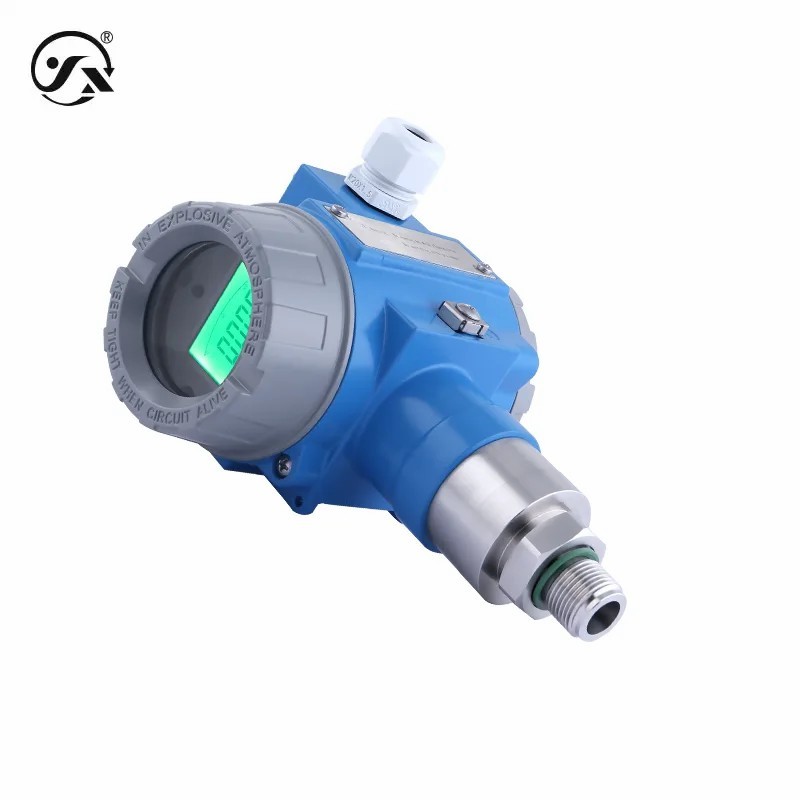

CYYZ501CY Ceramic Capacitive Pressure Transmitter Range -0.1~0~7MPa General industry IP66 Explosion-proof

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ501CY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -0.1~0~7MPa Output: 4~20mA, 4~20mA HART, RS485, 0~10VDC, 0~5VDC, 1~5VDC
Power Supply: 9~28VDC, 15~28VDC, 13~28VDC, 15~24VDC Accuracy: 0.1%FS, 0.25%FS
Name: Pressure Transmitter Sensor

CYYZ501CY ceramic capacitive pressure transmitter is carefully designed, with the characteristics of high precision, high voltage resistance, vacuum resistance and so on. Ideal for on-site pressure measurement of vacuum level and high withstand pressure. It has a variety of explosion-proof function options, intrinsically safe type, dust intrinsically safe type, flameproof type, explosion-proof dust type, and can also choose HART protocol communication, cost-effective





Basic parameters
Measuring medium Liquids or gases (compatible with contact materials)
Pressure range -0.1~0~7MPa (see range selection table for details)
Pressure mode Gauge pressure, absolute pressure, negative pressure
Medium temperature -40~85℃
Turn-on time 20ms
Accuracy class 0.1%FS,0.25%FS
Stable performance ±0.1% FS/year
Temperature drift ±0.01%FS/°C (within temperature compensation) ±0.05%FS/°C (outside temperature compensation)
Temperature compensation -20~80℃
Explosion-proof type Flameproof Ex db II.C T6 Gb
Flameproof Dust Type Ex tb IIIC T80°C Db
Intrinsically Safe Ex ia II.C T6 Ga (4~20mA/4~20mA HART output only)
Dust Intrinsically Safe Ex iaD 20 T80°C (4~20mA/4~20mA HART output only).
Note: Intrinsically safe must be powered by a safety barrier or an intrinsically safe power supply
Ingress protection IP66
Note: The above protection level refers to the level achieved when the electrical connection is complete
Frequency of response Analog signal output≤ 30Hz digital signal output≤ 5Hz HART communication ≤ 10Hz
Overall weight No ≈ 1.25kg with ≈ 1.4kg
resolution Analog output 0.01%FS, digital output 0.05%FS
Output power
Output signal 4~20mA,RS485,0~10VDC,
0~5VDC,1~5VDC,4~20mA HART
Power supply range 9~28VDC,13~28VDC,15~28VDC,15~24VDC
Power range
Voltage type ≤0.02Us(W),≤0.008Us(W)
Current type ≤0.02Us(W)
Digital ≤0.02Us(W),≤0.015Us(W)
Load characteristics
Current type No display load ≤{(Us-7.5)÷0.02}Ω
With display load≤{(Us-12)÷0.02}Ω (Us=supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(无冷凝无结露)
Overload capacity
Overload pressure 0.2MPa,0.27MPa,0.33MPa,0.53MPa,0.67MPa,1.2MPa,1.67MPa,2.67MPa,4MPa,7MPa
0.27MPa,0.33MPa,0.53MPa,0.67MPa,1.2MPa
Burst pressure 0.3MPa,0.4MPa,0.5MPa,0.8MPa,1MPa,1.8MPa,2.5MPa,4MPa,6MPa,8MPa,0.4MPa,0.5MPa,0.8MPa,1MPa,1.8MPa
Overall material
diaphragm Ceramics (in contact with the medium to be measured)
Process connections 304 stainless steel (in contact with the medium to be measured)
enclosure Die-cast aluminum
Core seals Seen pressure and burst charts (contact with the medium to be measured)
ED CIRCLE Fluoroglue
Display window ≈6mm explosion-proof glass
Mechanical stability
Vibration resistance 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact Resistance: 500g/ms meets IEC60068-2-27 standard
Electrical protection
Short-circuit protection eternity
Anti-polarity protection No damage, but no work
Insulation resistance ≥100MΩ 500VDC
Dielectric Strength: 500VAC
Output limits
The output is minimal 4mA,0,0.001VDC,3.8mA
The output is maximum 20mA,2000,10VDC,5VDC,22mA
