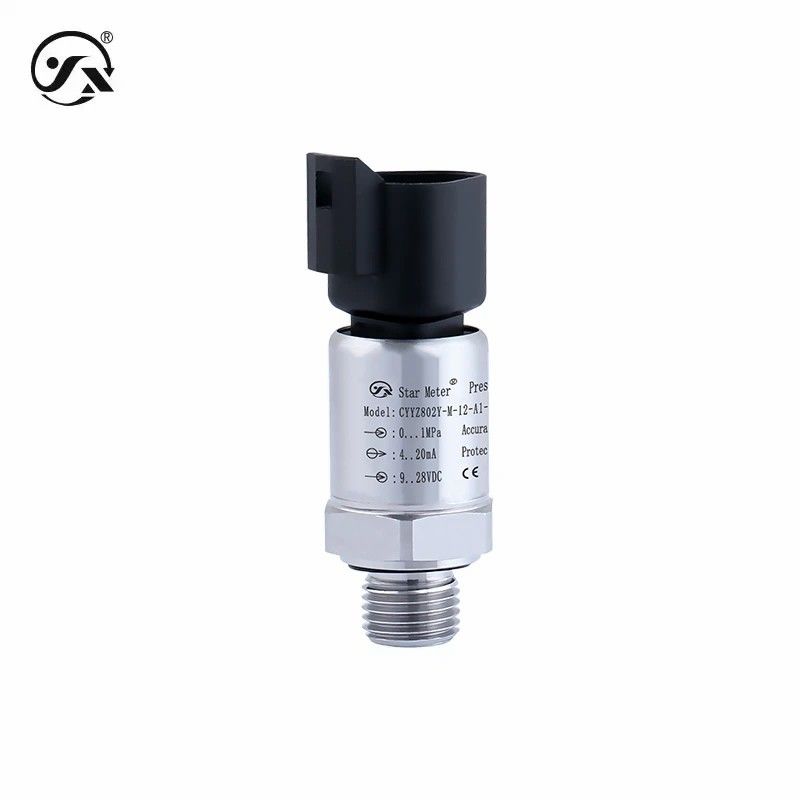

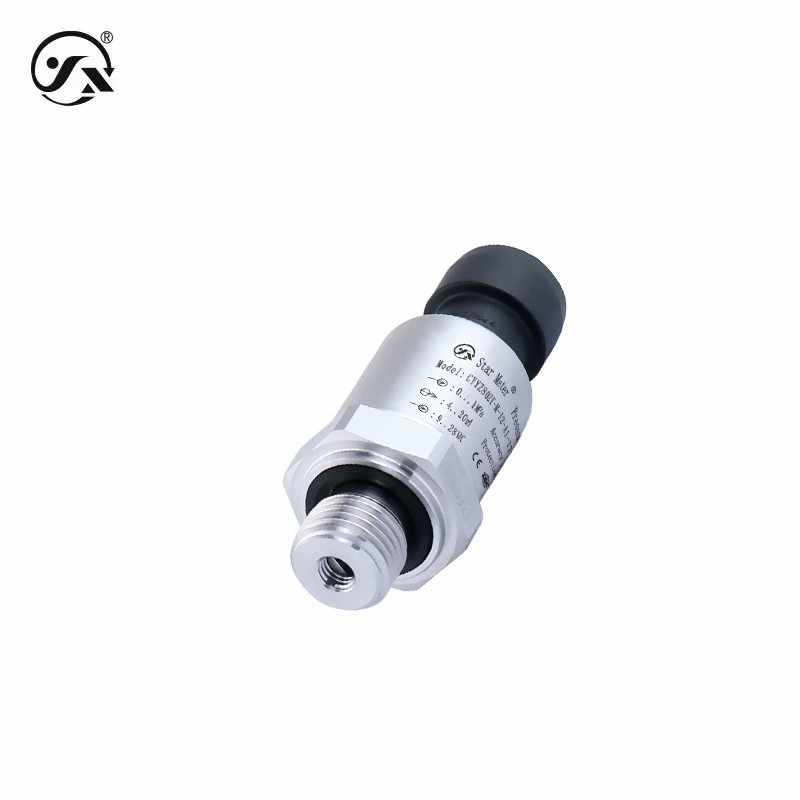

CYYZ802Y Special Type Pressure Transmitter Range 0~1~60MPa Construction machinery Output 4~20mA Accuracy 0.5%FS

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ802Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: 0~1~60MPa Output: 4~20mA
Power Supply: 9~28VDC Accuracy: 0.5%FS
Name: Pressure Transmitter Sensor

The CYYZ802Y-specific pressure transmitter is packaged with a metal-based pressure-sensitive chip (sputtering film), which is designed to meet the requirements of these working conditions in the hydraulic system of construction machinery, such as serious cavitation, liquid hammer phenomenon and high pressure peak, large power fluctuation, large vibration interference, and harsh environment.





Basic parameters
Measuring medium Liquids or gases (compatible with contact materials)
Measuring range 0~1~60MPa (see range selection table for details)
Type of pressure Gauge pressure
Output signal 4~20mA
Supply voltage 9~28VDC
Accuracy class 0.5%FS
Medium temperature -40~105℃
Turn-on time 20ms
Frequency of response 1kHz
Stable performance ±0.2% FS/year
Temperature compensation -40~85℃
Temperature drift ±0.01%FS/°C (within temperature compensation) ±0.03%FS/°C (outside temperature compensation)
Overall weight No display ≈ 190g with display ≈ 270g
Ingress protection See Outline & Dimensions
Durable performance 1X108
CYCLES (NUMBER OF CYCLES FROM LOWER TO UPPER RANGE)
Maximum power 0.02Us(W) Note: Us=supply voltage
Overall weight ≈55g
resolution 0.01%FS
Load characteristics
Voltage type ≥10kΩ
Current type Current type: ≤{(Us-8)÷0.02}Ω (Us=supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH (no condensation, no condensation)
Overload capacity
Overload pressure 3 times 3 times 2.5 times
Burst pressure 40 times 10 times and ≤ 400MPa ≤ 400MPa
Overall material
diaphragm 17-4PH stainless steel (in contact with the medium to be measured)
Process connections 304 stainless steel (in contact with the test medium)
enclosure 304 stainless steel
ED CIRCLE nitrile rubber
Mechanical stability
Random vibration 20g in line with GB/T2423.56-2006
Masahiro vibrates 14.1g in accordance with GB/T2423.10-2008
impact 500g/ms meets IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Reverse polarity protection No damage, but no work
Insulation resistance ≥100MΩ500VDC
Dielectric Strength: 500VAC
