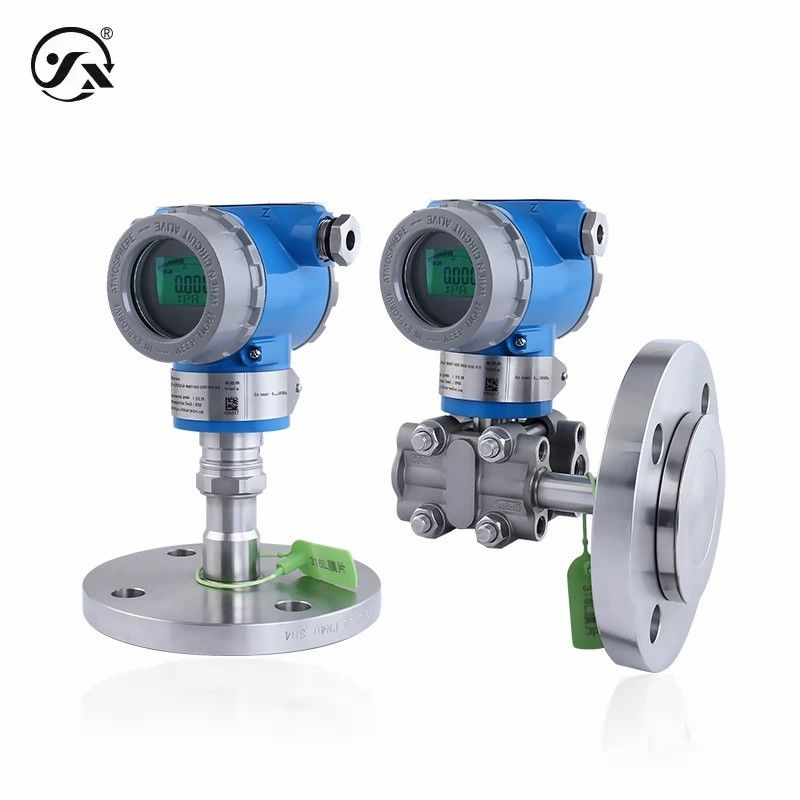

CYYZ3051DAY Monocrystalline Silicon Single Flange Pressure Transmitter Range 0~10kPa~3MPa Accuracy ±0.2% SPAN, ±0.5% SPAN

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ3051DAY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: 0~10kPa~3MPa Output: 4~20mA HART
Power Supply: 12~32VDC, 15~24VDC Accuracy: ±0.2% SPAN, ±0.5% SPAN
Name: Pressure Transmitter Sensor

CYYZ3051DAY monocrystalline silicon single-flange pressure transmitter uses monocrystalline silicon resonant sensor technology. Its single-flange structure realizes mechanical isolation and thermal insulation, and can cope with complex corrosive media, high-temperature media and other sites. Suitable for measuring the pressure of liquids, gases or vapors. It has a variety of explosion-proof functions, intrinsically safe type, dust intrinsically safe type, flameproof type, and flameproof dust type.





Basic parameters
Measuring medium Liquid or gas (compatible with contact materials)
pressure type Absolute pressure, gauge pressure
Medium temperature -40~110℃
output signal 4-20mA HART protocol
Power supply range 12~32VDC, 15~24VDC (intrinsically safe and explosion-proof only)
Maximum power ≤0.02Us(W)
connection time 20ms
Stable performance ±0.05%URL/year
Explosion-proof level Explosionproof type Ex d Ⅱ C T6 Gb
Explosionproof dust type Ex tb IIIC T80℃ Db
Intrinsically safe type Ex ia ⅡC T6 Ga
dust intrinsically safe type Ex ia ⅢC T200 80℃ Da
Note: Intrinsic safety must be passed through a safety barrier or intrinsically safe power supply powered by
Protection level IP66
Note: The above protection level refers to the level achieved after the electrical connection is complete.
response frequency The time constant is adjustable, in increments of 0.1 seconds, from as low as 32 seconds. If the damping time is 0, the default is 0.1 (the lowest is 0.1).
Load characteristics
HART current type Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
environmental conditions
No LCD liquid crystal display ambient temperature -40~85℃
With LCD display ambient temperature -20~70℃
environment humidity 0%~95%RH (no condensation, no condensation)
overall material
Diaphragm 316L stainless steel/Hastelloy C/tantalum (contact with the measured medium)
flange 304/316L stainless steel
Clamp block 304 stainless steel (side-mounted type only)
Filling fluid Silicone oil, high temperature silicone oil, mineral oil, fluorine oil
bolt 304 stainless steel (side-mounted type only)
case die cast aluminum
display window ≈6mm explosion-proof glass
mechanical stability
Anti-vibration performance 10g(20…2000Hz) complies with IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but doesn’t work
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
Output limits
Output minimum 3.8mA
Output maximum 22mA
