Name: CYYZ3051ZAY Monocrystalline Silicon Direct-Mount Pressure Transmitter Range 0~1kPa~10MPa Output: 4~20mA HART
Brand: Star Sensor Manufacturing Co., Ltd
SKU: CYYZ3051ZAY
Price: 73.00 USD
Availability: InStock

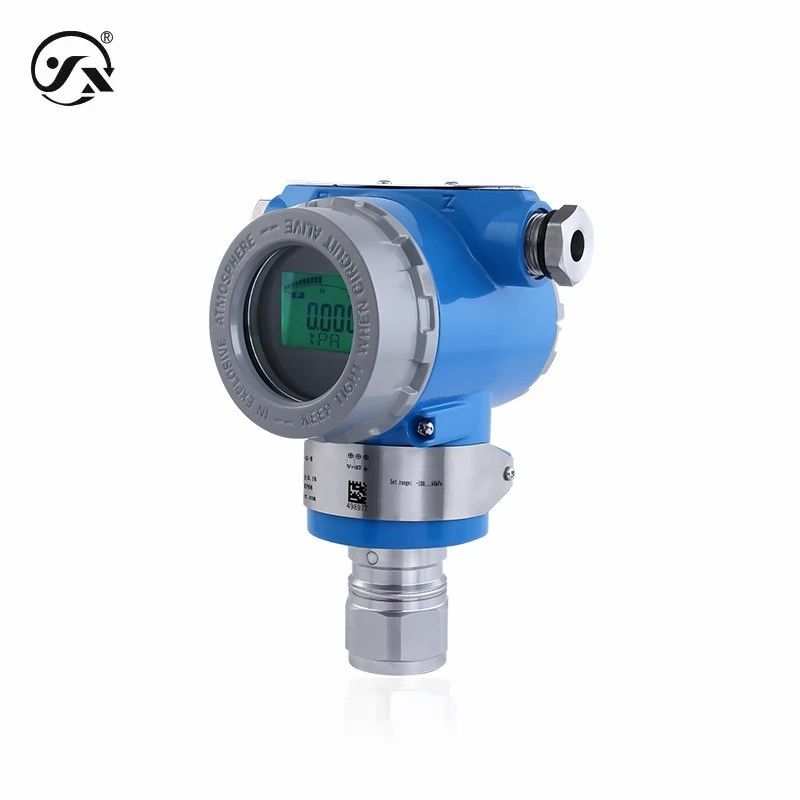

CYYZ3051ZAY Monocrystalline Silicon Direct-Mount Pressure Transmitter Range 0~1kPa~10MPa Output: 4~20mA HART

Basic Information

Place of Origin:	China
Brand Name:	Star merter
Model Number:	CYYZ3051ZAY

Minimum Order Quantity:	1PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	30000 Piece/Month

Contact Now

Range:

0~1kPa~10MPa

Output:

4~20mA HART

Power Supply:

12~32VDC, 15~24VDC

Accuracy:

±0.075% SPAN, ±0.1% SPAN, ±0.2% SPAN

Name:

Pressure Transmitter Sensor

CYYZ3051ZAY monocrystalline silicon direct-mount pressure transmitters use monocrystalline silicon resonant sensor technology. Suitable for measuring the pressure of liquids, gases or vapors. It has a variety of explosion-proof functions, intrinsically safe type, dust intrinsically safe type, flameproof type, and flameproof dust type.

Basic parameters
Measuring medium	Liquid or gas (compatible with contact materials)
pressure type	Absolute pressure, gauge pressure
Medium temperature	-40～110℃
output signal	4-20mA HART protocol
Power supply range	12～32VDC, 15～24VDC (intrinsically safe and explosion-proof only)
Maximum power	≤0.02Us(W)
connection time	20ms
Stable performance	±0.05%URL/year
Explosion-proof level	Explosionproof type Ex d Ⅱ C T6 Gb Explosionproof dust type Ex tb IIIC T80℃ Db Intrinsically safe type Ex ia ⅡC T6 Ga dust intrinsically safe type Ex ia ⅢC T200 80℃ Da Note: Intrinsic safety must be passed through a safety barrier or intrinsically safe power supply powered by
Protection level	IP66 Note: The above protection level refers to the level achieved after the electrical connection is complete.
response frequency	The time constant is adjustable, in increments of 0.1 seconds, from as low as 32 seconds. If the damping time is 0, the default is 0.1 (the lowest is 0.1).
overall weight	≈1.55kg
Load characteristics
HART current type	Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
environmental conditions
No LCD liquid crystal display ambient temperature	-40～85℃
With LCD display ambient temperature	-20～70℃
environment humidity	0%～95%RH (no condensation, no condensation)
overall material
Diaphragm	316L stainless steel/Hastelloy C/tantalum (contact with the measured medium)
O-ring	Fluorine rubber (contact with measured medium)
Filling fluid	Silicone oil, fluorine oil
Thread material	316L stainless steel (contact with measured medium)
case	die cast aluminum
display window	≈6mm explosion-proof glass
mechanical stability
Anti-vibration performance	10g(20…2000Hz) complies with IEC60068-2-6 standard
Impact resistance	500g/ms conforms to IEC60068-2-27 standard
electrical protection
Short circuit protection	permanent
Reverse polarity protection	No damage, but doesn’t work
Insulation resistance	≥100MΩ 500VDC
Dielectric strength	500VAC
Output limits
Output minimum	3.8mA
Output maximum	22mA

manual
Product Information—Chinese (CN)	PDF
Product Information—English (EN)	PDF
Product Selection—Chinese (CN)	PDF
Product Selection—English (EN)	PDF
Installation Instructions—Chinese (CN)	PDF
Installation Instructions—English (EN)	PDF
Button operation instructions—Chinese (CN)	PDF
Button operation instructions—English (EN)	PDF
