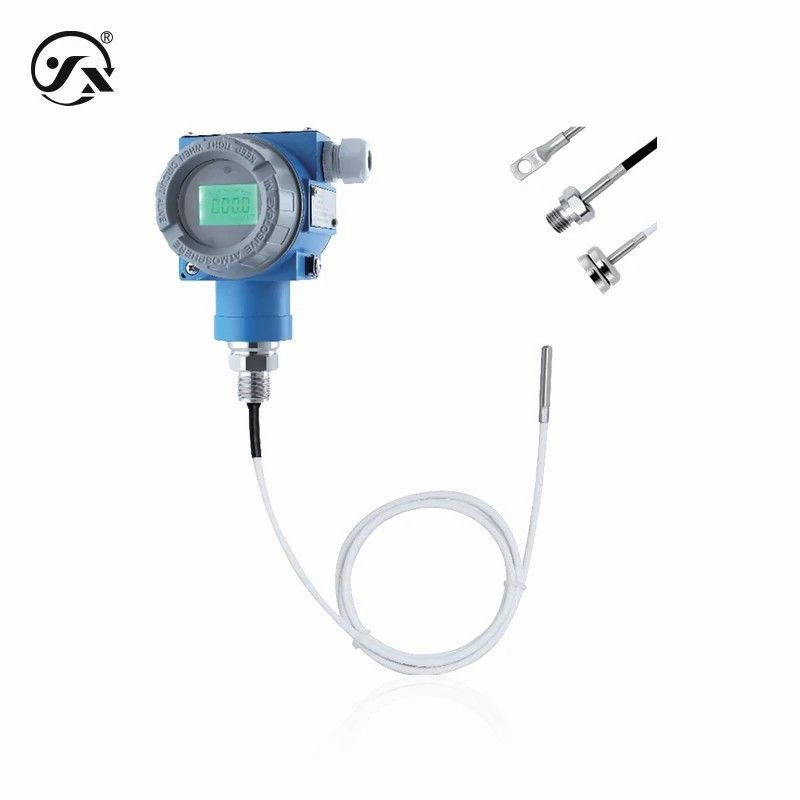

CWDZ21CY Split Explosion Proof Temperature Transmitter

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CWDZ21CY
Range: -50~80℃、-50~100℃、-50~260℃、-200~100℃ Output: 4~20mA、4~20mA HART、RS485、Pt100(1/3B Grade)
Power Supply: 9~32VDC、13~32VDC、15~32VDC、15~24VDC Accuracy: 0.25%FS、0.5%FS
Highlight:

Explosion Proof Temperature Transmitter

,

Split Temperature Transmitter

The CWDZ21CY split explosion-proof temperature transmitter is carefully designed and suitable for measuring the surface temperature, liquid temperature and gas temperature of the equipment. With explosion-proof and HART protocol communication options, cost-effective.



Basic parameters
Measuring medium Solid, liquid or gas (compatible with contact materials)
Measuring range -50~80℃, -50~100℃, -50~260℃, -200~100℃
Measuring element 1*Pt100(1/3B grade)
Response time 18s (compliant with IEC60751, 0.4m/s wind speed, 10°C step)
Stable class=”info” performance ±0.1%FS/year
Explosion-proof type Intrinsically safe type Ex iaⅡ CT6 Ga (current output only)
Dust intrinsically safe type Ex iaIII CT85℃ Da (current output only)
Note/Intrinsically safe must be powered by a safety barrier or intrinsically safe power supply
Connection time 400ms
Protection level Housing IP66 Probe IP68 Note/Protection level refers to the level achieved after electrical connections are complete.
Overall weight With display ≈ 1.4kg Without display ≈ 1.25kg
Accuracy level 0.25%FS, 0.5%FS meter accuracy 0.05%FS (LCD with backlight)
Resolution Analog output 0.02%FS, digital output 0.1℃
Load characteristics
Voltage Type ≥10kΩ
Current Type No display load ≤ {(Us-7.5) ÷ 0.02} Ω
Display load ≤ {(Us-12) ÷ 0.02} Ω (Us = supply voltage)
HART Current Type Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH (no condensation and no condensation)
Electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VA
Output Limitation
4-20mA 2.5mA~26mA
RS485 0~3500/7000
4-20mAHART 3.8mA~22mA
Overall material
shell Die-cast aluminum
Display window ≈6mm explosion-proof glass
Protective tube material 304 Stainless Steel
Nose pressure material Carbon steel nickel plated
Screw-in material 304 Stainless Steel
Magnetic material
Carbon steel nickel-plated + high-strength magnet seal Nitrile rubber
Cables PTFE shielded compensating cable (φ3.2mm) temperature resistance -200~260℃
Polyurethane shielded compensating cable (φ4.7mm) temperature resistance -50~100℃
Mechanical stability
Vibration resistance 10g (20…2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms, in compliance with IEC60068-2-27 standard
