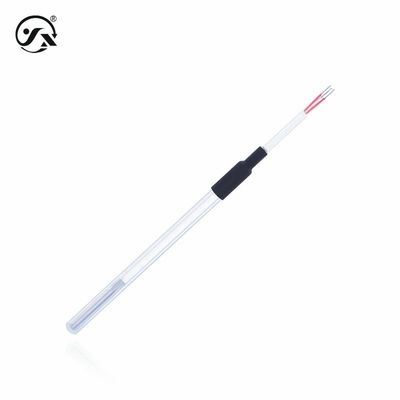

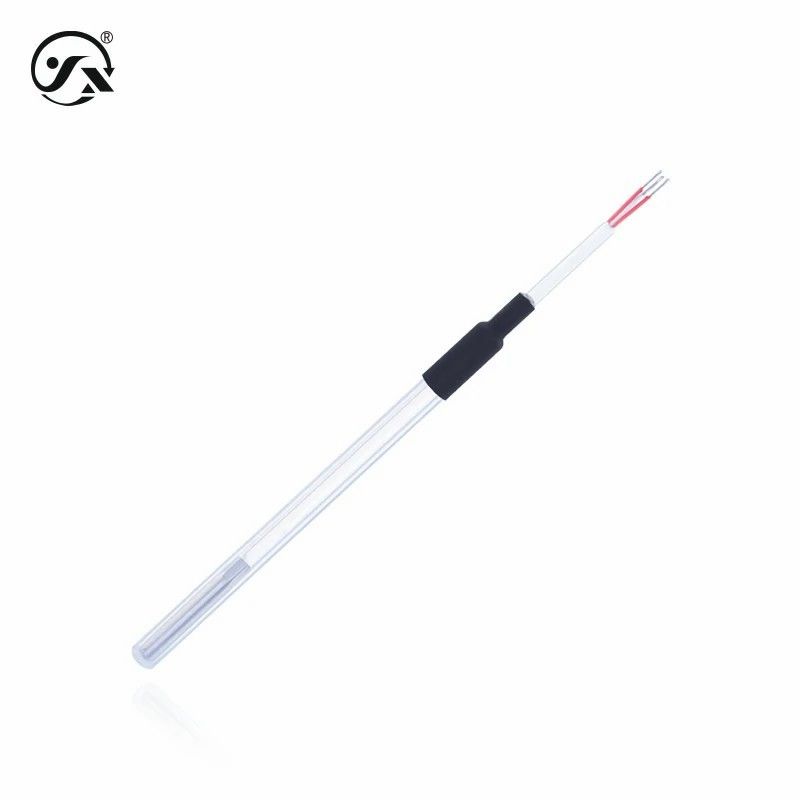

CWDZ70Y Anti Corrosion Type Platinum Resistance Temperature Sensor

CWDZ70Y Anti Corrosion Type Platinum Resistance Temperature Sensor
CWDZ70Y Anti Corrosion Type Platinum Resistance Temperature Sensor
Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CWDZ70Y
Contact Now
Measuring Element: Platinum Resistance Pt100 (1/3B Class) Measuring Range: -50~200°C, -200~100°C
Output: Pt100
Highlight:

Platinum Resistance Temperature Sensor

,

Anti Corrosion Type Temperature Sensor

CWDZ70Y anti-corrosion platinum resistance temperature sensor is suitable for measuring the temperature of corrosive liquids and gases.



Basic parameters
Measuring medium Liquid or gas (compatible with contact materials)
Measuring range -50~200°C, -200~100°C
Measuring element 1*Pt100(1/3B grade)
Response time ≤18s (compliant with IEC60751, 0.4m/s water flow, 10°C step)
Stable class=”info” performance ±0.1%FS/year
Protection level IP68
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Overall material
Sensor housing 304 Stainless Steel
Connect the cables XL06 PTFE shielded compensation cable (φ3.2mm)
Anti-corrosion protection pipe FEP polyfluorinated ethylene propylene temperature resistance -200～200℃ (contacting the measured medium)
Mechanical stability
Vibration resistance 10g (20…2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms, in compliance with IEC60068-2-27 standard



manual
Product Information—Chinese (CN) PDF
Product Information—English (EN) PDF
Product Selection—Chinese (CN) PDF
Product Selection—English (EN) PDF
Installation Instructions—Chinese (CN) PDF
Installation Instructions—English (EN) PDF
