| Place of Origin: | China |
|---|---|
| Brand Name: | Star merter |
| Model Number: | CWDZ71Y |
| Measuring Range: | -50~200°C, -200~100°C | Output Type: | 4~20mA, RS485, Pt100, 0~10VDC, 0~5VDC, 1~5VDC |
|---|---|---|---|
| Supply Voltage: | 9~36VDC, 12~36VDC | Accuracy Level: | 0.25%FS, 0.5%FS |
| Highlight: | Split Temperature Transmitter,Temperature Transmitter Anti Corrosion |
||

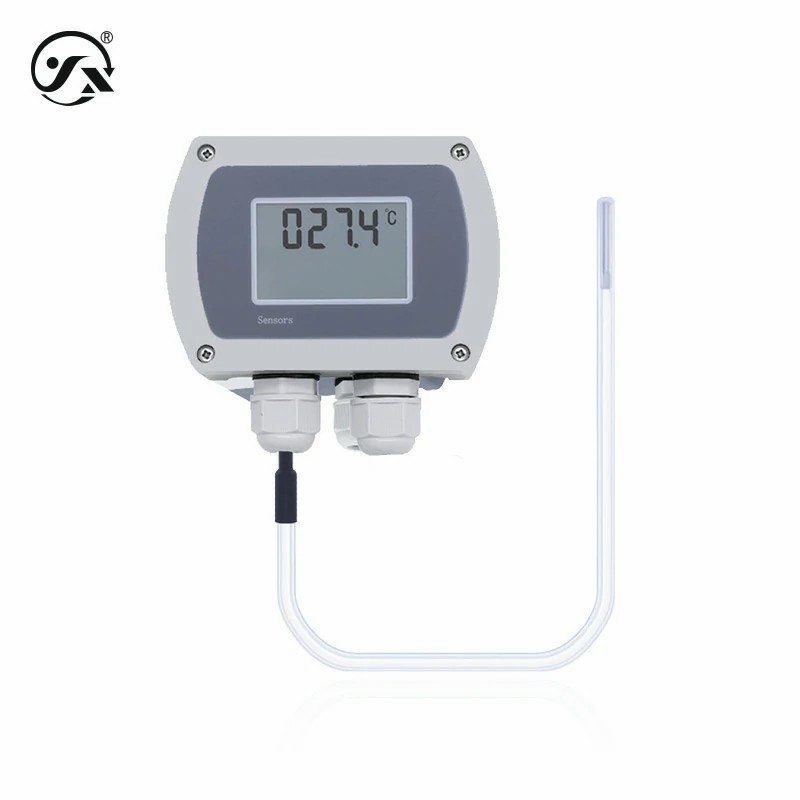

The CWDZ71Y anti-corrosion split temperature transmitter is well-designed and suitable for measuring the temperature of corrosive liquids and gases, with and without display.
| Basic parameters | |
| Measuring medium | Liquid or gas (compatible with contact materials) |
| Measuring range | -50～200℃,-200～100℃ |
| Output signal | 4～20mA, RS485, Pt100, 0～10VDC, 0～5VDC, 1～5VDC |
| Measuring element | 1*Pt100(1/3B grade) |
| Response time | 18s (compliant with IEC60751, 0.4m/s wind speed, 10°C step) |
| Stable class=”info” performance | ±0.1%FS/year |
| Connection time | 400ms |
| Protection level | Housing IP65 Probe IP68 Note/Protection level refers to the level achieved after electrical connections are complete. |
| Overall weight | With display ≈ 150g Without display ≈ 130g |
| Accuracy level | 0.25%FS, 0.5%FS |
| Resolution | Analog output 0.02%FS, digital output 0.1℃ |
| Load characteristics | |
| Voltage Type | ≥10kΩ |
| Current Type | Load ≤{(Us-7.5)÷0.02}Ω (Us=supply voltage) |
| Environmental conditions | |
| Ambient temperature | -40～85℃ |
| Ambient humidity | 0%～95%RH (no condensation and no condensation) |
| Electrical protection | |
| Short circuit protection | permanent |
| Reverse polarity protection | No damage, but not working |
| Insulation resistance | ≥100MΩ,500VDC |
| Dielectric strength | 500VAC |
| Output Limitation | |
| 4-20mA | 4mA~20mA |
| RS485 | 0~1500 |
| 0～10VDC | 0.001VDC~10VDC |
| 0～5VDC | 0.001VDC~5VDC |
| 1～5VDC | 0.001VDC~5VDC |
| Overall material | |
| shell | ABS engineering plastics |
| Cable locking head | Nylon (locking wire diameter 4-6mm) |
| show | LCD display without backlight |
| Probe material | 304 Stainless Steel |
| Seals | Nitrile rubber |
| Cables | PTFE shielded compensation cable (φ3.2mm) |
| Anti-corrosion protection pipe | FEP polyfluorinated ethylene propylene temperature resistance -200～200℃ (contacting the measured medium) |
| Mechanical stability | |
| Vibration resistance | 10g (20…2000Hz) in accordance with IEC60068-2-6 standard |
| Impact resistance | 500g/ms, in compliance with IEC60068-2-27 standard |
