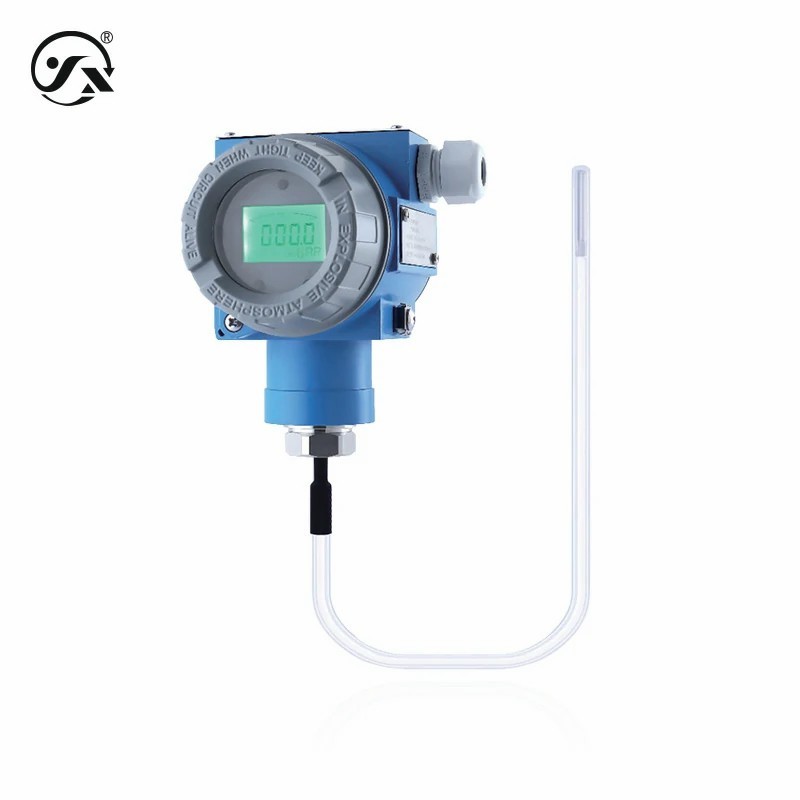

Name: CWDZ71CY Anti Corrosion Split Explosion Proof Temperature Transmitter
Brand: Star Sensor Manufacturing Co., Ltd
SKU: CWDZ71CY
Price: 73.00 USD
Availability: InStock

CWDZ71CY Anti Corrosion Split Explosion Proof Temperature Transmitter

Basic Information

Place of Origin:	China
Brand Name:	Star merter
Model Number:	CWDZ71CY

Contact Now

Range:

-50～200℃, -200～100℃

Output:

4～20mA, 4～20mA HART, RS485, Pt100 (1/3B Level)

Power Supply:

9～32VDC, 13～32VDC, 15～32VDC, 15～24VDC

Accuracy:

0.25%FS, 0.5%FS

Highlight:

Anti Corrosion Temperature Transmitter

Split Temperature Transmitter

Explosion Proof Temperature Transmitter

The CWDZ71CY anti-corrosion split explosion-proof temperature transmitter is carefully designed and suitable for measuring the temperature of corrosive liquids and gases. With explosion-proof and HART protocol communication options, cost-effective.

Basic parameters
Measuring medium	Liquid or gas (compatible with contact materials)
Measuring range	-50～200℃,-200～100℃
Measuring element	1*Pt100(1/3B grade)
Response time	18s (compliant with IEC60751, 0.4m/s wind speed, 10°C step)
Stable class=”info” performance	±0.1%FS/year
Explosion-proof type	Intrinsically safe type Ex ia ⅡC T6 Ga (current output only) Dust intrinsically safe type Ex ia IIIC T85℃ Da (current output only) Note/Intrinsically safe must be powered by a safety barrier or intrinsically safe power supply
Connection time	400ms
Protection level	Housing IP66 Probe IP68 Note/Protection level refers to the level achieved after electrical connections are complete.
Overall weight	With display ≈ 1.4kg Without display ≈ 1.25kg
Accuracy level	0.25%FS, 0.5%FS meter accuracy 0.05%FS (LCD with backlight)
Resolution	Analog output 0.02%FS, digital output 0.1℃
Load characteristics
Voltage Type	≥10kΩ
Current Type	No display load ≤ {(Us-7.5) ÷ 0.02} Ω Display load ≤ {(Us-12) ÷ 0.02} Ω (Us = supply voltage)
HART Current Type	Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
Environmental conditions
Ambient temperature	-40～85℃
Ambient humidity	0%～95%RH (no condensation and no condensation)
Electrical protection
Short circuit protection	permanent
Reverse polarity protection	No damage, but not working
Insulation resistance	≥100MΩ,500VDC
Dielectric strength	500VAC
Output Limitation
4-20mA	2.5mA~26mA
RS485	0~3500/7000
4-20mAHART	3.8mA~22mA
Overall material
shell	Die-cast aluminum
Display window	≈6mm explosion-proof glass
show	LCD display without backlight
Probe material
304 stainless steel seals	Nitrile rubber
Cables	PTFE shielded compensation cable (φ3.2mm)
Anti-corrosion protection pipe	FEP polyfluorinated ethylene propylene temperature resistance -200～200℃ (contacting the measured medium)
Mechanical stability
Vibration resistance	10g (20…2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance	500g/ms in accordance with IEC60068-2-27 standard

manual
Product Information—Chinese (CN)	PDF
Product Information—English (EN)	PDF
Product Selection—Chinese (CN)	PDF
Product Selection—English (EN)	PDF
Installation Instructions—Chinese (CN)	PDF
Installation Instructions—English (EN)	PDF
Protocol Description—Chinese (CN)	PDF
Protocol Description—English (EN)	PDF
