CYYZ51DAY Flat Membrane Pressure Transmitter Anti corrosion

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ51DAY
Range: -100kPa~0~6MPa (see Range Selection Table For Details) Output: 4~20mA, 4~20mA HART, RS485, 0~10VDC, 0~5VDC, 1~5VDC
Power Supply: 5~28VDC, 9~28VDC, 13~28VDC, 15~28VDC, 15~24VDC Accuracy: 0.1%FS, 0.25%FS, 0.5%FS
Highlight:

Flat Membrane Pressure Transmitter

,

Pressure Transmitter Anti corrosion

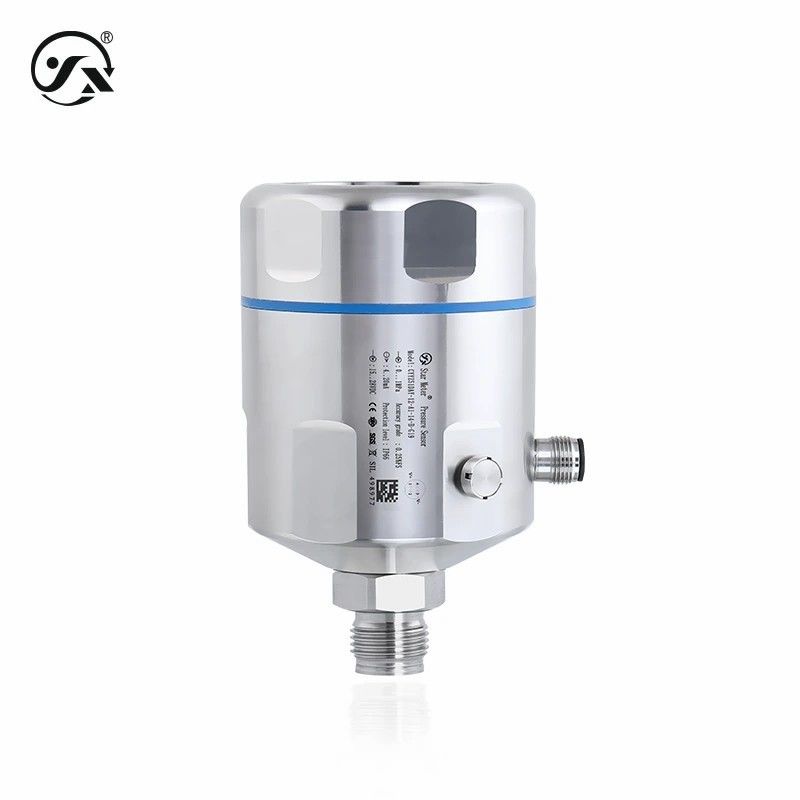

CYYZ51DAY flat-film pressure transmitters are designed to measure viscous or colloidal media. The design of the impulse hole is canceled, which effectively prevents the blockage of the impulse hole, and it has two explosion-proof functions of intrinsically safe type and dust intrinsically safe type, and can also choose HART protocol communication, which is cost-effective.



Basic parameters
Measuring medium Liquids, fluids, gases (compatible with contact materials)
Pressure range -100kPa~0~6MPa (see range selection table class=”info” for details)
Pressure mode Gauge pressure, absolute pressure, negative pressure
Medium temperature -40~85℃
Connection time 20ms
Stable class=”info” performance ±0.1%FS/year
Temperature drift ±0.01%FS/℃ (within temperature compensation range) ±0.05%FS/℃ (outside temperature compensation range)
Explosion-proof type Intrinsically safe type Ex iaⅡ CT6 Ga (only 4~20mA/4~20mAHART output)
Dust intrinsically safe type Ex iaD 20 T80℃ (only 4~20mA/4~20mAHART output)
Note/intrinsically safe must be powered by a safety barrier or intrinsically safe power supply
Protection level IP66
Note/The above protection level refers to the level achieved after the electrical connection is complete.
Durable performance 1X10⁶ times (number of cycles from lower limit to upper limit)
Response frequency Analog signal output ≤30Hz Digital signal output ≤5Hz HART communication ≤10Hz
Overall weight ≈1kg
Resolution Analog output 0.01%FS, digital output 0.05%FS
Maximum Power ≤0.02Us(W)
Load characteristics
Voltage Type ≥10kΩ
Current Type Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
HART Current Type Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH (no condensation and no condensation)
Overpressure and explosion
Overload pressure 300%FS, 200%FS, 200%FS, 200%FS, 150%FS, 150%FS, 12kPa, 50kPa, 300kPa, 480kPa, 750kPa, 800kPa, 1.2MPa, 2MPa, 3MPa, 5MPa
Burst pressure 600%FS, 500%FS, 500%FS, 400%FS, 400%FS, 300%FS, 20kPa, 200kPa, 600kPa, 900kPa, 1.25MPa, 2MPa, 3MPa, 5MPa, 9MPa, 12.5MPa
Overall material
Diaphragm 316L stainless steel (contacting the measured medium)
Process connection 304 stainless steel (contacting the measured medium)
shell 304 Stainless Steel
Core seal See the pressure and burst chart (contact with the measured medium)
Thread seals Fluorine rubber
Display window ≈6mm explosion-proof glass
Mechanical stability
Vibration resistance 10g (20…2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms in accordance with IEC60068-2-27 standard
Electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but not working
Insulation resistance ≥100MΩ500VDC
Dielectric strength 500VAC
Output Limitation
4-20mA 4mA~20mA
RS485 0~2000
0~10VDC 0.001VDC~10VDC
0~5VDC 0.001VDC~5VDC
1~5VDC 0.001VDC~5VDC
4-20mAHART 3.8mA~22mA
