Range: | -0.1~0~4MPa (see Range Selection Table For Details) | Output: | 4~20mA, 4~20mA HART, RS485, 0~10VDC, 0~5VDC, 1~5VDC |
---|---|---|---|
Power Supply: | 5~28VDC, 9~28VDC, 13~28VDC, 15~28VDC, 15~24VDC | Accuracy: | 0.25%FS, 0.5%FS |
Highlight: | Sanitary Pressure Transmitter,Pressure Transmitter Hygienic |

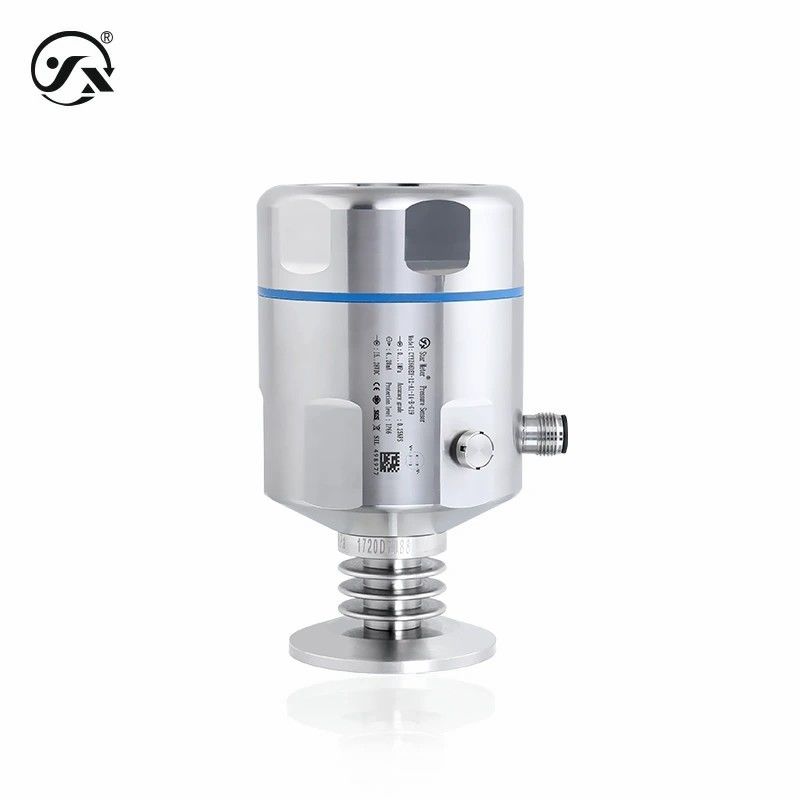

The CYYZ66DEY hygienic pressure transmitter is carefully designed and suitable for the application site with hygienic requirements, and the wetted part and diaphragm are made of 316L material and laser welding smoothing process, which meets the application requirements of the hygienic industry. Equipped with a variety of hygienic process connections, it is convenient to match the site under different working conditions. It has two explosion-proof functions of intrinsically safe type and dust intrinsically safe type, and can also choose HART protocol communication, which is cost-effective.
Basic parameters | |
Measuring medium | Liquids, fluids, gases (compatible with contact materials) |
Pressure range | -0.1~0~4MPa (see range selection table class=”info” for details) |
Pressure mode | Gauge pressure, absolute pressure, negative pressure |
Medium temperature | -40~130℃(Connection method: chuck, union) -40~85℃(Connection method: external thread) |
Connection time | 20ms |
Stable class=”info” performance | ±0.1%FS/year |
Temperature drift | ±0.01%FS/℃ (within temperature compensation range) ±0.05%FS/℃ (outside temperature compensation range) |
Explosion-proof type | Intrinsically safe type Ex iaⅡ CT6 Ga (only 4~20mA/4~20mAHART output) Dust intrinsically safe type Ex iaD 20 T80℃ (only 4~20mA/4~20mAHART output) Note/intrinsically safe must be powered by a safety barrier or intrinsically safe power supply |
Protection level | IP66 Note/The above protection level refers to the level achieved after the electrical connection is complete. |
Durable performance | 1X10⁶ times (number of cycles from lower limit to upper limit) |
Response frequency | Analog signal output ≤30Hz Digital signal output ≤5Hz HART communication ≤10Hz |
Overall weight | ≈1kg |
Resolution | Analog output 0.01%FS, digital output 0.05%FS |
Maximum Power | ≤0.02Us(W) |
Load characteristics | |
Voltage Type | ≥10kΩ |
Current Type | Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage) |
HART Current Type | Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage) |
Environmental conditions | |
Ambient temperature | -40~85℃ |
Ambient humidity | 0%~95%RH (no condensation and no condensation) |
Overpressure and explosion | |
Overload pressure | 300%FS, 200%FS, 200%FS, 200%FS, 12kPa, 50kPa, 300kPa, 480kPa, 750kPa, 800kPa, 1.2MPa, 2MPa |
Burst pressure | 600%FS, 500%FS, 500%FS, 400%FS, 20kPa, 200kPa, 600kPa, 900kPa, 1.25MPa, 2MPa, 3MPa, 5MPa |
Overall material | |
Diaphragm | 316L stainless steel (contacting the measured medium) |
Process connection | 316L stainless steel (contacting the measured medium) |
shell | 304 Stainless Steel |
Core seal | See the pressure and burst chart (contact with the measured medium) |
Thread seals | Fluorine rubber |
O-Ring | Silicone rubber (contacting the measured medium) |
ED Circle | Nitrile rubber |
Display window | ≈6mm explosion-proof glass |
Mechanical stability | |
Vibration resistance | 10g (20…2000Hz) in accordance with IEC60068-2-6 standard |
Impact resistance | 500g/ms, in compliance with IEC60068-2-27 standard |
Electrical protection | |
Short circuit protection | permanent |
Reverse polarity protection | No damage, but not working |
Insulation resistance | ≥100MΩ 500VDC |
Dielectric strength | 500VAC |
Output Limitation | |
4-20mA | 4mA~20mA |
RS485 | 0~2000 |
0~10VDC | 0.001VDC~10VDC |
0~5VDC | 0.001VDC~5VDC |
1~5VDC | 0.001VDC~5VDC |
4-20mAHART | 3.8mA~22mA |
