CYYZ571AY Anti Corrosion Pressure Transmitter with PVDF process connection

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ571AY
Range: -0.1~0~7MPa (see Range Selection Table For Details) Output: 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC
Power Supply: 9~28VDC, 15~28VDC, 15~24VDC Accuracy: 0.1%FS, 0.25%FS
Highlight:

Anti Corrosion Pressure Transmitter

,

PVDF process connection Pressure Transmitter

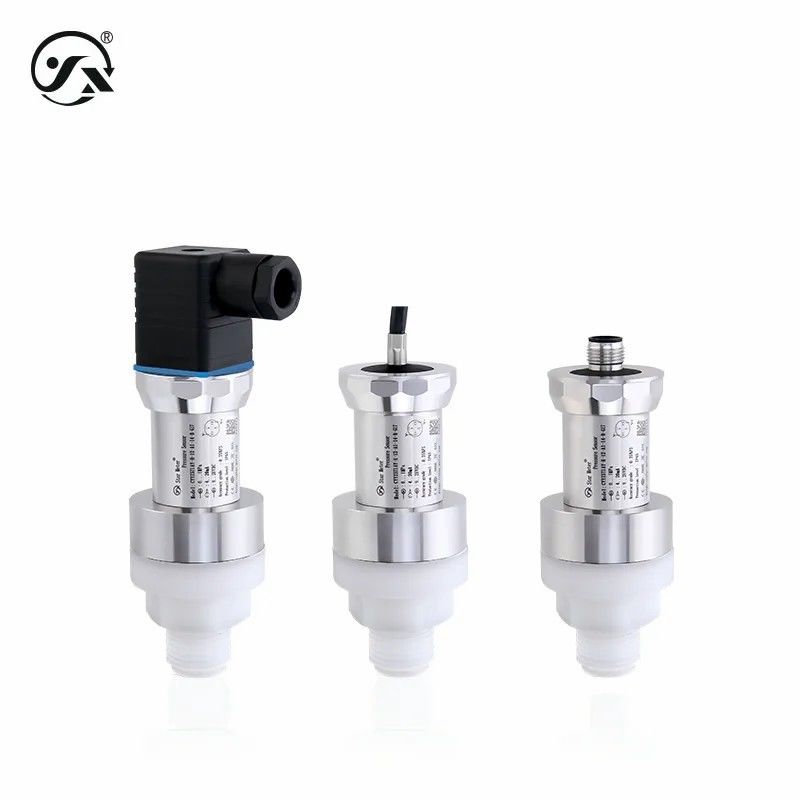

The CYYZ571AY anti-corrosion pressure transmitter is equipped with a ceramic capacitor core, and its process connection part is made of PVDF material, which is suitable for measuring corrosive gases or liquids, and has the characteristics of high precision, high pressure resistance and vacuum resistance. And with explosion-proof function optional.



Basic parameters
Measuring medium Liquid or gas (compatible with contact materials)
Pressure range -0.1~0~7MPa (see range selection table class=”info” for details)
Pressure mode Gauge pressure, absolute pressure, negative pressure
Medium temperature -40~85℃
Connection time 20ms
Stable class=”info” performance ±0.1%FS/year
Temperature drift ±0.01%FS/℃ (within temperature compensation range) ±0.05%FS/℃ (outside temperature compensation range)
Temperature compensation -20~80℃
Explosion-proof type Intrinsically safe Ex ia ⅡC T6 Ga (4~20mA output only)
Protection level IP65
Note/The above protection level refers to the level achieved after the electrical connection is complete.
Accuracy level 0.1%FS, 0.25%FS
Response frequency Analog signal output ≤30Hz Digital signal output ≤5Hz
Resolution Analog output 0.01%FS, digital output 0.05%FS
Overall weight ≈381g
Load characteristics
Voltage Type ≥10kΩ
Current Type Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH (no condensation and no condensation)
Overpressure and explosion
Overload pressure 0.2MPa, 0.27MPa, 0.33MPa, 0.53MPa, 0.67MPa, 1.2MPa, 1.67MPa, 2.67MPa, 4MPa, 7MPa, 0.27MPa, 0.33MPa, 0.53MPa, 0.67MPa, 1.2MPa
Burst pressure 0.3MPa, 0.4MPa, 0.5MPa, 0.8MPa, 1MPa, 1.8MPa, 2.5MPa, 4MPa, 6MPa, 8MPa, 0.4MPa, 0.5MPa, 0.8MPa, 1MPa, 1.8MPa
Overall material
Diaphragm Ceramic (contacting the measured medium)
Process connection PVDF polyvinylidene fluoride (contacting the measured medium)
shell 304 Stainless Steel
Core seal See the pressure and burst chart (contact with the measured medium)
ED Circle Fluorine rubber
Hirschmann connector ABS engineering plastics
Mechanical stability
Vibration resistance 10g (20…2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms, in compliance with IEC60068-2-27 standard
Electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but not working
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
Output Limitation
4-20mA 4mA~20mA
RS485 0~2000
0~10VDC 0.001VDC~10VDC
0~5VDC 0.001VDC~5VDC
1~5VDC 0.001VDC~5VDC
manual
Product Information—Chinese (CN) PDF
Product Information—English (EN) PDF
Product Selection—Chinese (CN) PDF
Product Selection—English (EN) PDF
Installation Instructions—Chinese (CN) PDF
Installation Instructions—English (EN) PDF
Protocol Description—Chinese (CN) PDF
Protocol Description—English (EN) PDF
