CYYZ571CY Anti Corrosion Pressure Transmitter With Ceramic Core

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ571CY
Range: -0.1~0~7MPa (see Range Selection Table For Details) Output: 4~20mA, 4~20mA HART, RS485, 0~10VDC, 0~5VDC, 1~5VDC
Power Supply: 9~28VDC, 15~28VDC, 13~28VDC, 15~24VDC Accuracy: 0.1%FS, 0.25%FS
Highlight:

Anti Corrosion Pressure Transmitter

,

Pressure Transmitter With Ceramic Core

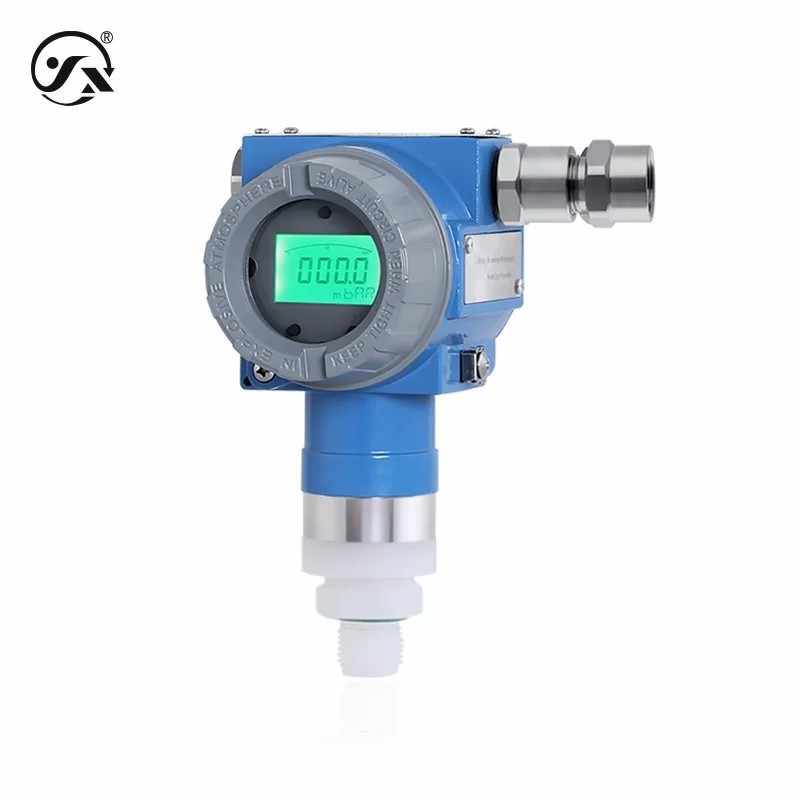

The CYYZ571CY anti-corrosion pressure transmitter is equipped with a ceramic capacitor core, and its process connection part is made of PVDF material, which is suitable for measuring corrosive gases or liquids, and has the characteristics of high precision, high pressure resistance and vacuum resistance. And with explosion-proof function optional.



Basic parameters
Measuring medium Liquid or gas (compatible with contact materials)
Pressure range -0.1~0~7MPa (see range selection table class=”info” for details)
Pressure mode Gauge pressure, absolute pressure, negative pressure
Medium temperature -40~85℃
Connection time 20ms
Stable class=”info” performance ±0.1% FS/year
Temperature drift ±0.01%FS/℃ (within temperature compensation range) ±0.05%FS/℃ (outside temperature compensation range)
Temperature compensation -20~80℃
Explosion-proof type Flameproof type Ex db ⅡC T6 Gb
Flameproof dust type Ex tb IIIC T80℃ Db
Intrinsically safe type Ex ia ⅡC T6 Ga (only 4~20mA/4~20mA HART output)
Dust intrinsically safe type Ex iaD 20 T80℃ (only 4~20mA/4~20mA HART output)
Note/intrinsically safe must be powered by a safety barrier or intrinsically safe power supply
Protection level IP66
Note/The above protection level refers to the level achieved after the electrical connection is complete.
Accuracy level 0.1%FS, 0.25%FS
Header accuracy 0.05%FS LCD (LCD with backlight) display
Response frequency Analog signal output ≤30Hz Digital signal output ≤5Hz HART communication ≤10Hz
Overall weight No display ≈ 1.25kg With display ≈ 1.4kg
Resolution Analog output 0.01%FS, digital output 0.05%FS
Load characteristics
Voltage Type ≥10kΩ
Current Type Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
HART Current Type Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH (no condensation and no condensation)
Overpressure and explosion
Overload pressure 0.2MPa, 0.27MPa, 0.33MPa, 0.53MPa, 0.67MPa, 1.2MPa, 1.67MPa, 2.67MPa, 4MPa, 7MPa, 0.27MPa, 0.33MPa, 0.53MPa, 0.67MPa, 1.2MPa
Burst pressure 0.3MPa, 0.4MPa, 0.5MPa, 0.8MPa, 1MPa, 1.8MPa, 2.5MPa, 4MPa, 6MPa, 8MPa, 0.4MPa, 0.5MPa, 0.8MPa, 1MPa, 1.8MPa
Overall material
Diaphragm Ceramic (contacting the measured medium)
Process connection PVDF polyvinylidene fluoride (contacting the measured medium)
shell Die-cast aluminum
Core seal See the pressure and burst chart (contact with the measured medium)
ED Circle Fluorine rubber
Display window ≈6mm explosion-proof glass
Mechanical stability
Vibration resistance 10g (20…2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms, in compliance with IEC60068-2-27 standard
Electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but not working
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
Output Limitation
4-20mA 4mA~20mA
RS485 0~2000
0~10VDC 0.001VDC~10VDC
0~5VDC 0.001VDC~5VDC
1~5VDC 0.001VDC~5VDC
4-20mAHART 3.8mA~22mA
