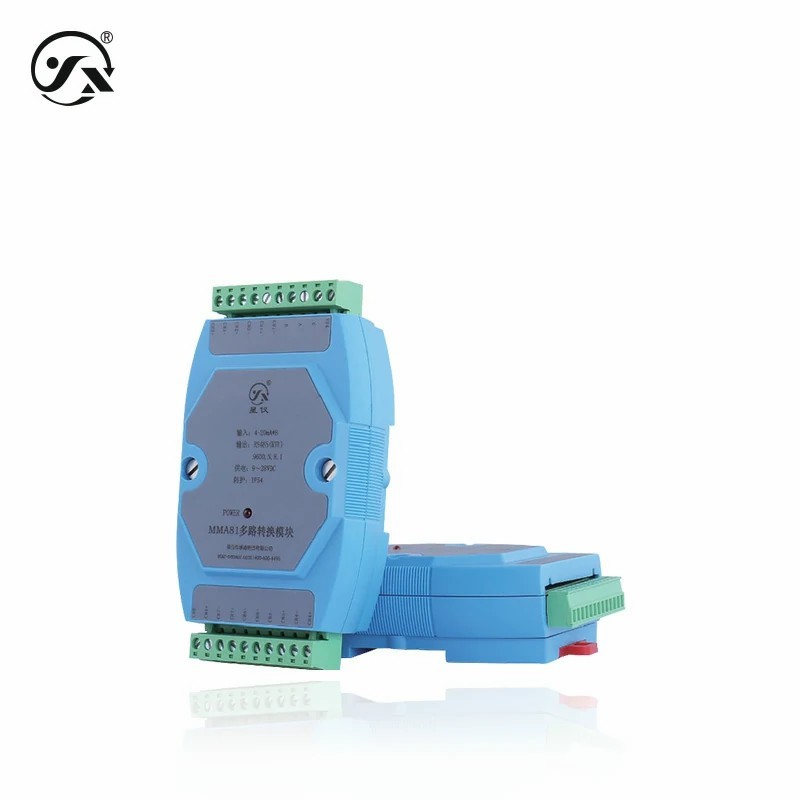

MMA81Y Conversion Module 8 Way 4-20mA To RS485

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: MMA81Y
Input: 4-20mA Output: RS485
Corresponding Data: 4000~20000 Power Supply: 9~28VDC
Conversion Accuracy: ±0.1%FS
Highlight:

8 Way Conversion Module

,

4-20mA Conversion Module

,

RS485 Conversion Module

The MMA81Y conversion module is a 4-20mA to RS485 conversion module with 8 4-20mA two-wire input ports and a standard RS485 (RTU) communication interface as output.



Basic parameters
Input signal 4-20mA
Output signal RS485(RTU)
Corresponding data 4000~20000
Supply voltage 9~28VDC
Maximum Power 0.02*Us(W) (Us=supply voltage)
Protection level IP54
Overall weight ≈118g
Ambient temperature -40~80℃
Conversion accuracy ±0.1%FS
Electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Overall material
shell ABS engineering plastics
Output Limitation
RS485 0~24000
Mechanical stability
Vibration resistance 10g (20…2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms, in compliance with IEC60068-2-27 standard



manual
Product Information—Chinese (CN) PDF
Product Information—English (EN) PDF
Installation Instructions—Chinese (CN) PDF
Installation Instructions—English (EN) PDF
Protocol Description—Chinese (CN) PDF
Protocol Description—English (EN) PDF
