CYYZ561EFY Ceramic Capacitor Sanitary Anti Corrosion Pressure Transmitter 4 20ma

Basic Information
Place of Origin: china
Brand Name: star meter
Model Number: CYYZ561EFY
Range: -0.1~0~2MPa (see Range Selection Table For Details) Output: 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC
Power Supply: 9~28VDC, 15~28VDC, 15~24VDC Accuracy: 0.1%FS, 0.25%FS
Highlight:

Ceramic Capacitor Anti Corrosion Pressure Transmitter

,

Sanitary Anti Corrosion Pressure Transmitter

,

Pressure Transmitter 4 20ma

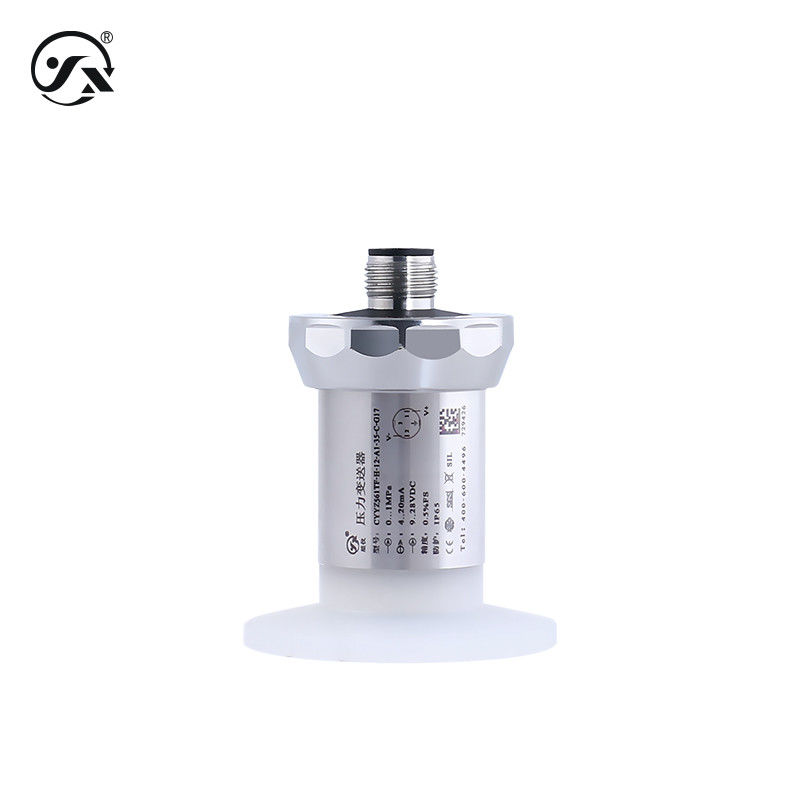

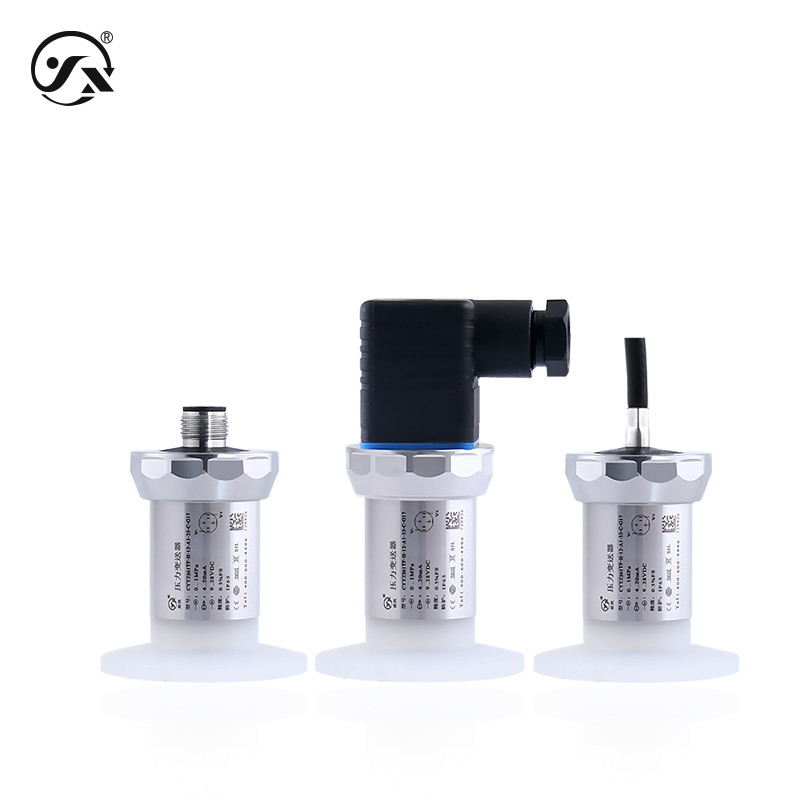

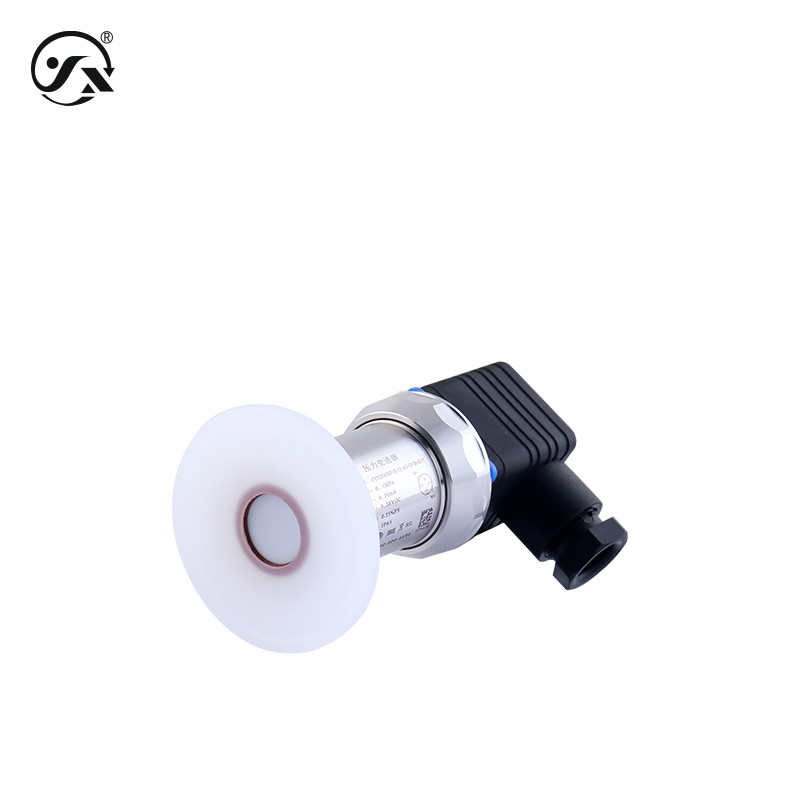

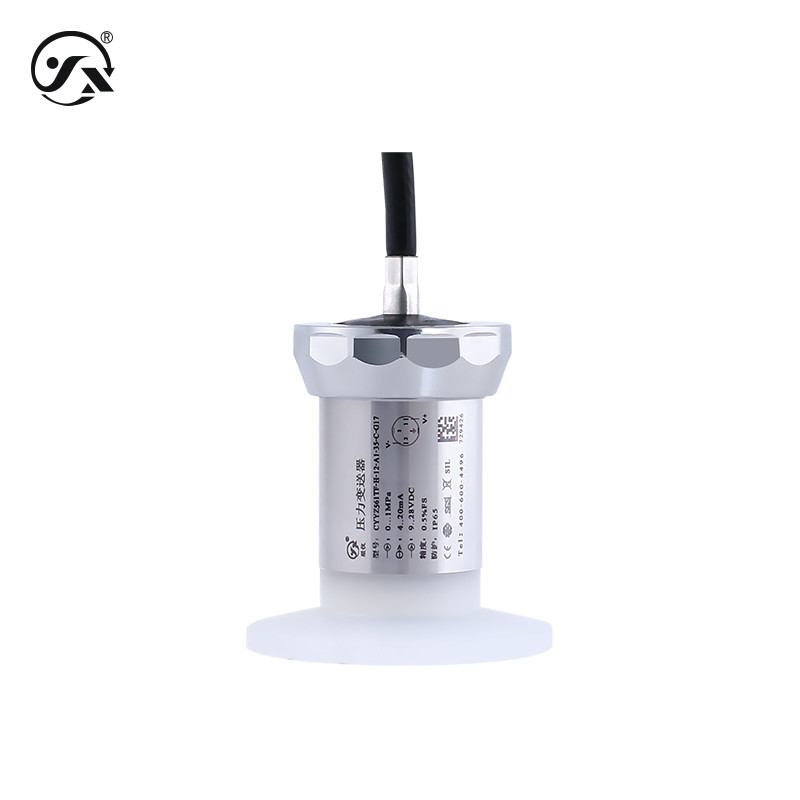

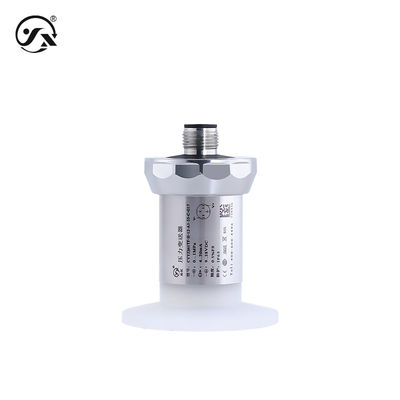

CYYZ561EFY ceramic capacitor sanitary anticorrosive pressure transmitter is suitable for applications with sanitary requirements and corrosive media. The sensing core adopts ceramic capacitance measuring element, which makes it has the characteristics of anti-poking, anti-corrosion, high precision, high stability, high pressure resistance, vacuum resistance, etc. It can measure gas, liquid, fluid or medium with particles. It can measure gas, liquid, fluid or medium with particles. Explosion-proof function is optional.



Measuring medium Gas, liquid or fluid (compatible with contact materials)
Pressure range -0.1~0~2MPa (see range selection table for details)
Pressure mode Gauge pressure, absolute pressure, negative pressure
Medium temperature -40~85℃
Connection time 20ms
Stable performance ±0.1% FS/year
Temperature drift ±0.01%FS/℃ (within temperature compensation range) ±0.05%FS/℃ (outside temperature compensation range)
Temperature compensation -20~80℃
Explosion-proof type Intrinsically safe Ex ia ⅡC T6 Ga (4~20mA output only)
Protection level IP65
Note: The above protection level refers to the level achieved after the electrical connection is complete.
Accuracy level 0.1%FS, 0.25%FS
Response frequency Analog signal output ≤30Hz Digital signal output ≤5Hz
Resolution Analog output 0.01%FS, digital output 0.05%FS
Overall weight ≈160g
Output power supply
4~20mA 9~28VDC, 15~24VDC (intrinsically safe)
RS485 9~28VDC
0~10VDC 15~28VDC
0~5VDC 9~28VDC
1~5VDC 9~28VDC
Maximum Power
4~20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
0~10VDC ≤0.008Us(W)
0~5VDC ≤0.008Us(W)
1~5VDC ≤0.008Us(W)
Load characteristics
Voltage Type ≥10kΩ
Current Type Load ≤{(Us-7.5)÷0.02}Ω
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH (no condensation and no condensation)
Overpressure and explosion
Overload pressure 0.27MPa, 0.33MPa, 0.53MPa, 0.67MPa, 1.2MPa, 1.67MPa, 2.67MPa, 4MPa, 2.67MPa
Burst pressure 0.4MPa, 0.5MPa, 0.8MPa, 1MPa, 1.8MPa, 2.5MPa, 4MPa, 6MPa, 4MPa
Overall material
Diaphragm Al2O3 ceramics (contacting the measured medium)
Process connection PVDF polyvinylidene fluoride (contacting the measured medium)
shell 304 Stainless Steel
Core seal See the pressure and burst chart (contact with the measured medium)
Hirschmann connector ABS engineering plastics
Mechanical stability
Vibration resistance 10g (20…2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms Comply with IEC60068-2-27 standard
Electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but not working
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
Output Limitation
4~20mA 4mA~20mA
RS485 0~2000
0~10VDC 0.001VDC~10VDC
0~5VDC 0.001VDC~5VDC
1~5VDC 0.001VDC~5VDC
