Range: | -0.1~0~6MPa | Output: | 4~20mA, 0~5VDC |
---|---|---|---|
Power Supply: | 9~32VDC | Accuracy: | 0.5%FS |
Name: | Pressure Transmitter Sensor |

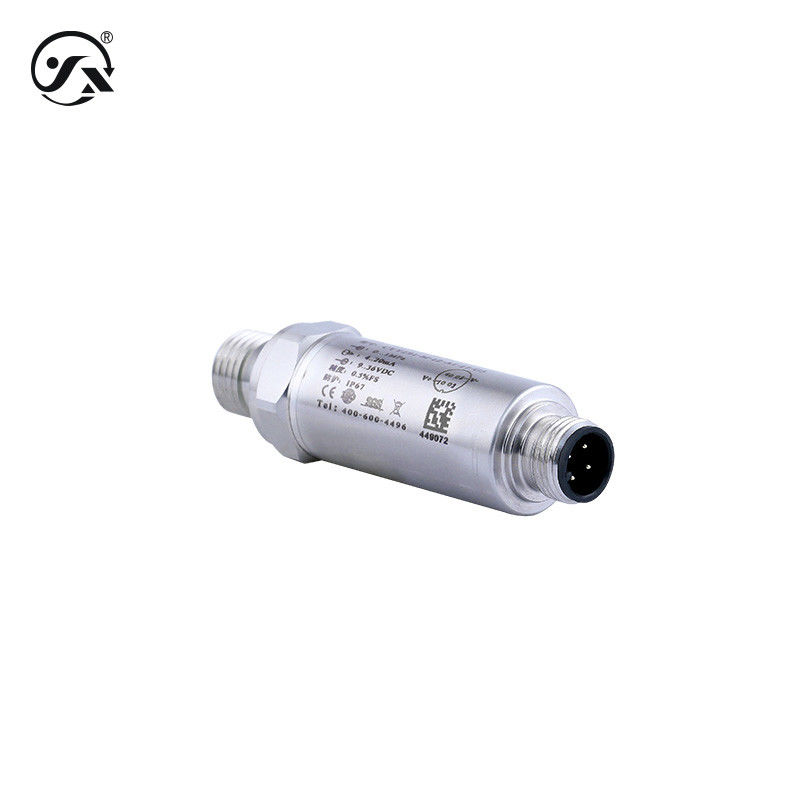

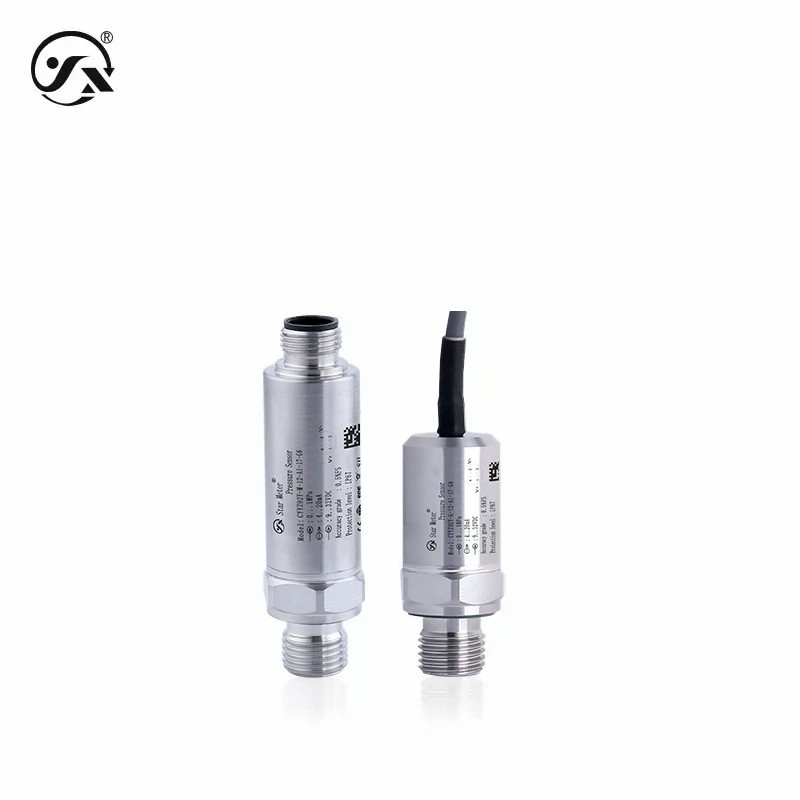

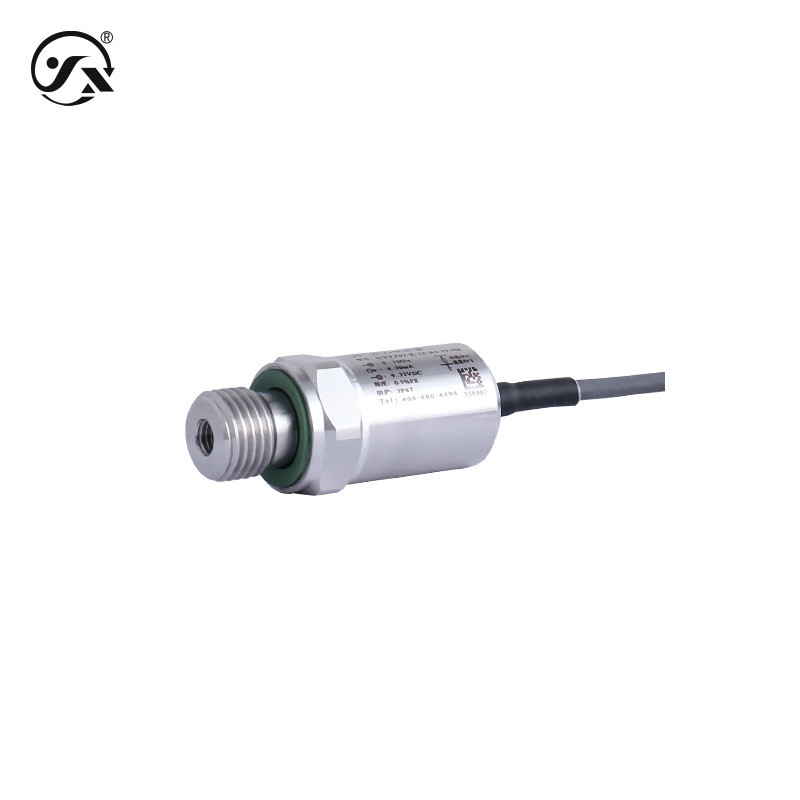

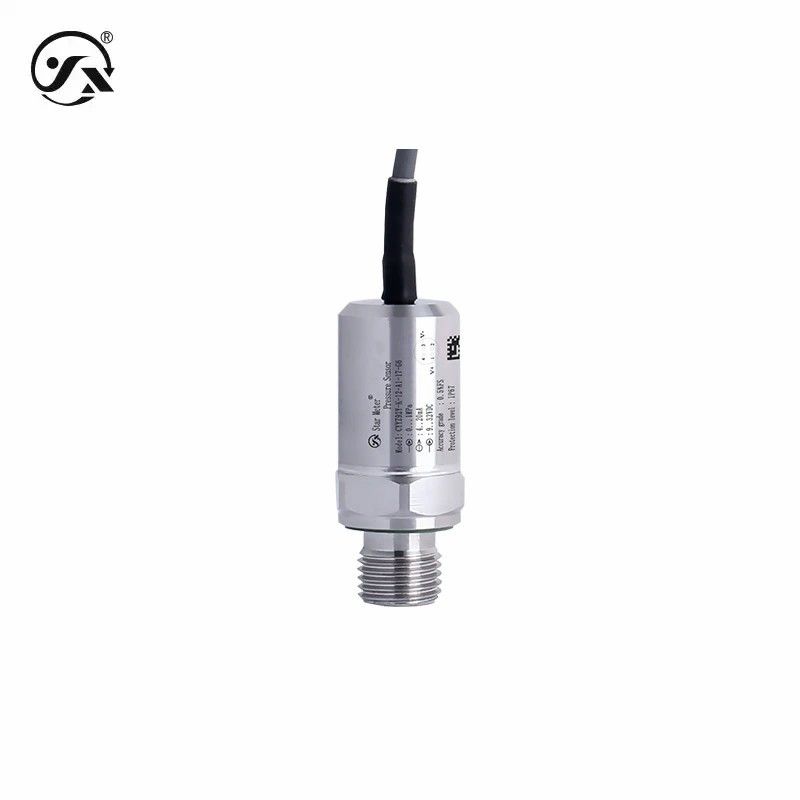

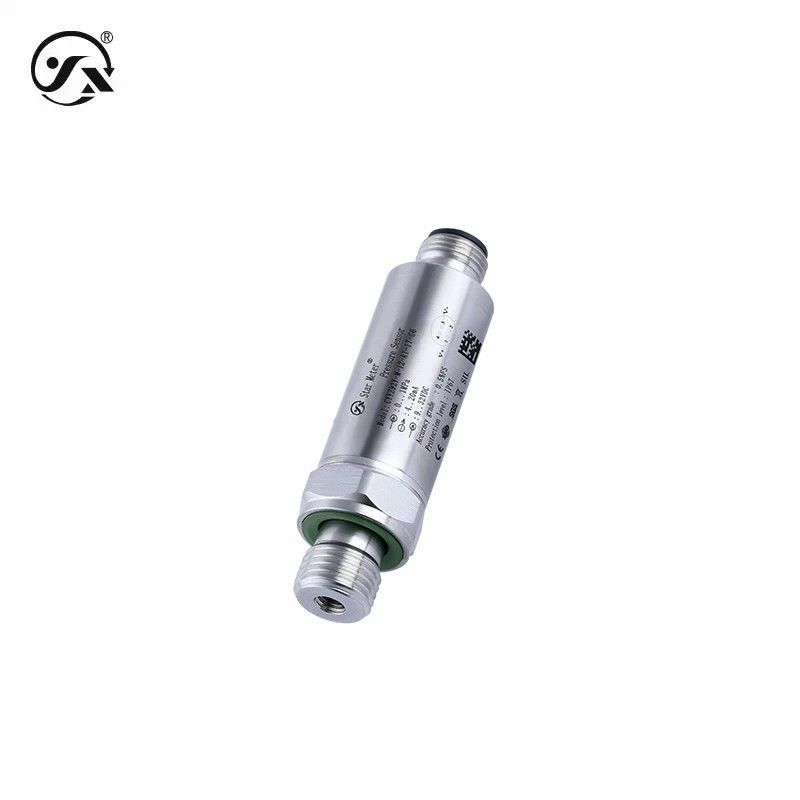

CYYZ92Y pressure transmitter is carefully designed and has absolute, gauge and negative pressure types. Its compact structure is suitable for industrial equipment with limited installation space.
Base parameters | |
Measuring medium | Liquid or gas (compatible with contact material) |
Pressure range | -0.1~0~6MPa (see selection table for details) |
Pressure mode | Absolute, gauge, negative |
Output signal | 4~20mA,0~5VDC |
Power supply range | 9~32VDC |
Media temperature | -40~85℃ |
On-time | 20ms |
Response frequency | Analog signal output≤ 20Hz |
Accuracy class | 0.5%FS (including repeatability≤0.035%FS, hysteresis≤0.05%FS) Reference conditions: temperature 15~25°C, atmospheric pressure 86~106kPa, humidity 45~75%RH |
Temperature compensation | -10~70℃ |
Stable performance | ± 0.2% FS/year |
Temperature drift | ±0.02%FS/°C (temperature compensated) |
Degree of protection | IP67 Note: The above protection level refers to the electrical connection achieved after it is complete, and also depends on the electrical connection plug. |
Durable performance | 10X10⁶ times (lower range to upper range cycles) |
Overall weight | ≈60g |
Maximum power | ≤0.02Us(W) Note: Us=Supply voltage |
resolution | 0.02%FS |
Load characteristics | |
Voltage type | ≥10kΩ |
Current type | Load ≤ {(Us-7.5)÷0.02}Ω(Us=Supply voltage) |
Environmental conditions | |
Ambient temperature | -40~85℃ |
Ambient humidity | 0%~95%RH(no condensation, no condensation) |
Overpressure and blasting | |
Overload pressure | 200%FS,200%FS,200%FS,300kPa,480kPa,750kPa,800kPa,1.2MPa 2MPa,3MPa,5MPa |
Burst pressure | 500%FS,500%FS,400%FS,600kPa,900kPa,1.25MPa,2MPa,3MPa,5MPa 9MPa,12.5MPa |
Overall material | |
diaphragm | 316L stainless steel (contact with the medium to be measured) |
Process connection | 304 stainless steel (contact with the medium to be measured) |
enclosure | 304 stainless steel |
Threaded seals | Fluorine glue (contact with the medium to be measured) |
Connector | ABS engineering plastics |
Cable | φ3.2 polyurethane shielded cable |
Mechanical stability | |
Seismic performance | 20g(20… 2000Hz) in accordance with IEC60068-2-6 standard |
Impact resistance | 500g/ms conforms to IEC60068-2-27 standard |
Electrical protection | |
Short-circuit protection | perpetual |
Anti-polarity protection | No damage, but not working |
Insulation resistance | ≥100MΩ 500VDC |
Dielectric strength | 500VAC |
Output limits | |
4-20mA | Output min. 4mA and output max 20mA |
0-5VDC | Output minimum 0.001VDC, output maximum 5VDC |
